Machine-Level Programming I - Basics

Class: CSCE-312

Notes:

Today: Machine Programming I: Basics

• History of Intel processors and architectures
• C, assembly, machine code
• Assembly Basics: Registers, operands, move
• Arithmetic & logical operations

History of Intel processors and architectures

Intel x86 Processors

• Dominate laptop/desktop/server market

• Evolutionary design

  • Backwards compatible up until 8086, introduced in 1978
  • Added more features as time goes on

• Complex instruction set computer (CISC)

  • Many different instructions with many different formats
    • But, only small subset encountered with Linux programs
    • Many different instructions to do the same thing
    • Or same semantics but do different things
  • Hard to match performance of Reduced Instruction Set Computers (RISC)
    • Fun fact: RISC-V is an emerging technology architecture being included by many startups
    • Good idea for other reasons: it is much easier to compile for a simpler instruction set, than for a complex instruction set
  • But, Intel has done just that!
    • In terms of speed.  Less so for low power.
    • Intel matched performance of RISC technology
      • They did a beautiful work
      • They run complex instructions very very fast
      • In terms of speed Intel is better, in terms of power, they are very bad
    • Intel offers background compatibility
      • They own their instruction set

Intel x86 Evolution: Milestones

Name Date Transistors MHz

• 8086 1978 29K 5-10

  • First 16-bit Intel processor.  Basis for IBM PC & DOS
    • About 65 thousand bits
    • Address more than 64 kb was the goal
    • Pointers were two dimensional: made programming a hard thing
  • 1MB address space
  • Just figuring out how to make microprocessors (evolved from video game systems)
  • 8286 was very popular, allowed you to have isolation between process and allowed you to use disk as a backup memory, cool stuff.

• 386 1985 275K 16-33

  • First 32 bit Intel processor , referred to as IA32
    • 10 times as many transistors
    • Gives us nice 4GB address space
  • Introduced a lot of new instructions to the instruction set
  • Added “flat addressing”, capable of running Unix
    • Pointers became a single number that can point to any address
    • It was really hard to program before
  • It made it possible for Linus Torvalds to invent Linux
    • 1991~. Started writing a terminal emulator and ended up writing an operative system.
    • Professor actually emailed Linus Torvalds about a bug, and he responded!
  • Up to 3MB address space (professor experience)
  • 486 actually had a little cashed, a deeper pipeline, and allowed to be a little faster

• Pentium 4E 2004 125M 2800-3800

  • First 64-bit Intel x86 processor, referred to as x86-64
  • They wanted a name that they can trademark.
  • Pentium 4 was an ambitious project, with a pipeline that was
    • Pipeline: each stage does something related to executing instructions
      • ...
      • Recon
      • Execute
      • Memory
      • Write back
      • ...
    • Gives you parallelism

• Core 2 2006 291M 1060-3500

  • First multi-core Intel processor
  • Less ambitious pipeline
  • Increasing the number of transistors exponentially

• Core i7 2008 731M 1700-3900

  • Four cores (our shark machines)
  • Reaching almost 4 GHz

Intel x86 Processors, cont.

• Machine Evolution

  • 386 1985 0.3M
  • Pentium 1993 3.1M
  • Pentium/MMX 1997 4.5M
  • PentiumPro 1995 6.5M
  • Pentium III 1999 8.2M
  • Pentium 4 2001 42M
  • Core 2 Duo 2006 291M
  • Core i7 2008 731M

• Added Features

  • Instructions to support multimedia operations
    • Do vector operations on not just integers but also floats
  • Instructions to enable more efficient conditional operations
  • Transition from 32 bits to 64 bits
    • So that we can have a more comfortable reasonable address space
  • More cores

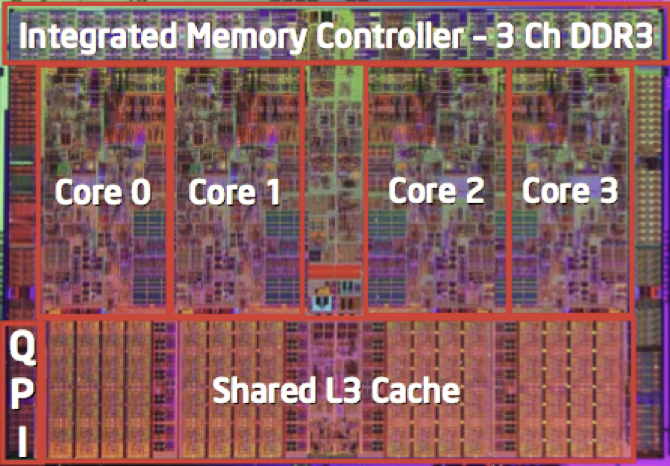

• Core i7 photo
• l1 chache: Within these cores there is an l1 cache for data, another one for instructions, etc.
• l2 cache is a little slower but still very fast
• l3 cache, if you do not find something in the l2 cache you still have the l3 cache to check
  • Allows the cores to communicate between each others
• Parallel processing occurs this way

2015 State of the Art

• Core i7 Broadwell 2015

• Desktop Model

  • 4 cores
  • Integrated graphics
  • 3.3-3.8 GHz
  • 65W

• Server Model

  • 8 cores
  • Integrated I/O
  • 2-2.6 GHz
  • 45W

x86 Clones: Advanced Micro Devices (AMD)

• Historically
  • AMD has followed just behind Intel
  • A little bit slower, a lot cheaper
  • Pushes Intel to innovate by being a very strong competitor
    • Sometimes their products are better and cheaper, sometimes not reliable, but they get more and more reliable
  • Itanium = super powerful computer back in those days
    • Incompatible with x86
  • AMD extended the old intel x86 instruction set to handle 64 bits
• Then
  • Recruited top circuit designers from Digital Equipment Corp. and other downward trending companies
  • Built Opteron: tough competitor to Pentium 4
  • Developed x86-64, their own extension to 64 bits
    • You can run your 32-bit programs without changing anything, and whenever you ready change to a 64-bit program.
    • This was designed by AMD and works with both intel and AMD processors
• Recent Years
  • Intel got its act together
    • Leads the world in semiconductor technology
  • AMD has fallen behind
    • Relies on external semiconductor manufacturer

Intel's 64-Bit History

...

C, assembly, machine code

Definitions

• Architecture: (also ISA: instruction set architecture) The parts of a processor design that one needs to understand or write assembly/machine code.

  • It is the interface, the instructions themselves, machine language encodings, addressing, which registers are available, how is memory accessed, that is all in the ISA.
  • It is not updated very often, because they would have to support it in many different interfaces
  • Examples:  instruction set specification, registers.

• Microarchitecture: Implementation of the architecture.

  • This is the circuits, transistors, the algorithms to implement this architecture.
  • Examples: cache sizes and core frequency.
    • How big should the cache, what to keep, and what to throw away.
    • How fast can we clock this, depends on the microarchitecture.
    • How to make the processor more efficiently

• Code Forms:

  • Machine Code: The byte-level programs that a processor executes
    • Very hard to read and understand
  • Assembly Code: A text representation of machine code
    • Text level representation of machine language
    • More or less english looking instructions

• Example ISAs:

  • Intel: x86, IA32, Itanium, x86-64 (AMD)
  • ARM: Used in almost all mobile phones
    • There is RISC5, PowerPC, IBM360, Motorolla 6800 (Apple PC) etc...

Assembly/Machine Code View

Programmer-Visible State

• PC: Program counter
  • Address of next instruction
    • Contains the address in the next instruction in memory that should be executed
      • Usually: "get the next few bytes"
      • Assembles an isntruction
  • Called “RIP” (x86-64)

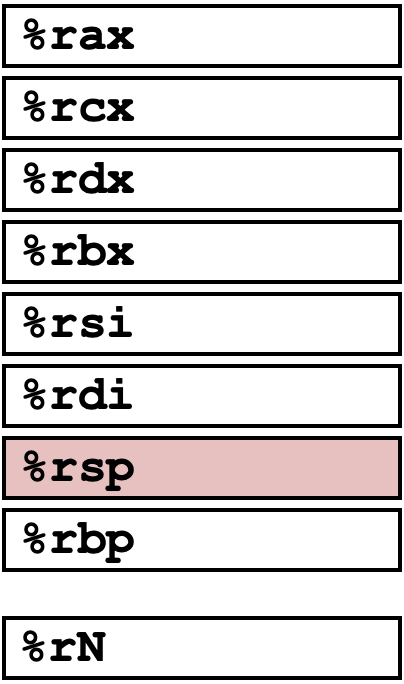

• Register file
  • Heavily used program data
  • Old usage of the word file: just means "an array of things"
  • Contains the registers rax, rei, rxp, etc...
• Condition codes
  • Store status information about most recent arithmetic or logical operation
  • Used for conditional branching
  • Like registers but they are 1 bit, they just store conditions
  • Enable control flow in our program
• Memory
  • Byte addressable array
    • Memory gives back instructions given at a requested address
  • Code and user data
  • Stack to support procedures

Turning C into Object Code

• Code in files  p1.c p2.c
• Compile with command:  gcc –Og p1.c p2.c -o p
  • Use basic optimizations (-Og) [New to recent versions of GCC]
  • Put resulting binary in file p
• Object code
  • Machine language stored in a file to be used

• Take programs
• Compile them into .s files (assembly files)
• Assembler
  • Command line tool that will assemble programs into object code.
  • Converts .s files into .o files (object files)
  • Not yet ready to be executed yet
• Link them together into the executable program p
  • Takes all machine files and links them together, fills in all the missing information
  • Libraries are included here
  • Will link the .o files
• Executable program
  • We call p a binary
  • Can be run straight from the command line

Compiling into Assembly

C Code (sum.c)

long plus(long x, long y);

void sumstore(long x, long y,
              long *dest)
{
    long t = plus(x, y);
    *dest = t;
}

• Needlessly complicated but doing it to illustrate how things work

Obtain with command

gcc –O –S sum.c

• Compile code into machine language code and get the assembly file
• Think of a pipe in Linux, the compiler does this with the next phase of the compiling process, it just passes the output to the next phase.
• Produces file sum.s

Generated x86-64 Assembly

sumstore:
   pushq   %rbx
   movq    %rdx, %rbx
   call    plus
   movq    %rax, (%rbx)
   popq    %rbx
   ret

• rbx is the call safe register

  • Whoever calls this register expects to have the same value that had the last time we call it

• Preserve the value of rbx

• Remember the value of rdx into rbx

• Calls plus, adds two parameters and returns result

  • Will place that sum on the rax register

• Take the value returned by plus and stick it into the place in memory where rbx is pointing

• ret just means return

**Warning****: Will get very different results on other machines due to different versions of gcc and different compiler settings.

Assembly Characteristics: Data Types

• “Integer” data of 1, 2, 4, or 8 bytes

  • 4 main type of different "Int" data types
  • Data values
    • w means word (2-bytes)
    • l means long word (4-bytes)
    • q means quad word (8-bytes)
  • Addresses (untyped pointers)
  • x86 helps you here, while RISC5 instructions set usually don't

• Floating point data of 4, 8, or 10 bytes

• Code: Byte sequences encoding series of instructions

  • Some instructions are shorter, others are longer
  • In RISC5, all instructions are the same size
  • x86 has dynamic instruction sizes, does not waste that much

• No aggregate types such as arrays or structures

  • Just contiguously allocated bytes in memory
  • There is no structs, class, etc.
  • You have to write everything yourself or with help of the compiler.
  • There is no way to name fields like you do in C/C++

Assembly Characteristics: Operations

• Perform arithmetic function on register or memory data

  • With x86 you can do accessing memory and arithmetic in one single instruction
    • Makes it more convenient and easier to program

• Transfer data between memory and register

  • Load data from memory into register
  • Store register data into memory
  • You can't say I want to take this "memory and put this into this memory" - this is not how it works

• Transfer control

  • Unconditional jumps to/from procedures
    • Jump to another part of the program or function
  • Conditional branches
  • The word "jump" and "branch" in computer architecture means the same exact thing
    • Synonyms that we use and switch back and forth
    • We do a "jump" if some condition is true.
      • Think of if statements.

Object Code

Code for sumstore

0x0400595:
   0x53
   0x48
   0x89
   0xd3
   0xe8
   0xf2
   0xff
   0xff
   0xff
   0x48
   0x89
   0x03
   0x5b
   0xc3

• Total of 14 bytes

• Each instruction 1, 3, or 5 bytes

• Starts at address 0x0400595

• Assembler

  • Translates .s into .o
  • Binary encoding of each instruction
  • Nearly-complete image of executable code
  • Missing linkages between code in different files
    • It gives an executable that is mostly complete, but still it is missing some stuff, the dynamic linker fills in all of these gaps.

• Linker

  • Resolves references between files
  • Combines with static run-time libraries
    • E.g., code for malloc, printf
  • Some libraries are dynamically linked
    • Linking occurs when program begins execution

Machine Instruction Example

C Code

*dest = t:

• Store value t where designated by dest

Assembly

movq %rax, (%rbx)

• Move 8-byte value to memory
  • Quad words in x86-64 parlance
• Operands:
  • t: Register %rax
  • dest: Register %rbx
  • *dest: Memory M[%rbx]
• Why the parenthesis on (%rbx)
  • Mean "in direction"
  • Means not rbx itself but what rbx points to
    • The type pointed to is on the q in the movq instruction

Object Code

0x40059e:  48 89 03

• 3-byte instruction
• Stored at address 0x40059e
• If we looked at a similar instruction, it will differ in just a few bits that would be the differences in the instructions.
• Some of these bytes mean mov1, some of them mean rax, rbx, and some of them mean move in direction (parenthesis, etc...)
  • All of that is encoded in that 3-byte sequence
    • In ARM or RISC5 it will take 4 bytes
    • In x86 instructions can be from 1 to very long, they usually give you less than 4 bytes (saves space)
      • We can fit more programs into the cache

Disassembling Object Code

Disassembled

0000000000400595 <sumstore>:
  400595:  53               push   %rbx
  400596:  48 89 d3         mov    %rdx,%rbx
  400599:  e8 f2 ff ff ff   callq  400590 <plus>
  40059e:  48 89 03         mov    %rax,(%rbx)
  4005a1:  5b               pop    %rbx
  4005a2:  c3               retq

• You can figure out from the context wether there should be a q or not in front of instructions
• In retq somebody made the opposite decision.

Disassembler
objdump –d sum

• Useful tool for examining object code
• Analyzes bit pattern of series of instructions
• Produces approximate rendition of assembly code
  • Reads file and disassemble the executable portions of your code and shows it to you in assembly language
  • It will not have the labels of your variables and stuff, but it will be something you can more or less read
• Can be run on either a.out (complete executable) or .o file
  • Recommendation: gdb/ldb debugger gives you an interactive environment where you can run your program and debug it using breakpoints, and other tools.
  • Lets you examine data
  • This debugger also includes a disassembler.
    • Instead of showing you C code, it will show you the assembly language it disassembles.
    • This is where you get to see how your code is being interpreted by the assembler.

Alternate Disassembly

Object

0x0400595:
   0x53
   0x48
   0x89
   0xd3
   0xe8
   0xf2
   0xff
   0xff
   0xff
   0x48
   0x89
   0x03
   0x5b
   0xc3

Dissasembly

Dump of assembler code for function sumstore:
 0x0000000000400595 <+0>: push   %rbx
 0x0000000000400596 <+1>: mov    %rdx,%rbx
 0x0000000000400599 <+4>: callq  0x400590 <plus>
 0x000000000040059e <+9>: mov    %rax,(%rbx)
 0x00000000004005a1 <+12>:pop    %rbx
 0x00000000004005a2 <+13>:retq

• Within gdb Debugger
  • gdb sum
  • disassemble sumstore
    • Disassemble procedure
    • Will give you the disassembled code
  • x/14xb sumstore
    • Examine the 14 bytes starting at sumstore

What Can be Disassembled?

% objdump -d WINWORD.EXE

WINWORD.EXE:   file format pei-i386

No symbols in "WINWORD.EXE".
Disassembly of section .text:

30001000 <.text>:
30001000:  55             push   %ebp
30001001:  8b ec          mov    %esp,%ebp
30001003:  6a ff          push   $0xffffffff
30001005:  68 90 10 00 30 push   $0x30001090
3000100a:  68 91 dc 4c 30 push   $0x304cdc91

• Anything that can be interpreted as executable code
• Disassembler examines bytes and reconstructs assembly source

Reverse engineering forbidden by Microsoft End User License Agreement

• Can you disassemble Microsoft Word?
  • Yes you can if you have access to the executable
  • But you are not supposed to if you agree to the liscsence agreement.
• May be needed when finding vulnerabilities
  • Check: Reverse Engineering courses
  • Disassembly process is used often here

Assembly Basics: Registers, operands, move

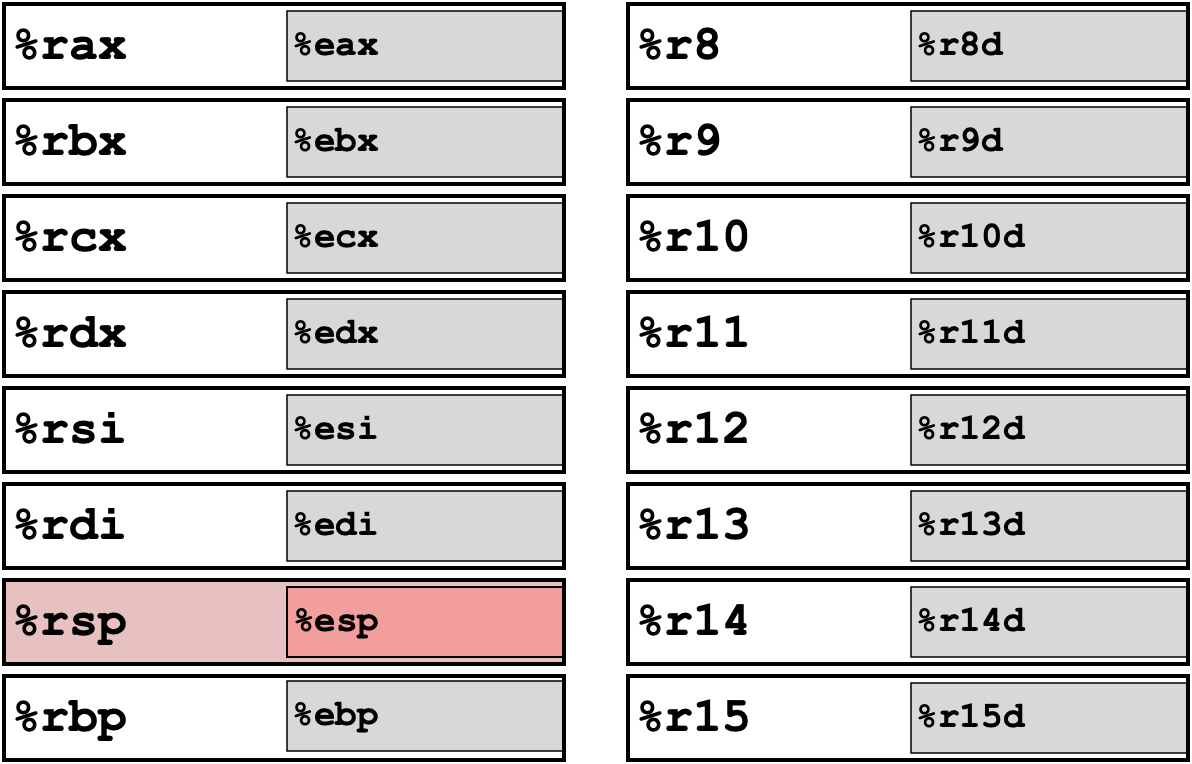

x86-64 Integer Registers

• Can reference low-order 4 bytes (also low-order 1 & 2 bytes)
• Example:
  • rax is the 64-bit version of the 32-bit eax register
    • You can still use eax for 32-bit values but if you want you can use rax for longer values
  • ax - 16-bytes
  • ah - higher order byte
  • al - lower order byte
• Names don't mean anything except for a couple
  • rsp = stack pointer
    • Structure in memory used for passing parameters and know when to return procedures
    • Parameters can be passed on the stack, local variables are also stored in the stack and removed when they are no longer used.
    • Needs to be pointing to some memory that represents the top of the stack
  • rbp = frame pointer
    • Points to the beginning of the local variable storage for the current procedure (the procedure you are now)
    • Store things like local variables or temporary variables
    • Everything is always at a constant offset from the frame pointer

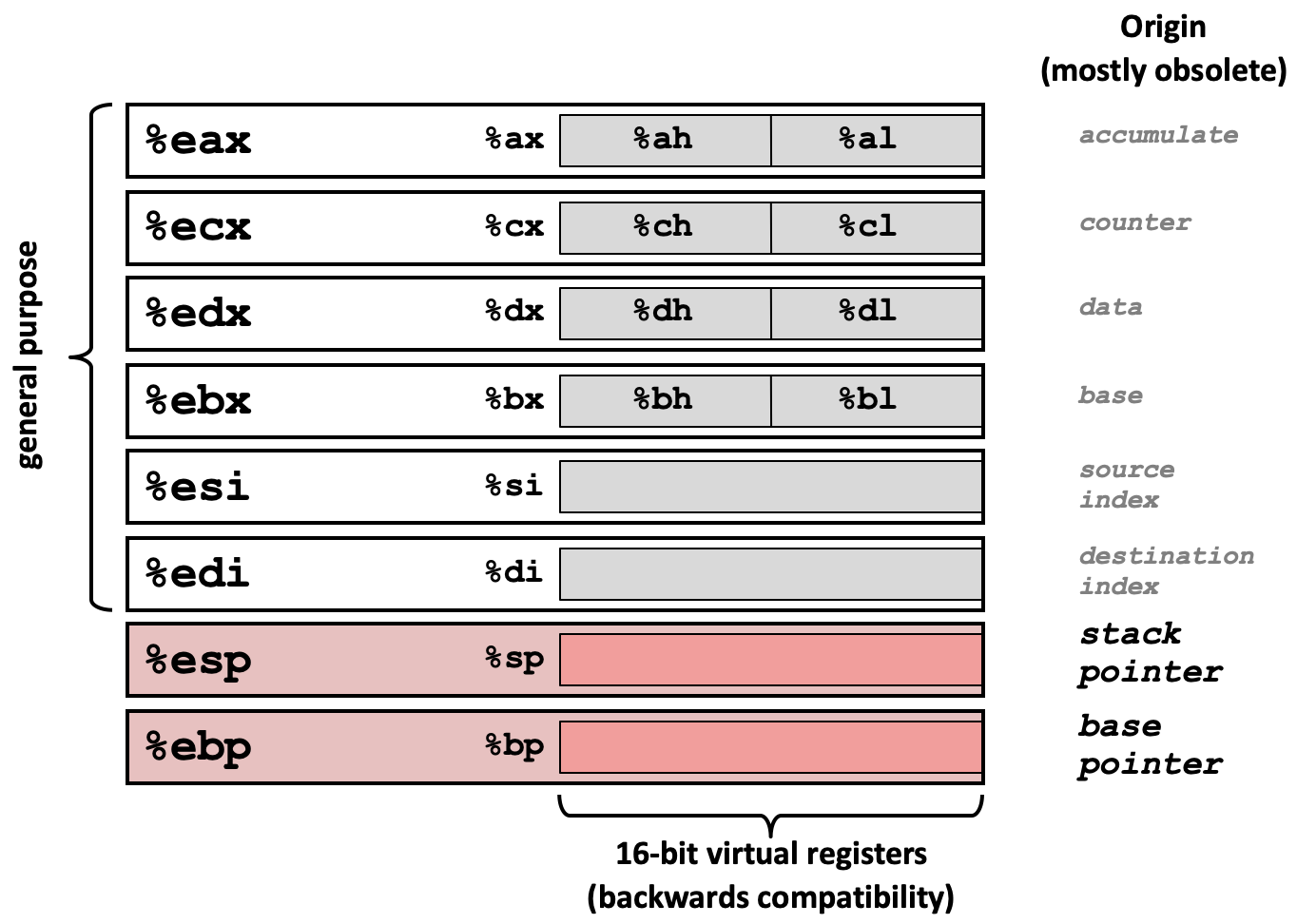

Some History: IA32 Registers

• These are the 32-bit versions of the registers
• Note: most instructions can use any register, seen later
• Where do names come from:
  • ax: accumulate
  • cx: counter
  • dx: data
  • bx: base (for an array)
  • ...

Moving Data

• Moving Data

  • movq <Source>, <Dest>:
    • Moves data
    • Very general instruction
    • Coding is different for the different kind of things that it can do

• Operand Types (expression after the name of the instruction)

  • Immediate: Constant integer data
    • Example: $0x400, $-533
    • Like C constant, but prefixed with ‘$’
    • Encoded with 1, 2, or 4 bytes
      • If a constant doesn't fit in 4-bytes, as many do, the assembler has to split it up into 2 instructions.
  • Register: One of 16 integer registers
    • Example: %rax, %r13
    • But %rsp reserved for special use
      • You can use it as a source or destination, but it comes with side effects. You have to be aware of what exactly %rsp is doing
    • Others have special uses for particular instructions
  • Memory: 8 consecutive bytes of memory at address given by register
    • Simplest example: (%rax)
      • Instead of consider the value of rax, consider the memory pointed by it
    • Various other “address modes”
    • Means: "use this register as an address"

movq Operand Combinations

Cannot do memory-memory transfer with a single instruction

Source

• Immediate
• Register
• Memory

Destination

• Regular

• Memory

• Versatile useful instructions

• Basically just moving data into memory and out of memory

• We have a limited number of registers so we need a tool to interact with memory efficiently

Simple Memory Addressing Modes

• Normal (R) Mem[Reg[R]]

  • Register R specifies memory address
  • Aha! Pointer dereferencing in C

    movq (%rcx),%rax


    • Move what %rcx points to into %rax
    • A "loading" isntruction

• Displacement D(R) Mem[Reg[R]+D]

  • Register R specifies start of memory region
  • Constant displacement D specifies offset
  • Means: "memory at register + constant"
  • Example + 8
    • 8 bytes beyond rbp
    • "Give me the second element of that array"
    • You can also use it if rbp points to a struct and you want 8 bytes into the struct (element that is 8-bytes pass)
    • In general is used for offsets in structs or objects

    movq 8 (%rbp),%rdx


• rbp poitns to local variables

• Layed out in order

• This is saying: get the second local variable and put it into rdx

• Can be read as: Address = 8 + %rbp, move to %rdx

Example of Simple Addressing Modes

C Code

void swap
   (long *xp, long *yp)
{
  long t0 = *xp;
  long t1 = *yp;
  *xp = t1;
  *yp = t0;
}

Assembly

swap:
   movq    (%rdi), %rax
   movq    (%rsi), %rdx
   movq    %rdx, (%rdi)
   movq    %rax, (%rsi)
   ret

• There is a one to one correspondence between these statements and the ones in the C code

Understanding swap()

void swap
   (long *xp, long *yp)
{
  long t0 = *xp;
  long t1 = *yp;
  *xp = t1;
  *yp = t0;
}

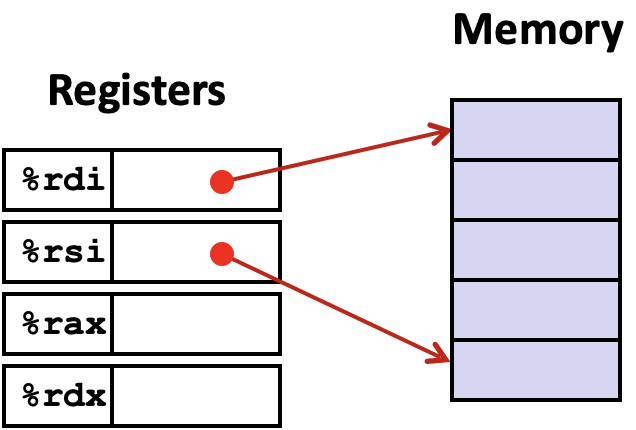

Register	Value
%rdi	    xp
%rsi	    yp
%rax	    t0
%rdx	    t1

swap:
   movq    (%rdi), %rax  # t0 = *xp
   movq    (%rsi), %rdx  # t1 = *yp
   movq    %rdx, (%rdi)  # *xp = t1
   movq    %rax, (%rsi)  # *yp = t0
   ret

• This should be very simple
• Is the same thing we are doing in C, jus tin a different and particular language
• In this case there is a one-to-one correspondence in the number of statements
• In assembly you have to explicitly indicate ret to return
• What if we swapped the first two movq statements? (make the first happen second, and the second happen first)
  • This would not change the result, the order was different but at the end of the procedure you can't tell the difference
  • This means we can do them in parallel, both of them at the same time
  • The processor can figure this out and schedule these instructions to be processed at the same time.

...

Complete Memory Addressing Modes

• Most General Form
  D(Rb,Ri,S) Mem[Reg[Rb]+S*Reg[Ri]+ D]

  • D: Constant “displacement” 1, 2, or 4 bytes
  • Rb: Base register: Any of 16 integer registers
  • Ri: Index register: Any, except for %rsp
  • S: Scale: 1, 2, 4, or 8 (why these numbers?)

• Special Cases

  • Special cases where we omit something (the scale, etc.)
    (Rb,Ri) Mem[Reg[Rb]+Reg[Ri]]
    D(Rb,Ri) Mem[Reg[Rb]+Reg[Ri]+D]
    (Rb,Ri,S) Mem[Reg[Rb]+S*Reg[Ri]]

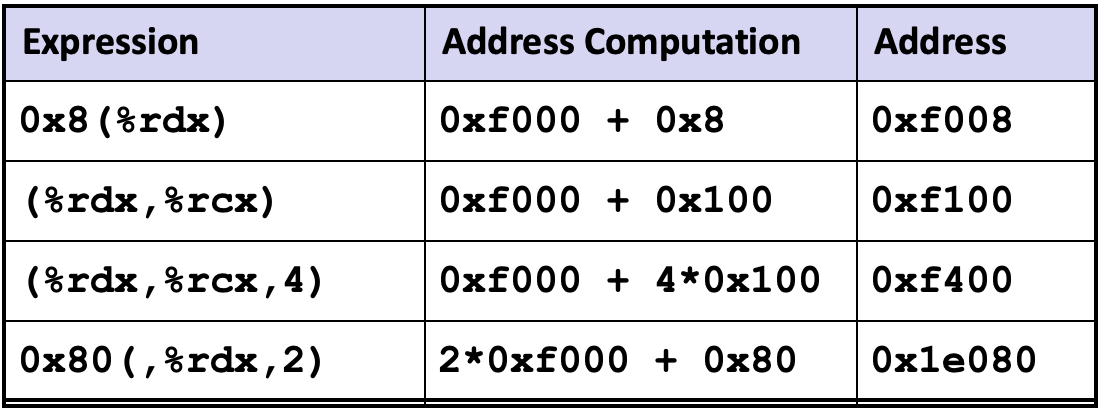

Address Computation Examples

3. 4 bytes each
4. 0x80(,%rdx,2)
   • Ommiting base register
     ...

Arithmetic & logical operations

Address Computation Instruction

• leaq <Src>, <Dst>

  • Src is address mode expression
  • Set Dst to address denoted by expression
  • Rather than moving the data, it computes the address
    • You can use it before you actually store something into an address
    • Then puts this address into the destination register

• Uses

  • Computing addresses without a memory reference
    • E.g., translation of p = &x[i];
  • Computing arithmetic expressions of the form x + k * y
    • k = 1, 2, 4, or 8
    • You can have that displacement if you like

Example

long m12(long x)
{
  return x*12;
}

• Note: return values are always into %rax

Converted to ASM by compiler:

leaq (%rdi,%rdi,2), %rax  # t <- x+x*2
salq $2, %rax             # return t<<2

• Example: combine with shift left, easily lets you multiply by 12
  • Multiply rdi * 3 and put result back in rax
• Was designed to compute addresses, not really arithmetic
  • Condition codes remain whatever they were before
  • This is useful if we want to remember them from a previous instruction
  • A little bit more efficient, an instruction time to complete before you ask it what it did.
    • This is called instruction scheduling

Some Arithmetic Operations

Two Operand Instructions:

  Format	Computation
	addq	Src,Dest	Dest = Dest + Src
	subq	Src,Dest	Dest = Dest − Src
	imulq	Src,Dest	Dest = Dest * Src
	salq	Src,Dest	Dest = Dest << Src	# Also called shlq
	sarq	Src,Dest	Dest = Dest >> Src	# Arithmetic (signed)
	shrq	Src,Dest	Dest = Dest >> Src	# Logical (unsigned)
	xorq	Src,Dest	Dest = Dest ^ Src
	andq	Src,Dest	Dest = Dest & Src
	orq	Src,Dest	Dest = Dest | Src

• Watch out for argument order!
  • Example: subq Src,Dest
    • You are subtracting Src from Dest, not the other way around
  • The Destination is always the thing that is getting modified.
  • Sometimes operations are not commutative
    • e.i. subtraction, shifting, etc.
• No distinction between signed and unsigned int (why?)
  • All of these algorithms produce the same bitwise representation at the end.

One Operand Instructions

incq	Dest	Dest = Dest + 1
decq	Dest	Dest = Dest − 1
negq	Dest	Dest = − Dest    (takes two's complement)
notq	Dest	Dest = ~Dest     (takes one's complement)

• See book for more instructions
• Kind of redundant instructions, but it is a common idiom in coding to add 1 to things.
• A nice but unnecessary thing to have
• Make programs simpler

Arithmetic Expression Example

C code:

long arith
(long x, long y, long z)
{
  long t1 = x+y;
  long t2 = z+t1;
  long t3 = x+4;
  long t4 = y * 48;
  long t5 = t3 + t4;
  long rval = t2 * t5;
  return rval;
}

Assembly code:

arith:
  leaq    (%rdi,%rsi), %rax      # t1
  addq    %rdx, %rax             # t2
  leaq    (%rsi,%rsi,2), %rdx        # (y * 3)
  salq    $4, %rdx               # t4: (y * 3) * 16
  leaq    4(%rdi,%rdx), %rcx     # t5: t3 + t4
  imulq   %rcx, %rax             # rval
  ret

• Tip: you can think of leaq as having 3 operands.
• t2 = result of the previous sum + %rdx
  • Which register holds t2?
    • Answer: %rax
  • The compiler has allocated rax to be t1, and then again to use t2, why? isn't that a bug?
    • No, t1 is no longer going to be used, so we can deallocated.
• leaq (%rsi,%rsi,2), %rdx.
  • Why is it multpliying y times 3?
  • First it multiples by 3, then salq $4, %rdx shifts that result left by 4 positions, which multiplyis it by 16
  • So we get %rdx = y * 3 * 16 which is the same as y * 48.
• Now, which register is allocated to t3?
  • It is not allocated to any register at all, the compiler just knows x+4 is a value
  • You do no need a register, we can just remember this value when doing a computation.
• leaq 4(%rdi,%rdx), %rcx
  • %rcx = x + 4 + t4
• imulq %rcx, %rax
  • Take t2 * t5 and put the result into rax
  • Multiplication is commutative but we would like our result to go into %rax because we want to return that value.

Interesting Instructions

• leaq: address computation
• salq: shift
• imulq: multiplication
  • But, only used once

Understanding Arithmetic Expression Example

Machine Programming I: Summary

• History of Intel processors and architectures
  • Evolutionary design leads to many quirks and artifacts
• C, assembly, machine code
  • New forms of visible state: program counter, registers, ...
  • Compiler must transform statements, expressions, procedures into low-level instruction sequences
• Assembly Basics: Registers, operands, move
  • The x86-64 move instructions cover wide range of data movement forms
• Arithmetic
  • C compiler will figure out different instruction combinations to carry out computation
