Firewall Logs

(OBJ 4.9)

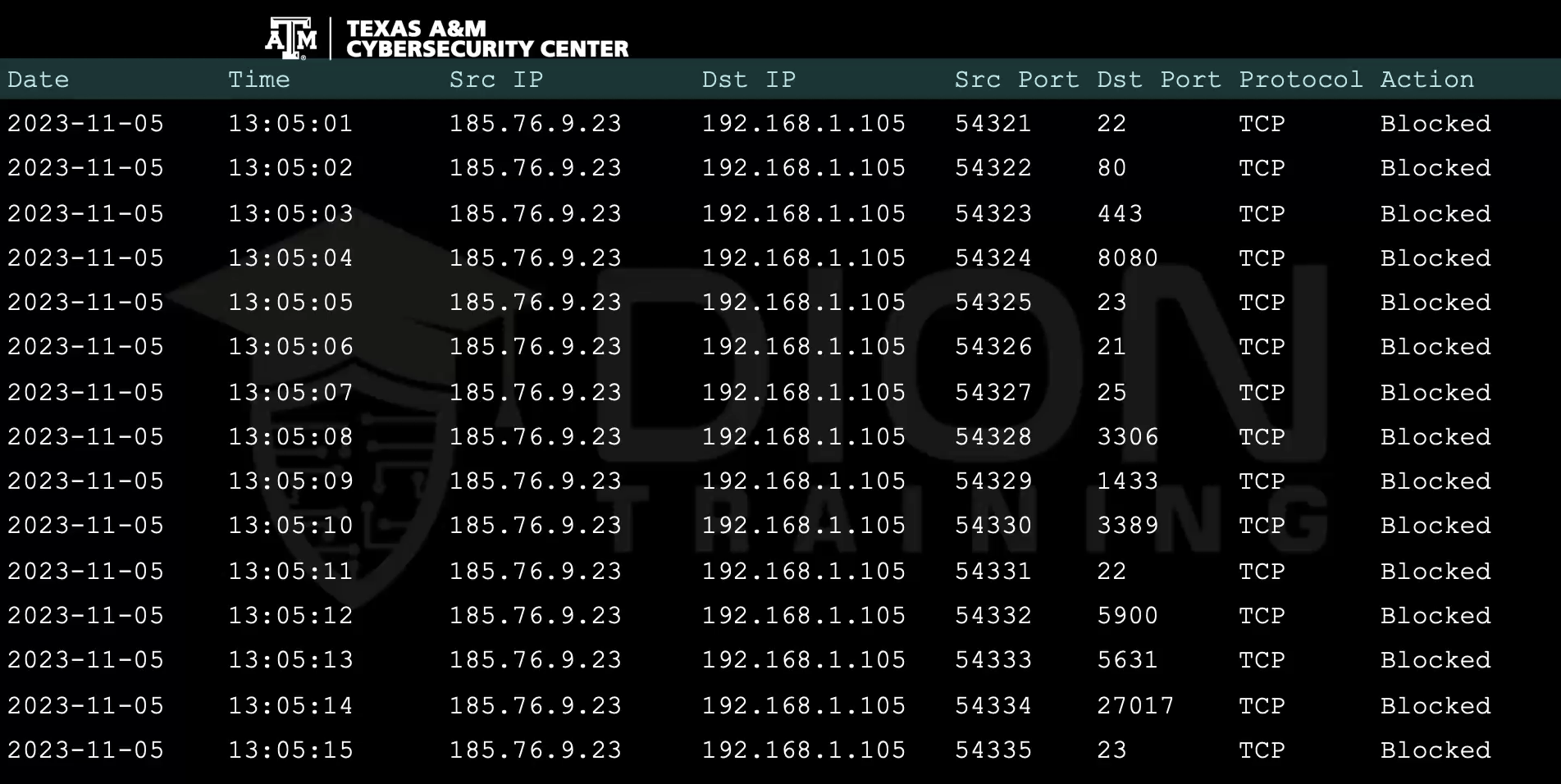

Standard firewall log example

• Note all the sources are the same
• The internal destination server is all the same as well
• Note every single one of these is Blocked
• The Source Port is a random high number port incrementing up one each time
  • Remember these high number ports are being chosen by the OS when they're making an outbound connection to a remote server.
• The first port the source IP tries is port 22, then it tried port 80, then 443, then 8080, 23, 21, etc.
  • Each one is being blocked
• This looks exactly like a Port Scan
  • Our firewall is detecting it and blocking it because all these ports are ones that are closed to the outside world on this particular network.

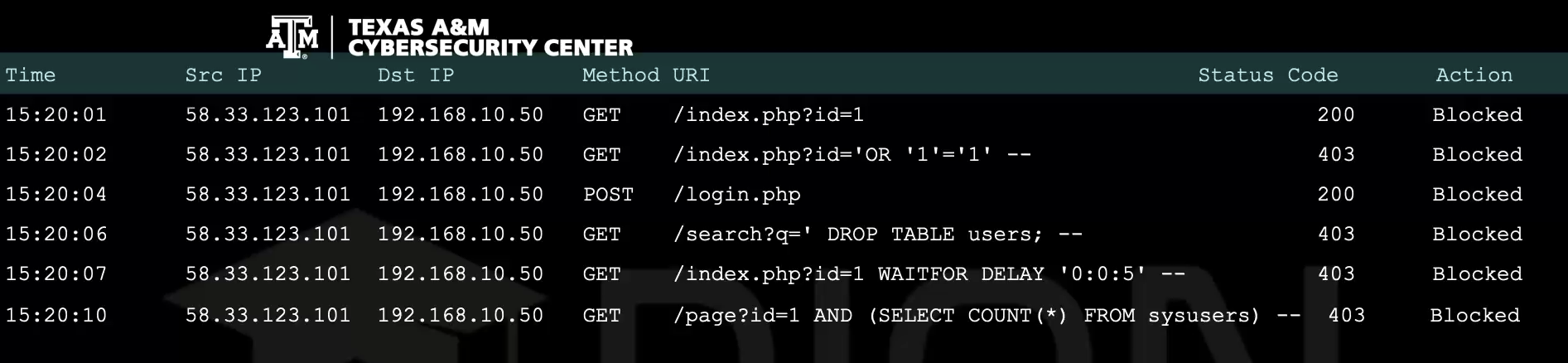

Web application firewall log

• Web server at 192.168.10.50 being connected to by a source IP, which is our remote attacker, at 58.33.123.101.
• It is using a GET method and the URL or web address that's being accessed is everything after that /
  • /index.php?id=1
  • /index.php?id='OR '1'='1' --
  • ...
• Note the Status code
  • 200 = OK status
    • The web server returned a response, but the request was blocked by the firewall and so it intercepted that OK code and didn't send it back to the end user.
  • 403 = Forbidden status
    • Indicates that the server understood the request, but it refuses to authorize it.
    • Blocked by the firewall
• In the third entry we got a POST command being used and we're going to /login.php
• The fourth one is a GET command and we're using /search?q=' DROP TABLE users; --
  • They're trying to actually drop your SQL table
• The fifth line shows a time-based SQL injection
• The last line is actually trying to gather information about the database by injecting an SQL command into it and counting the entry in the database system tables.
