Machine-Level Programming II - Control

Class: CSCE-312

Notes:

Today

• Control: Condition codes
• Conditional branches
• Loops
• Switch Statements

Control: Condition codes

Processor State (x86-64, Partial)

• Information about currently executing program
  • Temporary data
( %rax, … )
  • Location of runtime stack
( %rsp )
  • Location of current code control point
( %rip, … )
  • Status of recent tests
( CF, ZF, SF, OF )

...

Condition Codes (Implicit Setting)

• Single bit registers

  • CF Carry Flag (for unsigned)
  • SF Sign Flag (for signed)
  • ZF Zero Flag
    • If the result of an operation is 0, it is set to true. Very useful.
    • You can compare things by using the Zero Flag.
  • OF  Overflow Flag (for signed)
    • If two’s-complement (signed) overflow happens

• Implicitly set (think of it as side effect) by arithmetic operations

  Example: addq <Src>,<Dest> ↔ t = a+b
  CF set if carry out from most significant bit (unsigned overflow)
  ZF set if t == 0
  SF set if t < 0 (as signed)
  OF set if two’s-complement (signed) overflow
  (a>0 && b>0 && t<0) || (a<0 && b<0 && t>=0)

• Not set by leaq instruction

Condition Codes (Explicit Setting: cmp)

Explicit Setting by Compare Instruction

• cmpq Src2, Src1

• cmpq b,a like computing a-b without setting destination

  • Basically compares to items of data
  • Computes the second operand "minus" the first operand

• CF set if carry out from most significant bit (used for unsigned comparisons)

• ZF set if a == b

• SF set if (a-b) < 0 (as signed)

  • Tells us if result is negative

• OF set if two’s-complement (signed) overflow

  • (a>0 && b<0 && (a-b)<0) || (a<0 && b>0 && (a-b)>0)
  • Not really useful for the compare instruction

Condition Codes (Explicit Setting: test)

Explicit Setting by Test instruction

• testq Src2, Src1

  • testq b,a like computing a&b without setting destination
    • Takes the bitwise "and" of two operands

• Sets condition codes based on value of Src1 & Src2

• Useful to have one of the operands be a mask

• ZF set when a&b == 0

• SF set when a&b < 0

Reading Condition Codes

SetX Instructions

• Set low-order byte of destination to 0 or 1 based on combinations of condition codes
• Does not alter remaining 7 bytes

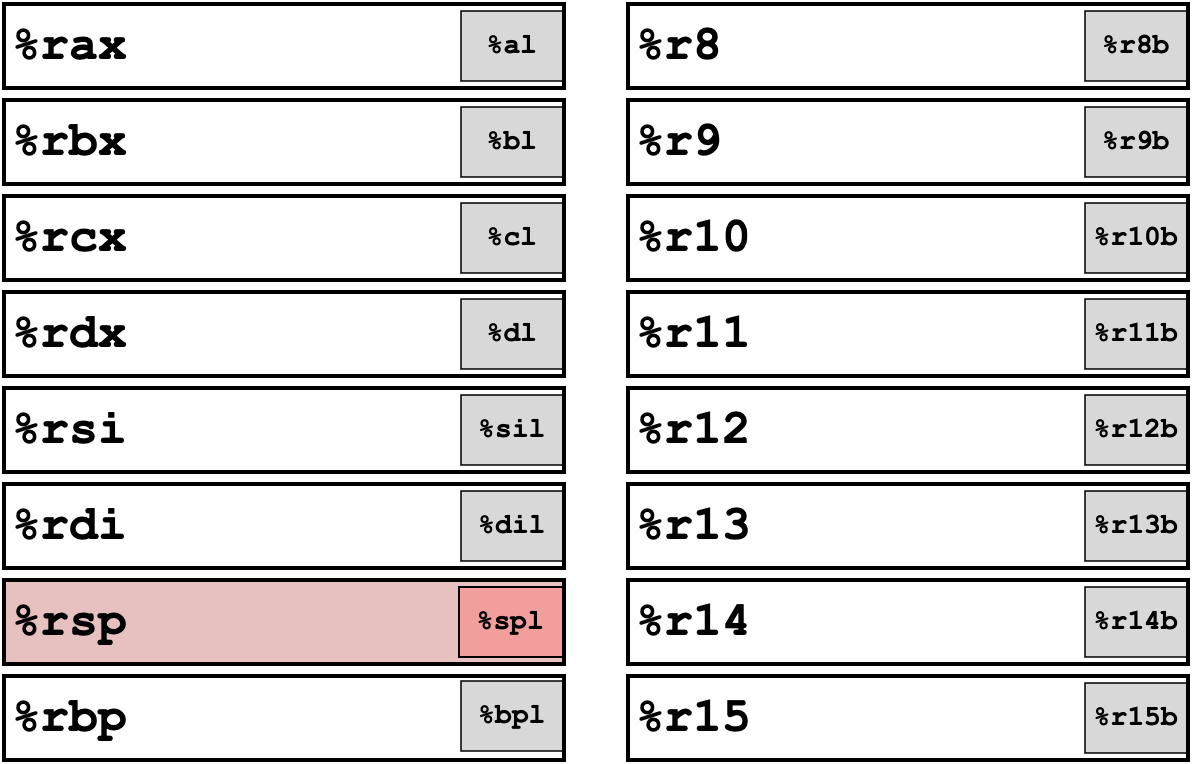

x86-64 Integer Registers

Reading Condition Codes (Cont.)

• SetX Instructions:
  • Set single byte based on combination of condition codes
• One of addressable byte registers
  • Does not alter remaining bytes
  • Typically use movzbl to finish job
    • 32-bit instructions also set upper 32 bits to 0

int gt (long x, long y)
{
  return x > y;
}

cmpq   %rsi, %rdi   # Compare x:y
	setg   %al          # Set when >
	movzbl %al, %eax    # Zero rest of %rax
	ret

• movzbl is converting a 1 byte register to an 8 byte register (64-bit register)

Conditional branches

Jumping

jX Instructions

• Jump to different part of code depending on condition codes

• je
  • jumps if the Zero Flag is true
  • Stands for "jump if equal"
  • Used in comparing two registers
• jne
  • The opposite of jne
  • "Jump if not equal"
• js, jns
  • Check the sign flag
• jg, jge
  • Greater and greater than equal to
• jl, jle
  • Less and less than or equal to
• Above: comparing unsigned numbers
• Below: comparing unsigned numbers?

Conditional Branch Example (Old Style)

Generation

shark> gcc –Og -S –fno-if-conversion control.c

• Make sure that you turn off that optimization flag: –fno-if-conversion
• If you do not use that then you might see a mov statement instead of that jle (jump)
• This is an optimization made by the compiler itself

C code:

long absdiff
  (long x, long y)
{
  long result;
  if (x > y)
    result = x-y;
  else
    result = y-x;
  return result;
}

• Returns the absolute value of the difference between x and y.

Assembly code:

absdiff:
   cmpq    %rsi, %rdi  # x:y
   jle     .L4
   movq    %rdi, %rax
   subq    %rsi, %rax
   ret
.L4:       # x <= y
   movq    %rsi, %rax
   subq    %rdi, %rax
   ret

• jle .L4
  • Saying: if x <= y, then jump over to the .L4 stuff
  • else you continue reading the next instructions, which will simulate the case when x >= y.
  • This is a use of conditional jumping (an interpretation of an if statement)
• cmpq is based on values passed as parameters, when we do a jump we don't know whether we are supposed to do it or not...
  • Hurts the parallelism that we can expect from a program, so if we can avoid them it will be better, and that is what we can do by using conditional loops.

Check pointing:

• Have a program read back in the data from a file that saved the state of the computer (checkpoint the state of the computer)
• It is very costly if we checkpoint and then restore from checkpoint
• Wasting time and energy, we want to avoid doing that, this is where branch predictors make sense
  • Are able to predict which branch will be chosen with high accuracy

Expressing with Goto Code

• C allows goto statement
  • Takes you directly from one part of a C function to another part
  • This is considered harmful: "Goto considered harmful"
  • If you use it, your code quickly becomes unmanageable
  • We replace it with structured programming
  • You may find it more useful once every few years
  • Usually there is a better way to do things than using goto in C
  • But in assembly language all you can use is "goto"
• Jump to position designated by label

Example:

long absdiff
  (long x, long y)
{
    long result;
    if (x > y)
        result = x-y;
    else
        result = y-x;
    return result;
}

We can rewrite the above function as follows:

long absdiff_j
  (long x, long y)
{
    long result;
    int ntest = x <= y;
    if (ntest) goto Else;
    result = x-y;
    goto Done;
 Else:
    result = y-x;
 Done:
    return result;
}

• Note the goto statement in action

• Much harder to follow

• This kind of C is closer to assembly but not yet assembly language

• This is uglier and harder to follow but it may help us understand assembly code and where things came from in assembly.

• Why does Else have a capital E?

  • else is a keyword so we cannot use it here, we need to differentiate the branch somehow.

General Conditional Expression Translation (Using Branches)

C Code

val = Test ? Then_Expr : Else_Expr;

• Be careful when you use this operator in code you want someone else to read, it can be confusing.

val = x>y ? x-y : y-x;

Goto Version

ntest = !Test;
	if (ntest) goto Else;
	val = Then_Expr;
  goto Done;
Else:
  val = Else_Expr;
Done:
	. . .

• Create separate code regions for then & else expressions
• Execute appropriate one

Using Conditional Moves

• Conditional Move Instructions
  • Instruction supports:
    • if (Test) Dest <- Src
  • Supported in post-1995 x86 processors
  • GCC tries to use them
    • But, only when known to be safe
• Why?
  • Branches are very disruptive to instruction flow through pipelines
  • Conditional moves do not require control transfer

C Code

val = Test
   ? Then_Expr
   : Else_Expr;

Goto Version

result = Then_Expr;
  eval = Else_Expr;
  nt = !Test;
  if (nt) result = eval;
  return result;

Conditional Move Example

long absdiff
  (long x, long y)
{
    long result;
    if (x > y)
        result = x-y;
    else
        result = y-x;
    return result;
}

absdiff:
   movq    %rdi, %rax  # x
   subq    %rsi, %rax  # result = x-y
   movq    %rsi, %rdx
   subq    %rdi, %rdx  # eval = y-x
   cmpq    %rsi, %rdi  # x:y
   cmovle  %rdx, %rax  # if <=, result = eval
   ret

• That conditional move avoided a branch.
• Here we are computing both (x-y and y-x), and every time we do this we throw away one of them, but why does it still take less time than branching?
  • We got rid of a branch, we eliminated that factor that a program didn't know where to go depending on waiting for something to be compared for example
  • Here all instructions are executed simultaneously (in parallel)
  • This is why we say branches can cause a lot of performance problems

Bad Cases for Conditional Move

Expensive Computations

val = Test(x) ? Hard1(x) : Hard2(x);

• Both values get computed
  • We do not necessarily want them to both be computed
• Only makes sense when computations are very simple

Risky Computations

val = p ? *p : 0;

• Both values get computed
• May have undesirable effects

Computations with side effects

c

• Both values get computed
• Must be side-effect free

Loops

"Do-While" Loop Example

Three main kind of loops in C++

1. while
2. do-while
   • This is actually easier for the compiler to process
3. for
   • It is the most general, the meaning of loop falls good in it.
   • Because of that generality, it is the most complicated kind of loop for the compiler to reason about

C Code

long pcount_do
  (unsigned long x) {
  long result = 0;
  do {
    result += x & 0x1;
    x >>= 1;
  } while (x);
  return result;
}

• Counting the number of 1 bits.
• We just need to keep counting bits until we run out of bits
• To translate to assembly we first need to get rid of any structured programming structure like the do-while loop.

Goto Version

long pcount_goto
  (unsigned long x) {
  long result = 0;
 loop:
  result += x & 0x1;
  x >>= 1;
  if(x) goto loop;
  return result;
}

• Count number of 1’s in argument x (“popcount”)
• Use conditional branch to either continue looping or to exit loop
• Note: if(x) goto loop;
  • This looks familiar
  • Looks like I could do this with a conditional branch that jumps if the zero flag is false.

"Do-While" Loop Compilation

Goto Version

long pcount_goto
  (unsigned long x) {
  long result = 0;
 loop:
  result += x & 0x1;
  x >>= 1;
  if(x) goto loop;
  return result;
}

	 movl    $0, %eax		#  result = 0
.L2:			# loop:
   movq    %rdi, %rdx
   andl    $1, %edx		#  t = x & 0x1
   addq    %rdx, %rax	#  result += t
   shrq    %rdi		#  x >>= 1
   jne     .L2		#  if (x) goto loop
   rep; ret

• %eax is the 32-bit version of %rax
  • When you change eax the compiler also changes rax
  • It sets it equal to 0 in this example.
  • Why when I could just an XOR with eax itself?
    • Yes this is a very common idiom in compilers
    • It is actually a little bit more efficient
    • In this example is not done for understanding purposes.
• Take x and put it into rdx
• edx is the 32-bit version of rdx
  • AND the rdx register with 1 and put the result back into edx
• shrq is using a logical shift treating it as an unsigned
• jne: jump if not equal to zero
  • Jump back up to .L2

General "Do-While" Translation

C Code

do
  Body
  while (Test);

Goto Verstion:

loop:
  Body
  if (Test)
    goto loop

Body:

{
  Statement1;
  Statement2;
    …
  Statementn;
}

• Arbitrary C statements
• Usually a compund statement -> usually doing something complicated

General "While" Translation

• A little more complicated than do-while

  • With do-while we are executing the body at least once
  • But with while we need to make something special for the case we don't even get to the loop body once

• “Jump-to-middle” translation

• Used with -Og

While verstion

while (Test)
  Body

Goto Version

  goto test;
loop:
  Body
test:
  if (Test)
    goto loop;
done:

While Loop Example #1

C Code

long pcount_while
  (unsigned long x) {
  long result = 0;
  while (x) {
    result += x & 0x1;
    x >>= 1;
  }
  return result;
}

Jump to Middle

long pcount_goto_jtm
  (unsigned long x) {
  long result = 0;
  goto test;
 loop:
  result += x & 0x1;
  x >>= 1;
 test:
  if(x) goto loop;
  return result;
}

• If x starts out at 0, we never get into this loop
• Compare to do-while version of function
• Initial goto starts loop at test

General "While" Translation #2

• Another way is to pretend that a while loop is actually a do-while loop and do something else about it

While version

while (Test)
  Body

Do-While Version

if (!Test)
    goto done;
  do
    Body
    while(Test);
done:

Goto Version

if (!Test)
    goto done;
loop:
  Body
  if (Test)
    goto loop;
done:

• “Do-while” conversion

• Used with –O1

• Might be a little better because it avoids that initial jump, it makes it a "maybe" jump (avoids initial jump)

  • The compiler can look at expressions and can sometimes evaluate them at compile time

While Loop Example #2

• Same example as [[#While Loop Example 1]]

Do-While Version

long pcount_goto_dw
  (unsigned long x) {
  long result = 0;
  if (!x) goto done;
 loop:
  result += x & 0x1;
  x >>= 1;
  if(x) goto loop;
 done:
  return result;
}

• Compare to do-while version of function
• Initial conditional guards entrance to loop

"For" Loop Form

• Returns the same value given the same input, but the way it does it is going to be different from a while loop

General Form

for (Init; Test; Update )
    Body

#define WSIZE 8*sizeof(int)
long pcount_for
  (unsigned long x)
{
  size_t i;
  long result = 0;
  for (i = 0; i < WSIZE; i++)
  {
    unsigned bit =
      (x >> i) & 0x1;
    result += bit;
  }
  return result;
}

Init

i = 0

• initial expression

Test

i < WSIZE

• test expression

Update

i++

• Add "1" to i

Body

{
  unsigned bit =
     (x >> i) & 0x1;
  result += bit;
}

• How can we make this in assembly?
  • Make a convert it to a While loop and then convert it to a do-while loop.

"For" Loop -> While Loop

For version

for (Init; Test; Update )
    Body

While Version

Init;
while (Test ) {
    Body
    Update;
}

For-While Conversion

long pcount_for_while
  (unsigned long x)
{
  size_t i;
  long result = 0;
  i = 0;
  while (i < WSIZE)
  {
    unsigned bit =
      (x >> i) & 0x1;
    result += bit;
    i++;
  }
  return result;
}

"For" Loop Do-While Conversion

C Code

long pcount_for
  (unsigned long x)
{
  size_t i;
  long result = 0;
  for (i = 0; i < WSIZE; i++)
  {
    unsigned bit =
      (x >> i) & 0x1;
    result += bit;
  }
  return result;
}

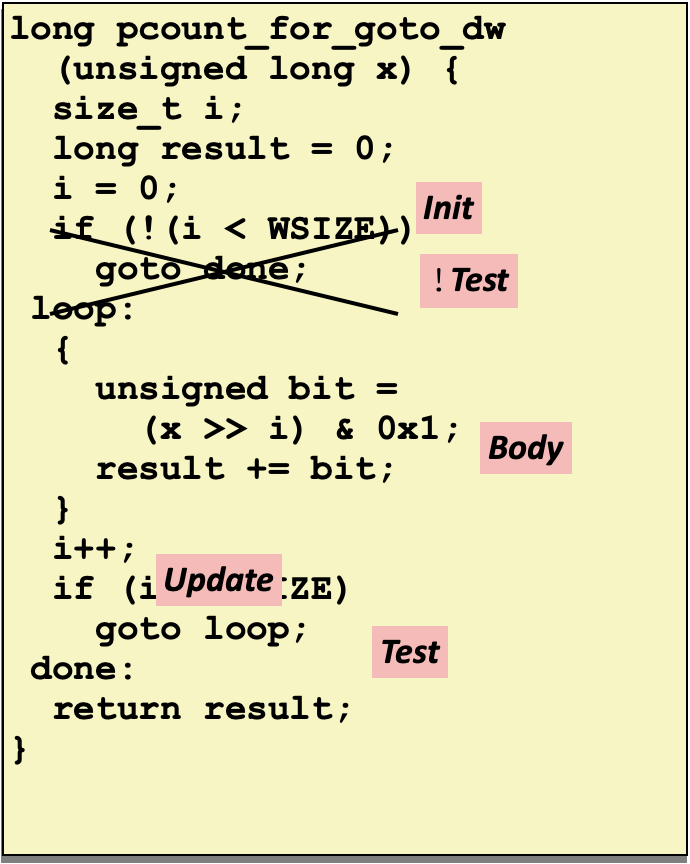

Goto Version

• Initial test can be optimized away

Switch Statements

Switch Statement Example

C code:

long switch_eg
   (long x, long y, long z)
{
    long w = 1;
    switch(x) {
    case 1:
        w = y*z;
        break;
    case 2:
        w = y/z;
        /* Fall Through */
    case 3:
        w += z;
        break;
    case 5:
    case 6:
        w -= z;
        break;
    default:
        w = 2;
    }
    return w;
}

• Multiple case labels

  • Here: 5 & 6

• Fall through cases

  • Here: 2

• Missing cases

  • Here: 4

• How can we compile this into assembly language?

  • How would you implement break
    • goto end
    • if no break just don't goto
  • This is a linear search for the case.
    • What do we know about linear searches?
      • They are bad (we can do better)
      • Do binary search!
      • What about hash tables?
        • we have something similar -> Jump tables

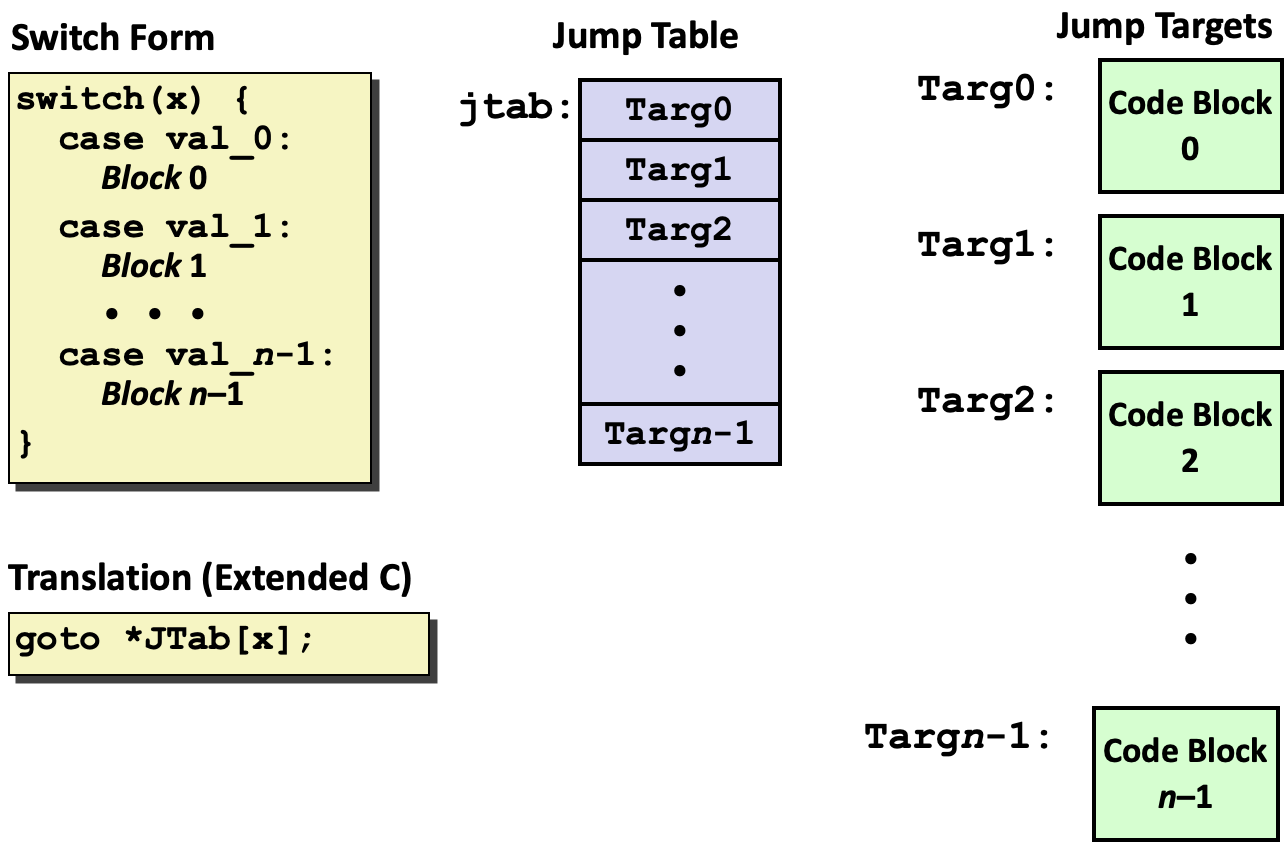

Jump Table Structure

• Instead of searching one by one, we just get the value, pull up the pointer that corresponds to that value and jump to that pointer.

• Hashtables are O(1)

  • A way we can search for the right case in O(1) time -> Jump tables

• Switch statements are a natural form of control

  • Can be solved with a jump table much faster than with a sequence of ifs
  • Switch lets us use this O(1) implementation of the control flow.

• In assembly the compiler fills in the code for each case

  • Code block 0, code block 1, code block 2, etc...

Switch Statement Exmaple

long switch_eg(long x, long y, long z)
{
    long w = 1;
    switch(x) {
      . . .
    }
    return w;
}

Setup:

switch_eg:
    movq    %rdx, %rcx
    cmpq    $6, %rdi        # x:6
    ja      .L8             # Use default
    jmp     *.L4(,%rdi,8)   # goto *JTab[x]

• What ja range of values takes default?
• Last line is an Indirect Jump
  • Branch predictors hate this jump, it is very hard to predict, so it does have a latency factor, but it is much better than doing asymptotically sequence of if statements or even binary search!
• The . prefix directs the assembler to do something.
  • Note when x == 5 and x == 6, we are supposed to do the same thing, so that is why we can see two .L7 there

• Note that w not initialized here

Assembly Setup Explanation

• Table Structure
  • Each target requires 8 bytes
  • Base address at .L4
• Jumping

  • Direct: jmp .L8

  • jump target is denoted by label .L8

  • Indirect: jmp *.L4(,%rdi,8)

    • Using indirection to do a jump
    • This is saying get a pointer out of memory and then jump to that pointer

  • Start of jump table: .L4

  • Must scale by factor of 8 (addresses are 8 bytes)

  • Fetch target from effective Address .L4 + x*8

    • Only for 0 <= x <= 6

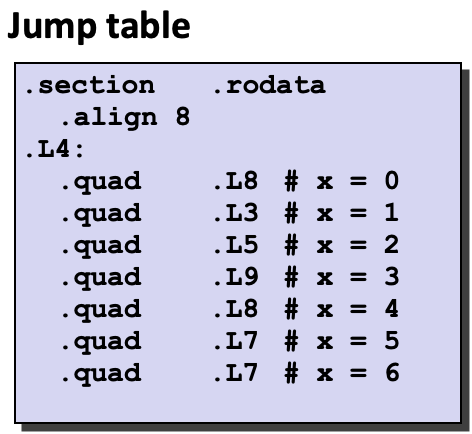

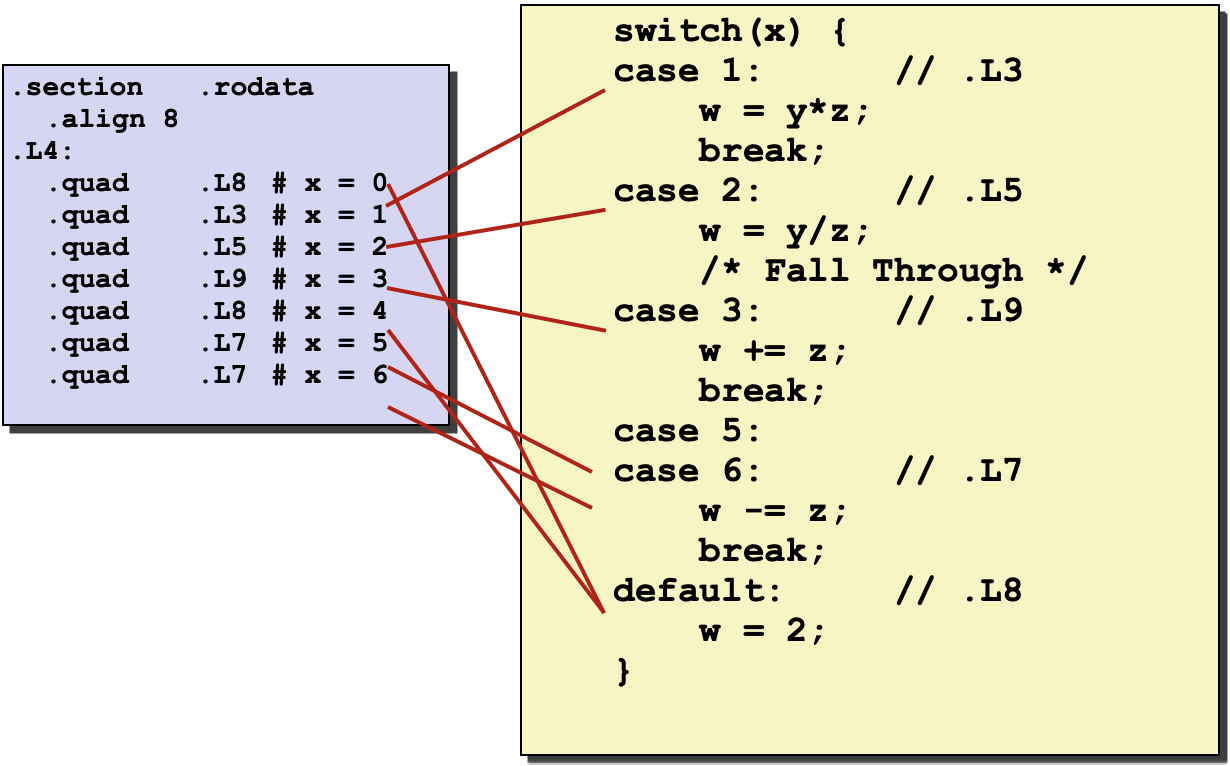

Jump Table

• "Make an array of the addresses of these different blocks of code"
• Note: The .L8 label is the default case in this example.

Code Blocks (x == 1)

C code:

switch(x) {
  case 1:	  // .L3
        w = y*z;
        break;
   . . .
}

Assembly code:

.L3:
   movq    %rsi, %rax  # y
   imulq   %rdx, %rax  # y*z
   ret

• Defining label .L3 (code block)
  • Move y into rax
  • Multiply y times z
  • Return

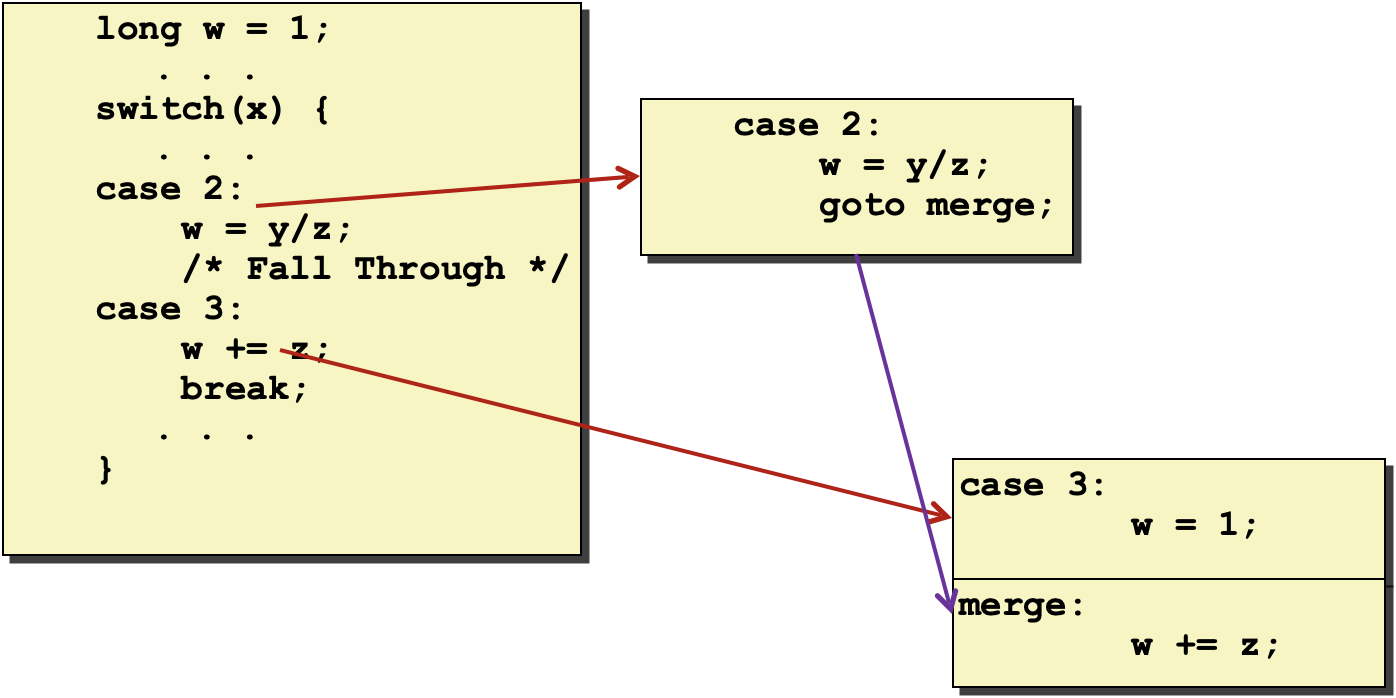

Handling Fall-Through

Code Blocks (x == 2, x == 3)

C code:

    long w = 1;
	. . .
    switch(x) {
 	. . .
    case 2:
        w = y/z;
        /* Fall Through */
    case 3:
        w += z;
        break;
 	. . .
    }

Assembly code:

.L5:                  # Case 2
   movq    %rsi, %rax
   cqto
   idivq   %rcx       #  y/z
   jmp     .L6        #  goto merge
.L9:                  # Case 3
   movl    $1, %eax   #  w = 1
.L6:                  # merge:
   addq    %rcx, %rax #  w += z
   ret

• Case 2 is handled by .L5
  • What does cqto does?
    • Something about setting up a division

Code Blocks (x == 5, x == 6, default)

C code:

switch(x) {
    . . .
    case 5:  // .L7
    case 6:  // .L7
        w -= z;
        break;
    default: // .L8
        w = 2;
}

Assembly code:

.L7:               # Case 5,6
  movl  $1, %eax   #  w = 1
  subq  %rdx, %rax #  w -= z
  ret
.L8:               # Default:
  movl  $2, %eax   #  2
  ret

Remember:

• Jumps are still very costly, and hard to predict.
• Indirect branches are much harder to predict
  • Predicting between many different cases
  • If you predict wrong you need to go back, so it will be more costly
  • In some cases actually doing a linear or binary search would be a better solution than trying prediction.

Summarizing

• C Control

  • if-then-else
  • do-while
    • It is a turing complete structure, anything after it is just niceness and making languages more fancy.
  • while, for
  • switch

• Assembler Control

  • Conditional jump
  • Conditional move
  • Indirect jump (via jump tables)
  • Compiler generates code sequence to implement more complex control

• Standard Techniques

  • Loops converted to do-while or jump-to-middle form
  • Large switch statements use jump tables
  • Sparse switch statements may use decision trees (if-elseif-elseif-else)
