02 - Architectural Support for Operating Systems

Class: CSCE-313

Notes:

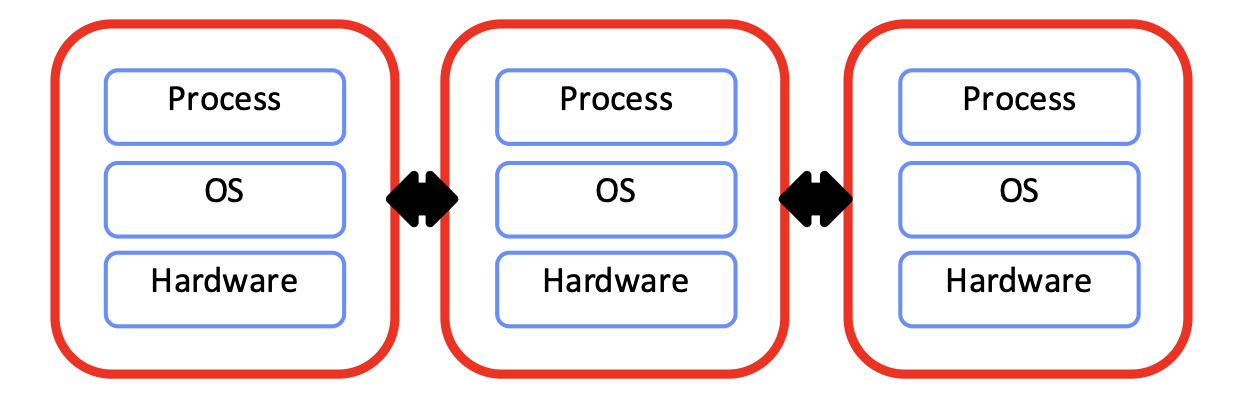

Place of the Operative System

• Processes architecturally are on another ring of the hardware
• The middleware is implementing isolation among processes and protecting devices from being accessible by processes

Function of an Operative System

• Isolation, Uniform interface, Efficient & fair sharing
  • This is what the OS tries to do
• Analogy with the government
  • Does no useful work,
  • Simply legislates on resource use by competing applications,
  • Enforces policy such as fairness of resource sharing

A process (simplified)

A process is an instance of a running program

• Started by system call exec

State of a process

• CPU
• Memory (address space)
  • Store code, data, stack, heap
  • A process has its own address space
• Registers
  • Program Counter, Stack Pointer Regular registers
• IO information
  • Open files (and others)
  • Some state that the kernel is keeping

From program to process

• Think of multiple processes all basically using some portion of your physical memory in the form of virtual memory
  • All are being multiplexed on that same physical memory

The Process, Refined

An executing program with restricted rights

• Enforcing mechanism must not hinder functionality or hurt performance
  • Even when implementing isolation it should not hurt performance or functionality, they should do the same.
• One of the principle ways the OS implements isolation is by virtual addressing
  • Even though addresses may be identical to different processes they get mapped differently to physical memory and therefore it is not possible to get out of those bounds of virtual memory
  • Each process is living in its own universe, the OS gives the illusion to the process that it has control of the whole memory.

User vs Kernel

Application/User Code (Untrusted)

• Run all the processor with all potentially dangerous operations disabled

Kernel Code (Trusted)

• Runs directly on processor with unlimited rights
• Performs any hardware operations

But run on the same machine!

Notes:

• You want to prevent a binary affecting the OS

Hardware must support

1. Privileged Instructions
   • Unsafe instructions cannot be executed in user mode
   • There are some instructions that you can only do when running in privileged mode
   • To do this we need to have in our processor a notion of what can be done and what cannot be node
     • For example a process cannot change its own address space, it has to ask the OS to change it
2. Memory Isolation
   • Memory accesses outside a process’s address space prohibited
     • A process cannot break out of its virtual addresses container
3. Interrupts
   • Ensure kernel can regain control from running process
   • We need some way to interrupt the execution of the CPU, because if not, the sharing of resources would become unfair
4. Safe Transfers
   • Correctly transfer control from user-mode to kernel-mode and back
   • We need some way to correctly and safely transfer an unprivileged work to a privileged work and vice-versa.

1. Privilege levels differentiate instruction sets

• The OS runs in ring 0
• User space programs run in ring 3
• There are two bits in a register that determine your current privilege level, which determines what instructions you can do.
• A process cannot change its privileged level

2. VM can give the illusion of an entire contiguous address space

• Virtual memory as a mechanism that is supported in hardware
  • The hardware maps virtual pages at the time, of reference, to an actual physical page
  • It is just the mapping that is set up by the OS, but the actual referencing is done by the hardware
• To the process it looks like the address space is contiguous
• A process cannot change its address space

3. Interrupts wrest control from applications

1. Hardware Interrupts. All interrupts are guaranteed to be taken on an instruction boundary. [Vol 3A, 6-6]
   1. Asynchronous
   2. External devices such as timers
2. Software Interrupts (INT 0x80, syscall)
   1. Synchronous—explicit instruction
   2. System calls
3. Exceptions—div/0,…In some cases, %rip points to fault insn.
   1. Protection violations, Page faults,…

Notes:

• When you have an interrupt, the CPU will do whatever needs to be done right after, where it jumps to is already set up by the OS, so the user space program has no choice other than jump.
  • "On an interrupt, you WILL execute my code"
• In hardware interrupts, a pin goes high when an interrupt is triggered, it then does an acknowledgement cycle with the pick, and the pick sends it a number between 0-255, this is the interrupt number. The CPU indexes into a table and interprets that number into an address, then the CPU jumps to that address.
  • Hardware interrupts are considered to be external, it needs a number between 0-255 because its interrupt vector table is of size 256
  • This resolves in the CPU going into a different location, in order to handle this interrupt
• In software interrupts, the OS provides you with the vector number (instructions in the CPU)
  • System calls are implemented like that, they generate a software interrupt and the CPU jumps to the address
  • It sets up its registers the same way it would do for function calls
  • You do not know where you are going, all you are saying is go to some address. You do not control it, it is the OS that sets it up for you.
  • Modern x86 does not uses INT 0x80 anymore, it uses another number from the interrupt vector table for syscall
  • Note processes do not do anything, it is the kernel that will do it.
  • The only way you can become ring 0 is because you get trapped into my address space because of an interrupt, but you are no longer running your own code, you are now running my code.
• Exceptions that happen as your program is being executed can also trigger an interrupt
  • The CPU will generate an exception and it will be handled exactly in the same manner
  • Whatever is the address stored against that index, the OS sets it for you, you become ring 0 and the kernel handles it for you, when it returns to you, you are also returned to ring 3.
  • This restarts the instruction pointer to the same instruction you were next doing

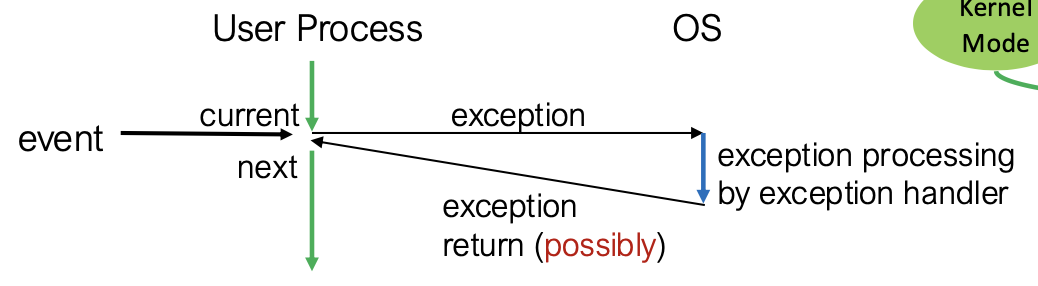

Interrupts and exceptions result in control change

An interrupt/exception results in the transfer of control to the OS in response to some event

• Note you will be returned to the address you left in.
• Everything will be the same for you, all the registers will be the same, it will just be a little bit of a delay between the previous instruction and the next, but everything will be okay.

Interrupt & Exception handlers

An interrupt handler is code that services an interrupt, then resumes the
interrupted program.

• Linux initializes an interrupt vector table to handle interrupts.
• The processor saves the %rflags, %cs+%rip registers onto the stack before transferring control to the interrupt handler routine.
  • Handler usually saves all processor registers
  • Services the routine
  • Restores processor registers
  • iret’s from the interrupt (restore %rflags + %cs + %rip)
• Interrupt handlers must not change registers before saving them
  • must be able to resume where the program was interrupted.

Notes:

• When an interrupt happens, your hardware will automatically save your instruction pointer, your status, and other registers
  • Why does the CPU needs to save the instruction pointer? well, because it needs to remember where it came from in order to be able to go back at some point
  • You better make sure that your registers have the same values as when you left.
  • You also need this to be atomic, if these are not atomic, you will have trouble.

Synchronous "interrupts"

Synchronous exceptions can be triggered by executing an instruction.

From within the user application there are 3 types of synchronous exceptions:

1. Faults,
   • Usually occurs before the instruction completes and is restartable.
   • Page Fault
2. Aborts
   • A severe, unrecoverable exception (e.g., hardware failure or double fault), not restartable. ECC checksum failure.
3. Traps (INT 3) or System Calls (SYSCALL)

Examples: Exception in Intel Processors

See https://wiki.osdev.org/exceptions

• Our mechanism for implementing syscalls, is that the OC picks one of these indices
• When the user space program wants to do something privileged it has to tell the OS and generate a "Trap" so that your process is able to change its privilege level and jump to that address.
• It has to carefully manage its registers
  • Saves all your registers and then restores them
  • The OS knows where to return you back because you already pushed your address to the stack

Example 1: page fault

• User writes to memory location
• That page of user memory is not mapped yet (because memory pages are mapped only when necessary)
• Page handler must load page into physical memory
• Returns to faulting instruction
• Successful on second try

int a[1000];
main () {
	a[500] = 13;
}

• This part of the array is not mapped into your virtual address space, it is valid, but it is not in memory at the time we access it, that is how we generate a page fault.
• There is a well defined exception when an exception happens
  • Has to do with returning back to user space
  • You will end up retrying that instruction

Notes:

• The instruction that generates the page fault is read/write

Example 2: illegal memory reference

Illegal Memory Reference

• User writes to memory location
• Address is not valid
• Page handler detects invalid address
• Sends SIGSEGV* signal to user process
• User process exits with “segmentation fault”

int a[1000];
main () {
	a[500] = 13;
}

Notes:

• Software interrupts are called signals in the Unix world

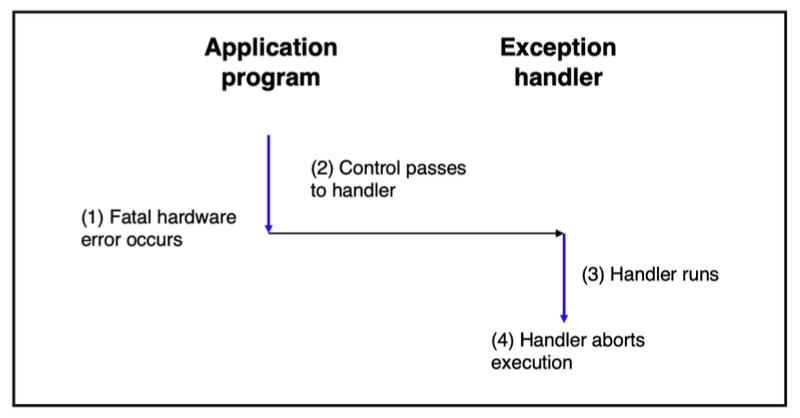

Example 3: Abort

Aborts are severe and unrecoverable errors.

• Examples: memory parity error, machine check
• Aborts current program and hands control over to the OS
• This is the way for the OS to put essential error checking
• Also, an excellent way to make OS resilient when applications are failing or crashing

• Some are recoverable, some are just not recoverable

• Divide by zero is handled differently for INT and Floating Point (FP).

• System response can be +ve INF (FP) or fault (SIGFPE default is irrecoverable)
• Therefore, Divide by Zero can technically fall in several categories of exceptions
• Depending on how it is handled in a system.

...

Traps or system calls

• Generate a trap for 128 (syscall), then wrap through the values of your registers.
• There is trickiness because as a user process you are in a virtual address space, supposing you provide a pointer as an argument, it must be able to read into your virtual address space, and as it is reading it can find that some pages are not mapped, this could generate a page fault, it needs to be handled carefully by the kernel before you can retrieve registers, etc.

System calls: example

#include <unistd.h>
int main(void) {
	write(1, "Hello, world\n", 13);
	return 0;
}

• Your stdout is represented by a file descriptor (remember every process start with 3 descriptors)
• write() is referring to the system call to libc
• Compile it with gcc write-syscall.c
• Run it with ./a.out
• Note if you have many of these write() calls, the compiler might buffer them so that you only go make the syscall once.

WRITE(2) Linux Programmer's Manual WRITE(2)

NAME
	write - write to a file descriptor

SYNOPSIS
	#include <unistd.h>
	ssize_t write(int fd, const void *buf, size_t count);

DESCRIPTION
	write() writes up to count bytes from the buffer starting at buf to the file referred to by the file descriptor fd.

• Got it from using the man command
• Your libraries are basically encapsulating system calls (libc)

stdin, stdout, stderr

A process usually has three file descriptors

• stdin (0), stdout (1), stderr (2)
• cin, cout, cerr

secho
stdin> Howdy!
stdout: Howdy!
stderr: Howdy!

• The program (secho) read "Howdy!" from standard input and just send it to standard output and standard error

secho > /dev/null
stdin> Howdy!
stderr: Howdy!

• Here the program redirects the standard output to /dav/null (trash)
• stderr is still displayed (it was not dumped)

secho > /dev/null 2>&1
Howdy!

• This is just unique syntax for saying that you want to include stderr in the redirect
• Now both stderr and stdout are pointing to /dev/null (they are both dumped)
• Why didn't the stdin> prompt appeared this time?
  • In the code we are printing this prompt to stderr, since we point to the /dev/null, we never get to see it.

Notes:

• C++ will provide convenient methods on cin, cout, cerr to make programming easier

System calls: an example in assembly

main:
	pushq %rbp
	movq %rsp, %rbp
	movl $13, %edx
	leaq .LC0(%rip), %rax
	movq %rax, %rsi
	movl $1, %edi
	call write@PLT
	movl $0, %eax
	popq %rbp
	ret

• If we generate the assembly for the program, it look something like this
• Note the syscall write is going to glibc

glibc (GNU C Library) is the fundamental C standard library for GNU/Linux and other Unix-like systems, providing essential functions for nearly all applications, such as memory allocation, file I/O, string handling, and system calls, acting as a vital bridge between user programs and the operating system kernel, implementing standards like POSIX and ISO C

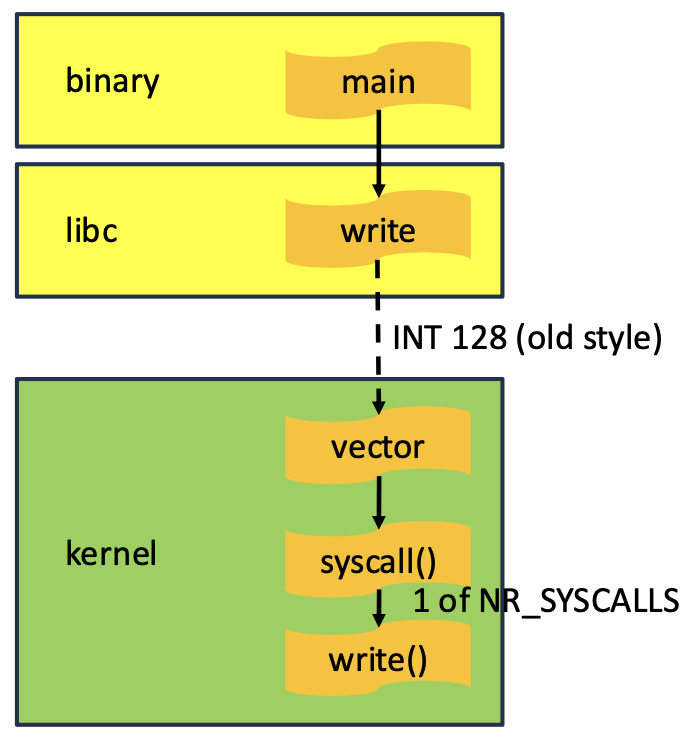

System call invocation

• Philosophy: If you keep your end of the bargain, then you will get the service that you asked for

Control Flow in System Calls

Example: file open

• Dashed lines mean context switch due to software interrupt,
• This is also where execution mode changes to/from “privileged”

Notes:

• The system call number for open is (2)
• The kernel has to be very careful in copying each of the arguments of the processes virtual address space
  • This is figured out by the kernel
• Internally it will do a dispatch to say "I want to involve open_handler, etc."
• At the end it will return to glibc and then to your user program

System calls

...

Types of System Calls
