Defensive programming doesn't mean being defensive about your programming-"It does so work!" The idea is based on defensive driving. In defensive driving, you adopt the mind-set that you're never sure what the other drivers are going to do. That way, you make sure that if they do something dangerous you won't be hurt. You take responsibility for protecting yourself even when it might be the other driver's fault. In defensive programming, the main idea is that if a routine is passed bad data, it won't be hurt, even if the bad data is another routine's fault. More generally, it's the recognition that programs will have problems and modifications, and that a smart programmer will develop code accordingly.

This chapter describes how to protect yourself from the cold, cruel world of invalid data, events that can "never" happen, and other programmers' mistakes. If you're an experienced programmer, you might skip the next section on handling input data and begin with Section 8.2, which reviews the use of assertions.

Chapter 8: Defensive Programming

8.1: Protecting Your Program from Invalid Inputs

In school you might have heard the expression, "Garbage in, garbage out." That expression is essentially software development's version of caveat emptor: let the user beware.

For production software, garbage in, garbage out isn't good enough. A good program never puts out garbage, regardless of what it takes in. A good program uses "garbage in, nothing out," "garbage in, error message out," or "no garbage allowed in" instead. By today's standards, "garbage in, garbage out" is the mark of a sloppy, nonsecure program.

There are three general ways to handle garbage in:

Check the values of all data from external sources

When getting data from a file, a user, the network, or some other external interface, check to be sure that the data falls within the allowable range. Make sure that numeric values are within tolerances and that strings are short enough to handle. If a string is intended to represent a restricted range of values (such as a financial transaction ID or something similar), be sure that the string is valid for its intended purpose; otherwise reject it. If you're working on a secure application, be especially leery of data that might attack your system: attempted buffer overflows, injected SQL commands, injected HTML or XML code, integer overflows, data passed to system calls, and so on.

Check the values of all routine input parameters

Checking the values of routine input parameters is essentially the same as checking data that comes from an external source, except that the data comes from another routine instead of from an external interface. The discussion in Section 8.5, "Barricade Your Program to Contain the Damage Caused by Errors," provides a practical way to determine which routines need to check their inputs.

Decide how to handle bad inputs

Once you've detected an invalid parameter, what do you do with it? Depending on the situation, you might choose any of a dozen different approaches, which are described in detail in Section 8.3, "Error-Handling Techniques," later in this chapter.

Defensive programming is useful as an adjunct to the other quality-improvement techniques described in this book. The best form of defensive coding is not inserting errors in the first place. Using iterative design, writing pseudocode before code, writing test cases before writing the code, and having low-level design inspections are all activities that help to prevent inserting defects. They should thus be given a higher priority than defensive programming. Fortunately, you can use defensive programming in combination with the other techniques.

8.2 Assertions

An assertion is code that's used during development-usually a routine or macro-that allows a program to check itself as it runs. When an assertion is true, that means everything is operating as expected. When it's false, that means it has detected an unexpected error in the code. For example, if the system assumes that a customerinformation file will never have more than 50,000 records, the program might contain an assertion that the number of records is less than or equal to 50,000 . As long as the number of records is less than or equal to 50,000 , the assertion will be silent. If it encounters more than 50,000 records, however, it will loudly "assert" that an error is in the program.

Assertions are especially useful in large, complicated programs and in high-reliability programs. They enable programmers to more quickly flush out mismatched interface assumptions, errors that creep in when code is modified, and so on.

An assertion usually takes two arguments: a boolean expression that describes the assumption that's supposed to be true, and a message to display if it isn't. Here's what a Java assertion would look like if the variable denominator were expected to be nonzero:

Java Example of an Assertion
assert denominator != 0 : "denominator is unexpectedly equal to 0.";

This assertion asserts that denominator is not equal to 0 . The first argument, denominator $!=0$, is a boolean expression that evaluates to true or false. The second argument is a message to print if the first argument is false-that is, if the assertion is false.

Use assertions to document assumptions made in the code and to flush out unexpected conditions. Assertions can be used to check assumptions like these:

• That an input parameter's value falls within its expected range (or an output parameter's value does)
• That a file or stream is open (or closed) when a routine begins executing (or when it ends executing)
• That a file or stream is at the beginning (or end) when a routine begins executing (or when it ends executing)
• That a file or stream is open for read-only, write-only, or both read and write
• That the value of an input-only variable is not changed by a routine
• That a pointer is non-null
• That an array or other container passed into a routine can contain at least $X$ number of data elements
• That a table has been initialized to contain real values
• That a container is empty (or full) when a routine begins executing (or when it finishes)
• That the results from a highly optimized, complicated routine match the results from a slower but clearly written routine

Of course, these are just the basics, and your own routines will contain many more specific assumptions that you can document using assertions.

Normally, you don't want users to see assertion messages in production code; assertions are primarily for use during development and maintenance. Assertions are normally compiled into the code at development time and compiled out of the code for production. During development, assertions flush out contradictory assumptions, unexpected conditions, bad values passed to routines, and so on. During production, they can be compiled out of the code so that the assertions don't degrade system performance.

Building your own assertion mechanism

Many languages have built-in support for assertions, including C++, Java, and Microsoft Visual Basic. If your language doesn't directly support assertion routines, they are easy to write. The standard C++ assert macro doesn't provide for text messages. Here's an example of an improved ASSERT implemented as a C++ macro:

C++ Example of an Assertion Macro

#define ASSERT( condition, message ) { \
    if ( !(condition) ) { \
        LogError( "Assertion failed: ", \
            #condition, message ); \
        exit( EXIT_FAILURE ); \
    }
}

Guidelines for using assertions

Here are some guidelines for using assertions:

Use error-handling code for conditions you expect to occur;

use assertions for conditions that should never occur Assertions check for conditions that should never occur. Error-handling code checks for off-nominal circumstances that might not occur very often, but that have been anticipated by the programmer who wrote the code and that need to be handled by the production code. Error handling typically checks for bad input data; assertions check for bugs in the code.

If error-handling code is used to address an anomalous condition, the error handling will enable the program to respond to the error gracefully. If an assertion is fired for an anomalous condition, the corrective action is not merely to handle an error grace-fully-the corrective action is to change the program's source code, recompile, and release a new version of the software.

A good way to think of assertions is as executable documentation-you can't rely on them to make the code work, but they can document assumptions more actively than program-language comments can.

Avoid putting executable code into assertions

Putting code into an assertion raises the possibility that the compiler will eliminate the code when you turn off the assertions. Suppose you have an assertion like this:

Visual Basic Example of a Dangerous Use of an Assertion

Debug.Assert( PerformAction() ) ' Couldn't perform action

The problem with this code is that, if you don't compile the assertions, you don't compile the code that performs the action. Put executable statements on their own lines, assign the results to status variables, and test the status variables instead. Here's an example of a safe use of an assertion:

Visual Basic Example of a Safe Use of an Assertion

actionPerformed = PerformAction()
Debug.Assert( actionPerformed ) ' Couldn't perform action

Use assertions to document and verify preconditions and postconditions

Preconditions and postconditions are part of an approach to program design and development known as "design by contract" (Meyer 1997). When preconditions and postconditions are used, each routine or class forms a contract with the rest of the program.

Preconditions are the properties that the client code of a routine or class promises will be true before it calls the routine or instantiates the object. Preconditions are the client code's obligations to the code it calls.

Postconditions are the properties that the routine or class promises will be true when it concludes executing. Postconditions are the routine's or class's obligations to the code that uses it.

Assertions are a useful tool for documenting preconditions and postconditions. Comments could be used to document preconditions and postconditions, but, unlike comments, assertions can check dynamically whether the preconditions and postconditions are true.

In the following example, assertions are used to document the preconditions and postcondition of the Velocity routine.

Visual Basic Example of Using Assertions to Document Preconditions and Postconditions

Private Function Velocity ( _
    ByVal latitude As Single, _
    ByVal longitude As Single, -
    ByVal elevation As Single _
    ) As Single
    ' Preconditions
    Debug.Assert ( -90 <= latitude And latitude <= 90 )
    Debug.Assert ( 0 <= longitude And longitude < 360 )
    Debug.Assert ( -500 <= elevation And elevation <= 75000 )
    ...
    ' Postconditions
    Debug.Assert ( 0 <= returnVelocity And returnVelocity <= 600 )
    ' return value
    Velocity = returnVelocity
End Function

If the variables latitude, longitude, and elevation were coming from an external source, invalid values should be checked and handled by error-handling code rather than by assertions. If the variables are coming from a trusted, internal source, however, and the routine's design is based on the assumption that these values will be within their valid ranges, then assertions are appropriate.

For highly robust code, assert and then handle the error anyway

For any given error condition, a routine will generally use either an assertion or error-handling code, but not both. Some experts argue that only one kind is needed (Meyer 1997).

But real-world programs and projects tend to be too messy to rely solely on assertions. On a large, long-lasting system, different parts might be designed by different designers over a period of $5-10$ years or more. The designers will be separated in time, across numerous versions. Their designs will focus on different technologies at different points in the system's development. The designers will be separated geographically, especially if parts of the system are acquired from external sources. Programmers will have worked to different coding standards at different points in the system's lifetime. On a large development team, some programmers will inevitably be more conscientious than others and some parts of the code will be reviewed more rigorously than other parts of the code. Some programmers will unit test their code more thoroughly than others. With test teams working across different geographic regions and subject to business pressures that result in test coverage that varies with each release, you can't count on comprehensive, system-level regression testing, either.

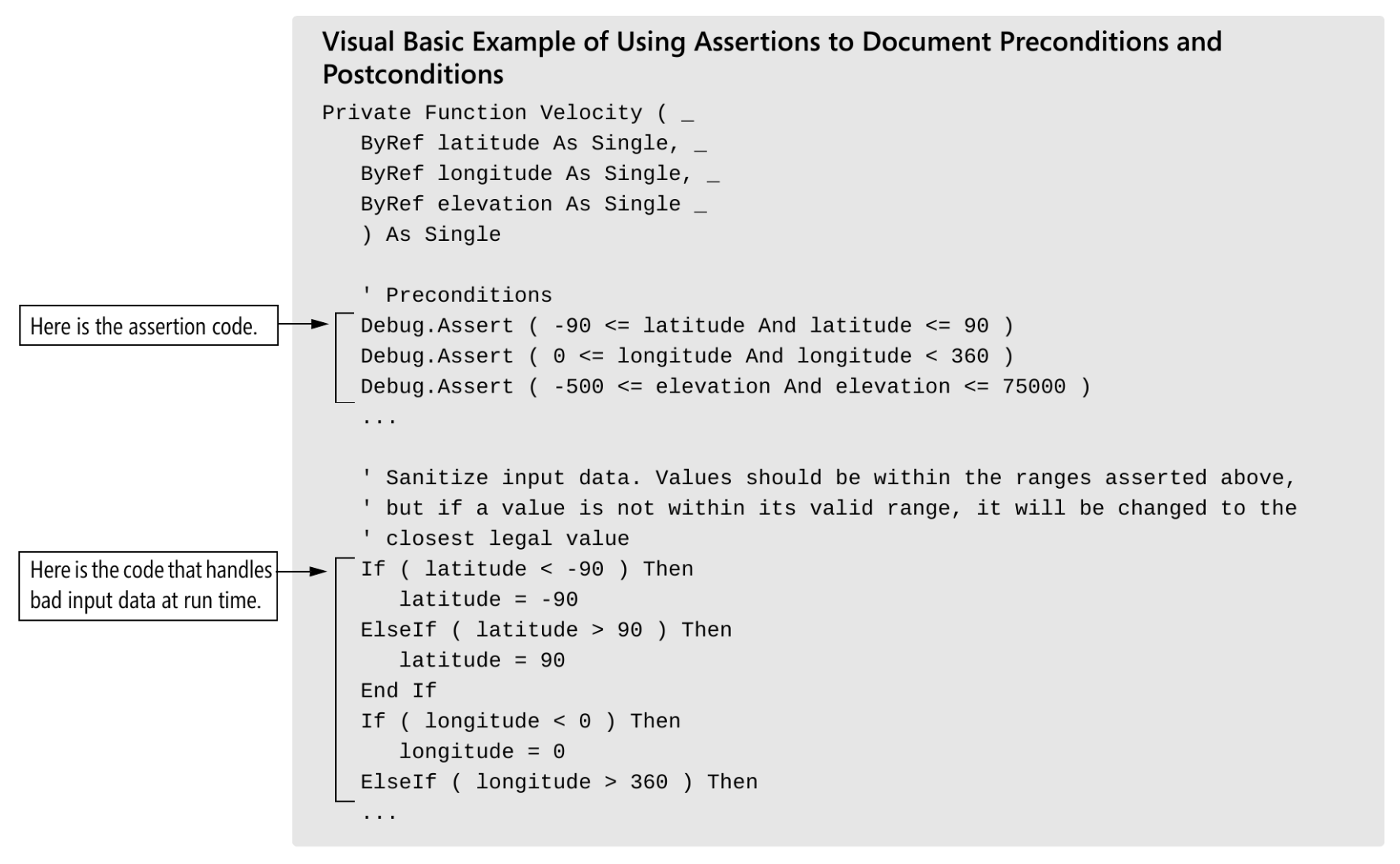

In such circumstances, both assertions and error-handling code might be used to address the same error. In the source code for Microsoft Word, for example, conditions that should always be true are asserted, but such errors are also handled by error-handling code in case the assertion fails. For extremely large, complex, longlived applications like Word, assertions are valuable because they help to flush out as many development-time errors as possible. But the application is so complex (millions of lines of code) and has gone through so many generations of modification that it isn't realistic to assume that every conceivable error will be detected and corrected before the software ships, and so errors must be handled in the production version of the system as well.

Example:

8.3 Error-Handling Techniques

Assertions are used to handle errors that should never occur in the code. How do you handle errors that you do expect to occur? Depending on the specific circumstances, you might want to return a neutral value, substitute the next piece of valid data, return the same answer as the previous time, substitute the closest legal value, log a warning message to a file, return an error code, call an error-processing routine or object, display an error message, or shut down-or you might want to use a combination of these responses.

Here are some more details on these options:

Return a neutral value

Sometimes the best response to bad data is to continue operating and simply return a value that's known to be harmless. A numeric computation might return 0 . A string operation might return an empty string, or a pointer operation might return an empty pointer. A drawing routine that gets a bad input value for color in a video game might use the default background or foreground color. A drawing routine that displays x-ray data for cancer patients, however, would not want to display a "neutral value." In that case, you'd be better off shutting down the program than displaying incorrect patient data.

Substitute the next piece of valid data

When processing a stream of data, some circumstances call for simply returning the next valid data. If you're reading records from a database and encounter a corrupted record, you might simply continue reading until you find a valid record. If you're taking readings from a thermometer 100 times per second and you don't get a valid reading one time, you might simply wait another 1/100th of a second and take the next reading.

Return the same answer as the previous time

If the thermometer-reading software doesn't get a reading one time, it might simply return the same value as last time. Depending on the application, temperatures might not be very likely to change much in 1/100th of a second. In a video game, if you detect a request to paint part of the screen an invalid color, you might simply return the same color used previously. But if you're authorizing transactions at a cash machine, you probably wouldn't want to use the "same answer as last time"-that would be the previous user's bank account number!

Substitute the closest legal value

In some cases, you might choose to return the closest legal value, as in the Velocity example earlier. This is often a reasonable approach when taking readings from a calibrated instrument. The thermometer might be calibrated between 0 and 100 degrees Celsius, for example. If you detect a reading less than 0 , you can substitute 0 , which is the closest legal value. If you detect a value greater than 100 , you can substitute 100 . For a string operation, if a string length is reported to be less than 0 , you could substitute 0 . My car uses this approach to error handling whenever I back up. Since my speedometer doesn't show negative speeds, when I back up it simply shows a speed of 0-the closest legal value.

Log a warning message to a file

When bad data is detected, you might choose to $\log$ a warning message to a file and then continue on. This approach can be used in conjunction with other techniques like substituting the closest legal value or substituting the next piece of valid data. If you use a log, consider whether you can safely make it publicly available or whether you need to encrypt it or protect it some other way.

Return an error code

You could decide that only certain parts of a system will handle errors. Other parts will not handle errors locally; they will simply report that an error has been detected and trust that some other routine higher up in the calling hierarchy will handle the error. The specific mechanism for notifying the rest of the system that an error has occurred could be any of the following:

• Set the value of a status variable
• Return status as the function's return value
• Throw an exception by using the language's built-in exception mechanism

In this case, the specific error-reporting mechanism is less important than the decision about which parts of the system will handle errors directly and which will just report that they've occurred. If security is an issue, be sure that calling routines always check return codes.

Call an error-processing routine/object

Another approach is to centralize error handling in a global error-handling routine or error-handling object. The advantage of this approach is that error-processing responsibility can be centralized, which can make debugging easier. The tradeoff is that the whole program will know about this central capability and will be coupled to it. If you ever want to reuse any of the code from the system in another system, you'll have to drag the error-handling machinery along with the code you reuse.

This approach has an important security implication. If your code has encountered a buffer overrun, it's possible that an attacker has compromised the address of the handler routine or object. Thus, once a buffer overrun has occurred while an application is running, it is no longer safe to use this approach.

Display an error message wherever the error is encountered

This approach minimizes error-handling overhead; however, it does have the potential to spread user interface messages through the entire application, which can create challenges when you need to create a consistent user interface, when you try to clearly separate the UI from the rest of the system, or when you try to localize the software into a different language. Also, beware of telling a potential attacker of the system too much. Attackers sometimes use error messages to discover how to attack a system.

Handle the error in whatever way works best locally

Some designs call for handling all errors locally-the decision of which specific error-handling method to use is left up to the programmer designing and implementing the part of the system that encounters the error.

This approach provides individual developers with great flexibility, but it creates a significant risk that the overall performance of the system will not satisfy its requirements for correctness or robustness (more on this in a moment). Depending on how developers end up handling specific errors, this approach also has the potential to spread user interface code throughout the system, which exposes the program to all the problems associated with displaying error messages.

Shut down

Some systems shut down whenever they detect an error. This approach is useful in safety-critical applications. For example, if the software that controls radiation equipment for treating cancer patients receives bad input data for the radiation dosage, what is its best error-handling response? Should it use the same value as last time? Should it use the closest legal value? Should it use a neutral value? In this case, shutting down is the best option. We'd much prefer to reboot the machine than to run the risk of delivering the wrong dosage.

A similar approach can be used to improve the security of Microsoft Windows. By default, Windows continues to operate even when its security log is full. But you can configure Windows to halt the server if the security log becomes full, which can be appropriate in a security-critical environment.

Robustness vs. Correctness

As the video game and x-ray examples show us, the style of error processing that is most appropriate depends on the kind of software the error occurs in. These examples also illustrate that error processing generally favors more correctness or more robustness. Developers tend to use these terms informally, but, strictly speaking, these terms are at opposite ends of the scale from each other. Correctness means never returning an inaccurate result; returning no result is better than returning an inaccurate result. Robustness means always trying to do something that will allow the software to keep operating, even if that leads to results that are inaccurate sometimes.

Safety-critical applications tend to favor correctness to robustness. It is better to return no result than to return a wrong result. The radiation machine is a good example of this principle.

Consumer applications tend to favor robustness to correctness. Any result whatsoever is usually better than the software shutting down. The word processor I'm using occasionally displays a fraction of a line of text at the bottom of the screen. If it detects that condition, do I want the word processor to shut down? No. I know that the next time I hit Page Up or Page Down, the screen will refresh and the display will be back to normal.

High-Level Design Implications of Error Processing

With so many options, you need to be careful to handle invalid parameters in consistent ways throughout the program. The way in which errors are handled affects the software's ability to meet requirements related to correctness, robustness, and other nonfunctional attributes. Deciding on a general approach to bad parameters is an architectural or high level design decision and should be addressed at one of those levels.

Once you decide on the approach, make sure you follow it consistently. If you decide to have high-level code handle errors and low-level code merely report errors, make sure the high-level code actually handles the errors! Some languages give you the option of ignoring the fact that a function is returning an error code-in C++, you're not required to do anything with a function's return value-but don't ignore error information! Test the function return value. If you don't expect the function ever to produce an error, check it anyway. The whole point of defensive programming is guarding against errors you don't expect.

This guideline holds true for system functions as well as for your own functions. Unless you've set an architectural guideline of not checking system calls for errors, check for error codes after each call. If you detect an error, include the error number and the description of the error.

8.4 Exceptions

Exceptions are a specific means by which code can pass along errors or exceptional events to the code that called it. If code in one routine encounters an unexpected condition that it doesn't know how to handle, it throws an exception, essentially throwing up its hands and yelling, "I don't know what to do about this-I sure hope somebody else knows how to handle it!" Code that has no sense of the context of an error can return control to other parts of the system that might have a better ability to interpret the error and do something useful about it.

Exceptions can also be used to straighten out tangled logic within a single stretch of code, such as the "Rewrite with try-finally" example in Section 17.3. The basic structure of an exception is that a routine uses throw to throw an exception object. Code in some other routine up the calling hierarchy will catch the exception within a try-catch block.

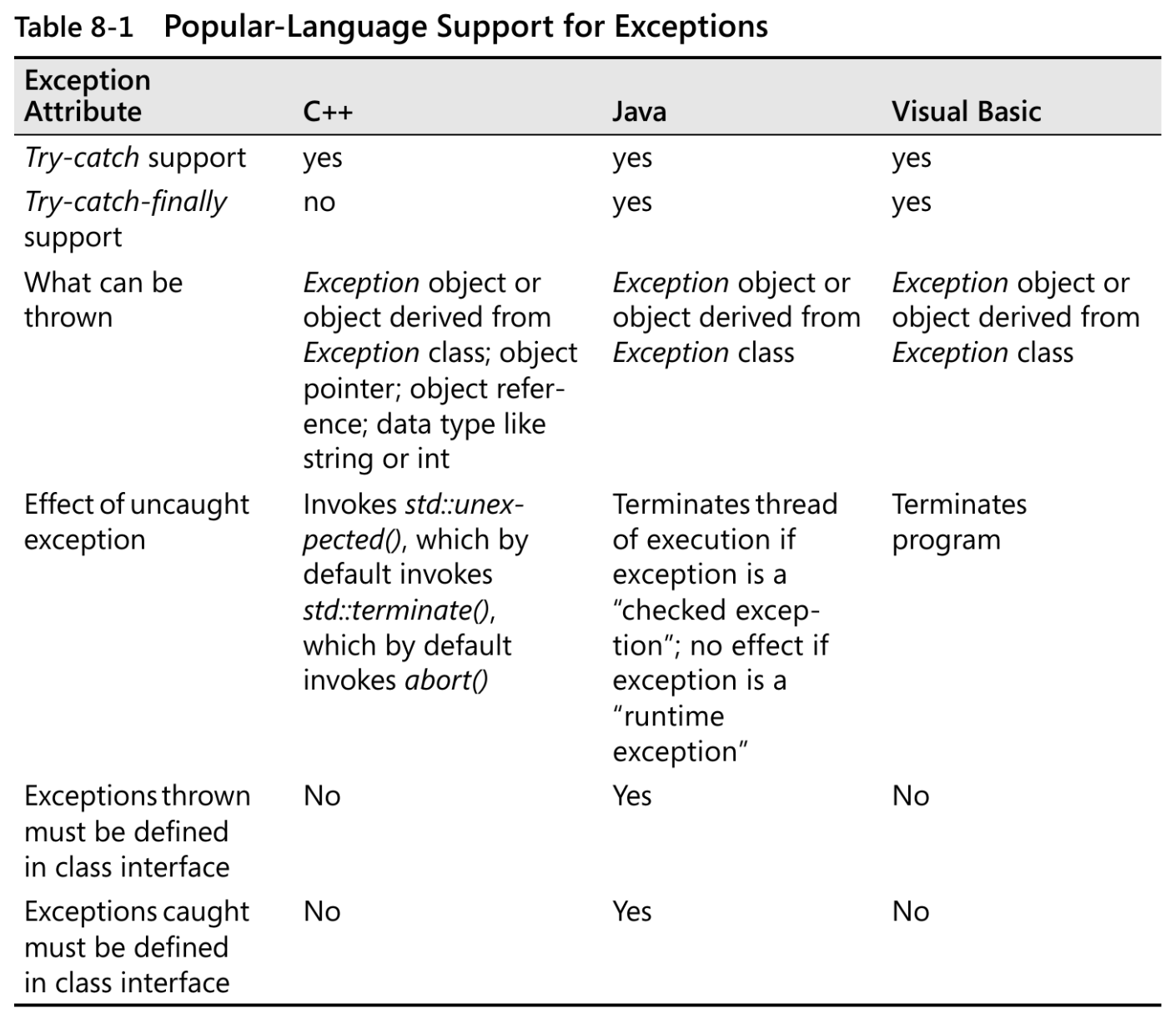

Popular languages vary in how they implement exceptions. Table 8-1 summarizes the major differences in three of them:

Exceptions have an attribute in common with inheritance: used judiciously, they can reduce complexity. Used imprudently, they can make code almost impossible to follow. This section contains suggestions for realizing the benefits of exceptions and avoiding the difficulties often associated with them.

Use exceptions to notify other parts of the program about errors that should not be ignored

The overriding benefit of exceptions is their ability to signal error conditions in such a way that they cannot be ignored (Meyers 1996). Other approaches to handling errors create the possibility that an error condition can propagate through a code base undetected. Exceptions eliminate that possibility.

Throw an exception only for conditions that are truly exceptional

Exceptions should be reserved for conditions that are truly exceptional-in other words, for conditions that cannot be addressed by other coding practices. Exceptions are used in similar circumstances to assertions-for events that are not just infrequent but for events that should never occur.

Exceptions represent a tradeoff between a powerful way to handle unexpected conditions on the one hand and increased complexity on the other. Exceptions weaken encapsulation by requiring the code that calls a routine to know which exceptions might be thrown inside the code that's called. That increases code complexity, which works against what Chapter 5, "Design in Construction," refers to as Software's Primary Technical Imperative: Managing Complexity.

Don't use an exception to pass the buck

If an error condition can be handled locally, handle it locally. Don't throw an uncaught exception in a section of code if you can handle the error locally.

Avoid throwing exceptions in constructors and destructors unless you catch them in the same place

The rules for how exceptions are processed become very complicated very quickly when exceptions are thrown in constructors and destructors. In C++, for example, destructors aren't called unless an object is fully constructed, which means if code within a constructor throws an exception, the destructor won't be called, thereby setting up a possible resource leak (Meyers 1996, Stroustrup 1997). Similarly complicated rules apply to exceptions within destructors.

Language lawyers might say that remembering rules like these is "trivial," but programmers who are mere mortals will have trouble remembering them. It's better programming practice simply to avoid the extra complexity such code creates by not writing that kind of code in the first place.

Throw exceptions at the right level of abstraction

A routine should present a consistent abstraction in its interface, and so should a class. The exceptions thrown are part of the routine interface, just like specific data types are.

When you choose to pass an exception to the caller, make sure the exception's level of abstraction is consistent with the routine interface's abstraction. Here's an example of what not to do:

The GetTaxId() code passes the lower-level EOFException exception back to its caller. It doesn't take ownership of the exception itself; it exposes some details about how it's implemented by passing the lower-level exception to its caller. This effectively couples the routine's client's code not to the Employee class's code but to the code below the Employee class that throws the EOFException exception. Encapsulation is broken, and intellectual manageability starts to decline.

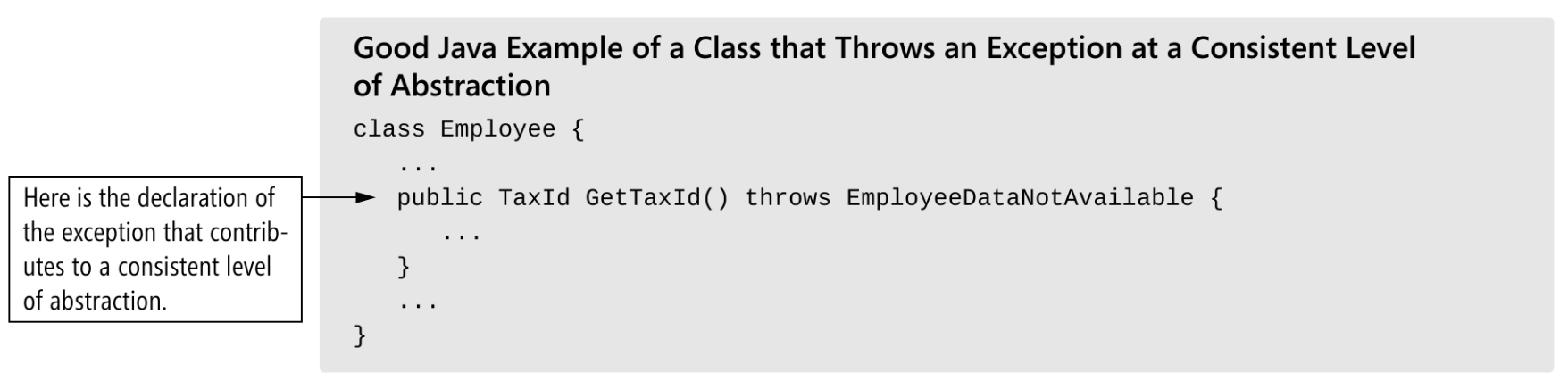

Instead, the GetTaxId() code should pass back an exception that's consistent with the class interface of which it's a part, like this:

The exception-handling code inside GetTaxId() will probably just map the io_disk_not_ready exception onto the EmployeeDataNotAvailable exception, which is fine because that's sufficient to preserve the interface abstraction.

Include in the exception message all information that led to the exception

Every exception occurs in specific circumstances that are detected at the time the code throws the exception. This information is invaluable to the person who reads the exception message. Be sure the message contains the information needed to understand why the exception was thrown. If the exception was thrown because of an array

index error, be sure the exception message includes the upper and lower array limits and the value of the illegal index.

Avoid empty catch blocks

Sometimes it's tempting to pass off an exception that you don't know what to do with, like this:

Bad Java Example of Ignoring an Exception
try {
    ...
    // lots of code
    ...
} catch ( AnException exception ) {
}

Such an approach says that either the code within the try block is wrong because it raises an exception for no reason, or the code within the catch block is wrong because it doesn't handle a valid exception. Determine which is the root cause of the problem, and then fix either the try block or the catch block.

You might occasionally find rare circumstances in which an exception at a lower level really doesn't represent an exception at the level of abstraction of the calling routine. If that's the case, at least document why an empty catch block is appropriate. You could "document" that case with comments or by logging a message to a file, as follows:

Good Java Example of Ignoring an Exception

try {
    ...
    // lots of code
    ...
} catch ( AnException exception ) {
    LogError( "Unexpected exception" );
}

Know the exceptions your library code throws

If you're working in a language that doesn't require a routine or class to define the exceptions it throws, be sure you know what exceptions are thrown by any library code you use. Failing to catch an exception generated by library code will crash your program just as fast as failing to catch an exception you generated yourself. If the library code doesn't document the exceptions it throws, create prototyping code to exercise the libraries and flush out the exceptions.

Consider building a centralized exception reporter

One approach to ensuring consistency in exception handling is to use a centralized exception reporter. The centralized exception reporter provides a central repository for knowledge about what kinds of exceptions there are, how each exception should be handled, formatting of exception messages, and so on.

Here is an example of a simple exception handler that simply prints a diagnostic message:

Visual Basic Example of a Centralized Exception Reporter, Part 1

Sub ReportException( _
    ByVal className, _
    ByVal thisException As Exception _
)
    Dim message As String
    Dim caption As String
    message = "Exception: " & thisException.Message & "." & ControlChars.CrLf & _
        "Class: " & className & ControlChars.CrLf & _
        "Routine: " & thisException.TargetSite.Name & ControlChars.CrLf
    caption = "Exception"
    MessageBox.Show( message, caption, MessageBoxButtons.OK, _
        MessageBoxIcon.Exclamation )
End Sub

You would use this generic exception handler with code like this:

Visual Basic Example of a Centralized Exception Reporter, Part 2

Try
    ...
Catch exceptionObject As Exception
    ReportException( CLASS_NAME, exceptionObject )
End Try

The code in this version of ReportException() is simple. In a real application, you could make the code as simple or as elaborate as needed to meet your exception handling needs.

If you do decide to build a centralized exception reporter, be sure to consider the general issues involved in centralized error handling, which are discussed in "Call an error-processing routine/object" in Section 8.3.

Standardize your project's use of exceptions

To keep exception handling as intellectually manageable as possible, you can standardize your use of exceptions in several ways:

• If you're working in a language like C++ that allows you to throw a variety of kinds of objects, data, and pointers, standardize on what specifically you will throw. For compatibility with other languages, consider throwing only objects derived from the Exception base class.
• Consider creating your own project-specific exception class, which can serve as the base class for all exceptions thrown on your project. This supports centralizing and standardizing logging, error reporting, and so on.
• Define the specific circumstances under which code is allowed to use throwcatch syntax to perform error processing locally.
• Define the specific circumstances under which code is allowed to throw an exception that won't be handled locally.
• Determine whether a centralized exception reporter will be used.
• Define whether exceptions are allowed in constructors and destructors.

Consider alternatives to exceptions

Several programming languages have supported exceptions for 5-10 years or more, but little conventional wisdom has emerged about how to use them safely.

Some programmers use exceptions to handle errors just because their language provides that particular error-handling mechanism. You should always consider the full set of error-handling alternatives: handling the error locally, propagating the error by using an error code, logging debug information to a file, shutting down the system, or using some other approach. Handling errors with exceptions just because your language provides exception handling is a classic example of programming in a language rather than programming into a language. (For details on that distinction, see Section 4.3, "Your Location on the Technology Wave," and Section 34.4, "Program into Your Language, Not in It."

Finally, consider whether your program really needs to handle exceptions, period. As Bjarne Stroustrup points out, sometimes the best response to a serious run-time error is to release all acquired resources and abort. Let the user rerun the program with proper input (Stroustrup 1997).

Chapter 9: The Pseudocode Programming Process (PPP)

9.1 Summary of Steps in Building Classes and Routines

Class construction can be approached from numerous directions, but usually it's an iterative process of creating a general design for the class, enumerating specific routines within the class, constructing specific routines, and checking class construction as a whole. As Figure 9-1 suggests, class creation can be a messy process for all the reasons that design is a messy process (reasons that are described in Section 5.1, "Design Challenges").

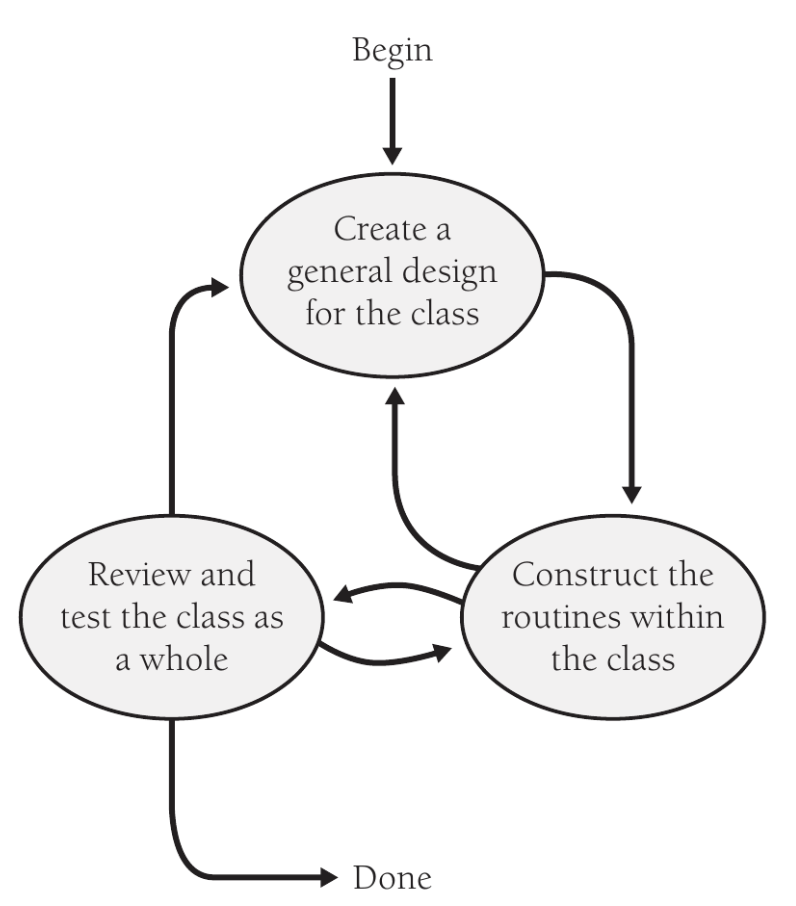

• Figure 9-1 Details of class construction vary, but the activities generally occur in the order shown here.

Steps in Creating a Class

The key steps in constructing a class are:

Create a general design for the class

Class design includes numerous specific issues. Define the class's specific responsibilities, define what "secrets" the class will hide, and define exactly what abstraction the class interface will capture. Determine whether the class will be derived from another class and whether other classes will be allowed to derive from it. Identify the class's key public methods, and identify and design any nontrivial data members used by the class. Iterate through these topics as many times as needed to create a straightforward design for the routine. These considerations and many others are discussed in more detail in Chapter 6, "Working Classes."

Construct each routine within the class

Once you've identified the class's major routines in the first step, you must construct each specific routine. Construction of each routine typically unearths the need for additional routines, both minor and major, and issues arising from creating those additional routines often ripple back to the overall class design.

Review and test the class as a whole

Normally, each routine is tested as it's created. After the class as a whole becomes operational, the class as a whole should be reviewed and tested for any issues that can't be tested at the individual-routine level.

Steps in Building a Routine

Many of a class's routines will be simple and straightforward to implement: accessor routines, pass-throughs to other objects' routines, and the like. Implementation of other routines will be more complicated, and creation of those routines benefits from a systematic approach. The major activities involved in creating a routine-designing the routine, checking the design, coding the routine, and checking the code-are typically performed in the order shown in Figure 9-2.

• Figure 9-2 These are the major activities that go into constructing a routine. They're usually performed in the order shown.

Experts have developed numerous approaches to creating routines, and my favorite approach is the Pseudocode Programming Process, described in the next section.

9.2 Pseudocode for Pros

The term "pseudocode" refers to an informal, English-like notation for describing how an algorithm, a routine, a class, or a program will work. The Pseudocode Programming Process defines a specific approach to using pseudocode to streamline the creation of code within routines.

Because pseudocode resembles English, it's natural to assume that any English-like description that collects your thoughts will have roughly the same effect as any other. In practice, you'll find that some styles of pseudocode are more useful than others. Here are guidelines for using pseudocode effectively:

• Use English-like statements that precisely describe specific operations.
• Avoid syntactic elements from the target programming language. Pseudocode allows you to design at a slightly higher level than the code itself. When you use programming-language constructs, you sink to a lower level, eliminating the main benefit of design at a higher level, and you saddle yourself with unnecessary syntactic restrictions.
• Write pseudocode at the level of intent. Describe the meaning of the approach rather than how the approach will be implemented in the target language.
• Write pseudocode at a low enough level that generating code from it will be nearly automatic. If the pseudocode is at too high a level, it can gloss over problematic details in the code. Refine the pseudocode in more and more detail until it seems as if it would be easier to simply write the code.

Once the pseudocode is written, you build the code around it and the pseudocode turns into programming-language comments. This eliminates most commenting effort. If the pseudocode follows the guidelines, the comments will be complete and meaningful.

Here's an example of a design in pseudocode that violates virtually all the principles just described:

Example of Bad Pseudocode

increment resource number by 1
allocate a dlg struct using malloc
if malloc() returns NULL then return 1
invoke OSrsrc_init to initialize a resource for the operating system
*hRsrcPtr = resource number
return 0

What is the intent of this block of pseudocode? Because it's poorly written, it's hard to tell. This so-called pseudocode is bad because it includes target language coding details, such as *hRsrcPtr (in specific C-language pointer notation) and malloc() (a specific C-language function). This pseudocode block focuses on how the code will be written rather than on the meaning of the design. It gets into coding details-whether the routine returns a 1 or a 0 . If you think about this pseudocode from the standpoint of whether it will turn into good comments, you'll begin to understand that it isn't much help.

Here's a design for the same operation in a much-improved pseudocode:

Example of Good Pseudocode

Keep track of current number of resources in use
If another resource is available
    Allocate a dialog box structure
    If a dialog box structure could be allocated
        Note that one more resource is in use
        Initialize the resource
        Store the resource number at the location provided by the caller
    Endif
Endif
Return true if a new resource was created; else return false

This pseudocode is better than the first because it's written entirely in English; it doesn't use any syntactic elements of the target language. In the first example, the pseudocode could have been implemented only in C . In the second example, the pseudocode doesn't restrict the choice of languages. The second block of pseudocode is also written at the level of intent. What does the second block of pseudocode mean? It is probably easier for you to understand than the first block.

Even though it's written in clear English, the second block of pseudocode is precise and detailed enough that it can easily be used as a basis for programming-language code. When the pseudocode statements are converted to comments, they'll be a good explanation of the code's intent.

Here are the benefits you can expect from using this style of pseudocode:

• Pseudocode makes reviews easier. You can review detailed designs without examining source code. Pseudocode makes low-level design reviews easier and reduces the need to review the code itself.

• Pseudocode supports the idea of iterative refinement. You start with a high-level design, refine the design to pseudocode, and then refine the pseudocode to source code. This successive refinement in small steps allows you to check your design as you drive it to lower levels of detail. The result is that you catch highlevel errors at the highest level, mid-level errors at the middle level, and low-level errors at the lowest level-before any of them becomes a problem or contaminates work at more detailed levels.

• Pseudocode makes changes easier. A few lines of pseudocode are easier to change than a page of code. Would you rather change a line on a blueprint or rip out a wall and nail in the two-by-fours somewhere else? The effects aren't as physically dramatic in software, but the principle of changing the product when it's most malleable is the same. One of the keys to the success of a project is to catch errors at the "least-value stage," the stage at which the least effort has been invested. Much less has been invested at the pseudocode stage than after full coding, testing, and debugging, so it makes economic sense to catch the errors early.

• Pseudocode minimizes commenting effort. In the typical coding scenario, you write the code and add comments afterward. In the PPP, the pseudocode statements become the comments, so it actually takes more work to remove the comments than to leave them in.

• Pseudocode is easier to maintain than other forms of design documentation. With other approaches, design is separated from the code, and when one changes, the two fall out of agreement. With the PPP, the pseudocode statements become comments in the code. As long as the inline comments are maintained, the pseudocode's documentation of the design will be accurate.

As a tool for detailed design, pseudocode is hard to beat. One survey found that programmers prefer pseudocode for the way it eases construction in a programming language, for its ability to help them detect insufficiently detailed designs, and for the ease of documentation and ease of modification it provides (Ramsey, Atwood, and Van Doren 1983). Pseudocode isn't the only tool for detailed design, but pseudocode and the PPP are useful tools to have in your programmer's toolbox. Try them. The next section shows you how.

9.3 Constructing Routines by using the PPP

This section describes the activities involved in constructing a routine, namely these:

• Design the routine.
• Code the routine.
• Check the code.
• Clean up loose ends.
• Repeat as needed.

Design the Routine

Once you've identified a class's routines, the first step in constructing any of the class's more complicated routines is to design it. Suppose that you want to write a routine to output an error message depending on an error code, and suppose that you call the routine ReportErrorMessage(). Here's an informal spec for ReportErrorMessage():

ReportErrorMessage() takes an error code as an input argument and outputs an error message corresponding to the code. It's responsible for handling invalid codes. If the program is operating interactively, ReportErrorMessage() displays the message to the user. If it's operating in command-line mode, ReportErrorMessage() logs the message to a message file. After outputting the message, ReportErrorMessage() returns a status value, indicating whether it succeeded or failed.

The rest of the chapter uses this routine as a running example. The rest of this section describes how to design the routine.

Check the prerequisites

Before doing any work on the routine itself, check to see that the job of the routine is well defined and fits cleanly into the overall design. Check to be sure that the routine is actually called for, at the very least indirectly, by the project's requirements.

Define the problem the routine will solve

State the problem the routine will solve in enough detail to allow creation of the routine. If the high-level design is sufficiently detailed, the job might already be done. The high-level design should at least indicate the following:

• The information the routine will hide
• Inputs to the routine
• Outputs from the routine
• Preconditions that are guaranteed to be true before the routine is called (input values within certain ranges, streams initialized, files opened or closed, buffers filled or flushed, etc.)
• Postconditions that the routine guarantees will be true before it passes control back to the caller (output values within specified ranges, streams initialized, files opened or closed, buffers filled or flushed, etc.)

Here's how these concerns are addressed in the ReportErrorMessage() example:

• The routine hides two facts: the error message text and the current processing method (interactive or command line).
• There are no preconditions guaranteed to the routine.
• The input to the routine is an error code.
• Two kinds of output are called for: the first is the error message, and the second is the status that ReportErrorMessage() returns to the calling routine.
• The routine guarantees that the status value will have a value of either Success or Failure.

Name the routine

Naming the routine might seem trivial, but good routine names are one sign of a superior program and they're not easy to come up with. In general, a routine should have a clear, unambiguous name. If you have trouble creating a good name, that usually indicates that the purpose of the routine isn't clear. A vague, wishywashy name is like a politician on the campaign trail. It sounds as if it's saying something, but when you take a hard look, you can't figure out what it means. If you can make the name clearer, do so. If the wishy-washy name results from a wishy-washy design, pay attention to the warning sign. Back up and improve the design.

In the example, ReportErrorMessage() is unambiguous. It is a good name.

Decide how to test the routine

As you're writing the routine, think about how you can test it. This is useful for you when you do unit testing and for the tester who tests your routine independently.

In the example, the input is simple, so you might plan to test ReportErrorMessage() with all valid error codes and a variety of invalid codes.

Research functionality available in the standard libraries

The single biggest way to improve both the quality of your code and your productivity is to reuse good code. If you find yourself grappling to design a routine that seems overly complicated, ask whether some or all of the routine's functionality might already be available in the library code of the language, platform, or tools you're using. Ask whether the code might be available in library code maintained by your company. Many algorithms have already been invented, tested, discussed in the trade literature, reviewed, and improved. Rather than spending your time inventing something when someone has already written a Ph.D. dissertation on it, take a few minutes to look through the code that's already been written and make sure you're not doing more work than necessary.

Think about error handling

Think about all the things that could possibly go wrong in the routine. Think about bad input values, invalid values returned from other routines, and so on.

Routines can handle errors numerous ways, and you should choose consciously how to handle errors. If the program's architecture defines the program's error-handling strategy, you can simply plan to follow that strategy. In other cases, you have to decide what approach will work best for the specific routine.

Think about efficiency

Depending on your situation, you can address efficiency in one of two ways. In the first situation, in the vast majority of systems, efficiency isn't critical. In such a case, see that the routine's interface is well abstracted and its code is readable so that you can improve it later if you need to. If you have good encapsulation, you can replace a slow, resource-hogging, high-level language implementation with a better algorithm or a fast, lean, low-level language implementation, and you won't affect any other routines.

In the second situation-in the minority of systems-performance is critical. The performance issue might be related to scarce database connections, limited memory, few available handles, ambitious timing constraints, or some other scarce resource. The architecture should indicate how many resources each routine (or class) is allowed to use and how fast it should perform its operations.

Design your routine so that it will meet its resource and speed goals. If either resources or speed seems more critical, design so that you trade resources for speed or vice versa. It's acceptable during initial construction of the routine to tune it enough to meet its resource and speed budgets.

Aside from taking the approaches suggested for these two general situations, it's usually a waste of effort to work on efficiency at the level of individual routines. The big optimizations come from refining the high-level design, not the individual routines. You generally use micro-optimizations only when the high-level design turns out not to support the system's performance goals, and you won't know that until the whole program is done. Don't waste time scraping for incremental improvements until you know they're needed.

Research the algorithms and data types

If functionality isn't available in the available libraries, it might still be described in an algorithms book. Before you launch into writing complicated code from scratch, check an algorithms book to see what's already available. If you use a predefined algorithm, be sure to adapt it correctly to your programming language.

Write the pseudocode

You might not have much in writing after you finish the preceding steps. The main purpose of the steps is to establish a mental orientation that's useful when you actually write the routine.

With the preliminary steps completed, you can begin to write the routine as high-level pseudocode. Go ahead and use your programming editor or your integrated environment to write the pseudocode-the pseudocode will be used shortly as the basis for programming-language code.

Start with the general and work toward something more specific. The most general part of a routine is a header comment describing what the routine is supposed to do, so first write a concise statement of the purpose of the routine. Writing the statement will help you clarify your understanding of the routine. Trouble in writing the general comment is a warning that you need to understand the routine's role in the program better. In general, if it's hard to summarize the routine's role, you should probably assume that something is wrong. Here's an example of a concise header comment describing a routine:

Example of a Header Comment for a Routine

This routine outputs an error message based on an error code supplied by the calling routine. The way it outputs the message depends on the current processing state, which it retrieves on its own. It returns a value indicating success or failure.

After you've written the general comment, fill in high-level pseudocode for the routine. Here's the pseudocode for this example:

Example of Pseudocode for a Routine

This routine outputs an error message based on an error code supplied by the calling routine. The way it outputs the message depends on the current processing state, which it retrieves on its own. It returns a value indicating success or failure.

set the default status to "fail"
look up the message based on the error code

if the error code is valid
	if doing interactive processing, display the error message interactively and declare success

	if doing command line processing, log the error message to the command line and declare success

if the error code isn't valid, notify the user that an internal error has been detected
return status information

Again, note that the pseudocode is written at a fairly high level. It certainly isn't written in a programming language. Instead, it expresses in precise English what the routine needs to do.

Think about the data

You can design the routine's data at several different points in the process. In this example, the data is simple and data manipulation isn't a prominent part of the routine. If data manipulation is a prominent part of the routine, it's worthwhile to think about the major pieces of data before you think about the routine's logic. Definitions of key data types are useful to have when you design the logic of a routine.

Check the pseudocode

Once you've written the pseudocode and designed the data, take a minute to review the pseudocode you've written. Back away from it, and think about how you would explain it to someone else.

Ask someone else to look at it or listen to you explain it. You might think that it's silly to have someone look at 11 lines of pseudocode, but you'll be surprised. Pseudocode can make your assumptions and high-level mistakes more obvious than program-ming-language code does. People are also more willing to review a few lines of pseudocode than they are to review 35 lines of C++ or Java.

Make sure you have an easy and comfortable understanding of what the routine does and how it does it. If you don't understand it conceptually, at the pseudocode level, what chance do you have of understanding it at the programming-language level? And if you don't understand it, who else will?

Try a few ideas in pseudocode, and keep the best (iterate)

Try as many ideas as you can in pseudocode before you start coding. Once you start coding, you get emotionally involved with your code and it becomes harder to throw away a bad design and start over.

The general idea is to iterate the routine in pseudocode until the pseudocode statements become simple enough that you can fill in code below each statement and leave the original pseudocode as documentation. Some of the pseudocode from your first attempt might be high-level enough that you need to decompose it further. Be sure you do decompose it further. If you're not sure how to code something, keep working with the pseudocode until you are sure. Keep refining and decomposing the pseudocode until it seems like a waste of time to write it instead of the actual code.

Code the Routine

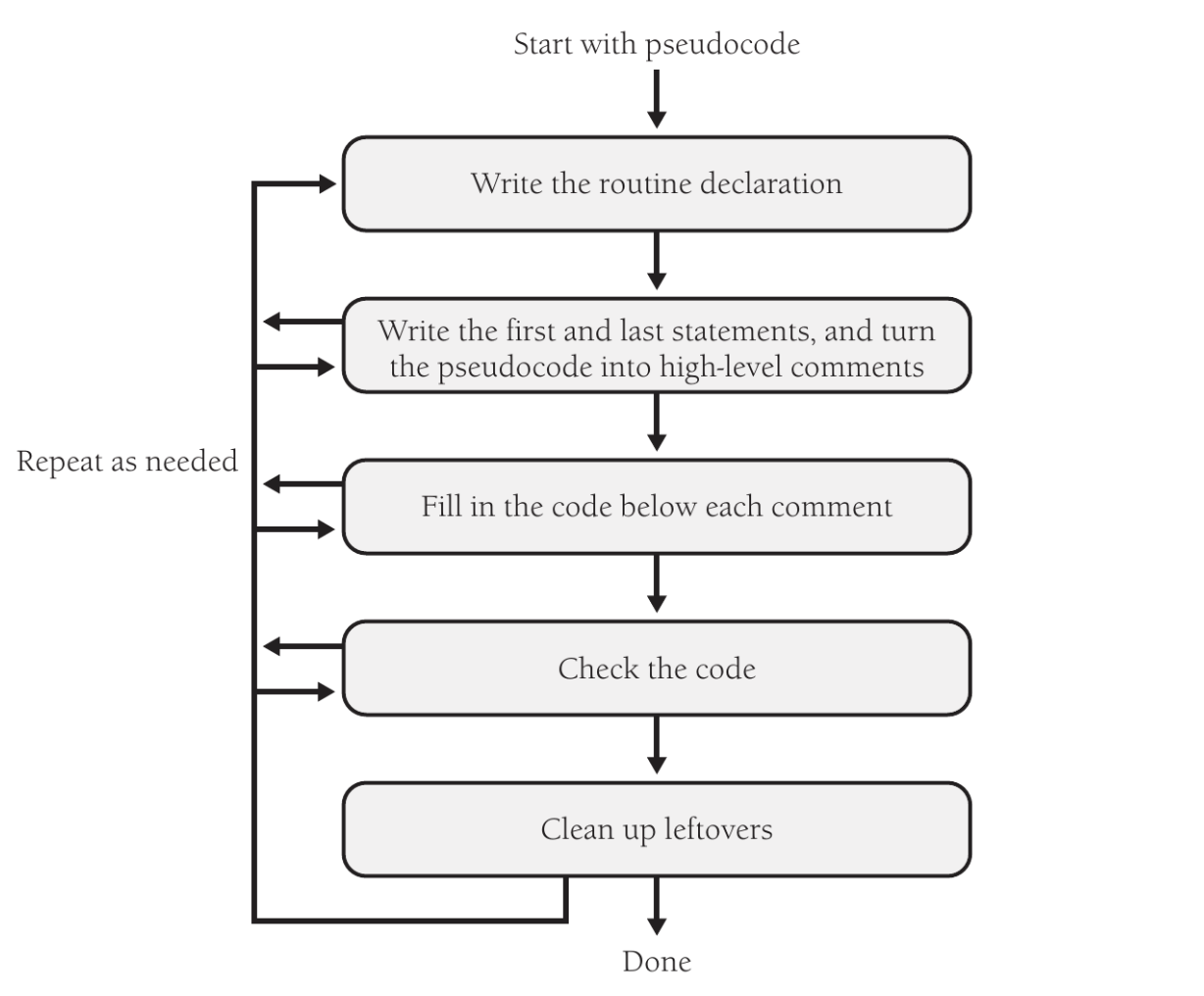

Once you've designed the routine, construct it. You can perform construction steps in a nearly standard order, but feel free to vary them as you need to. Figure $9-3$ shows the steps in constructing a routine.

Write the routine declaration

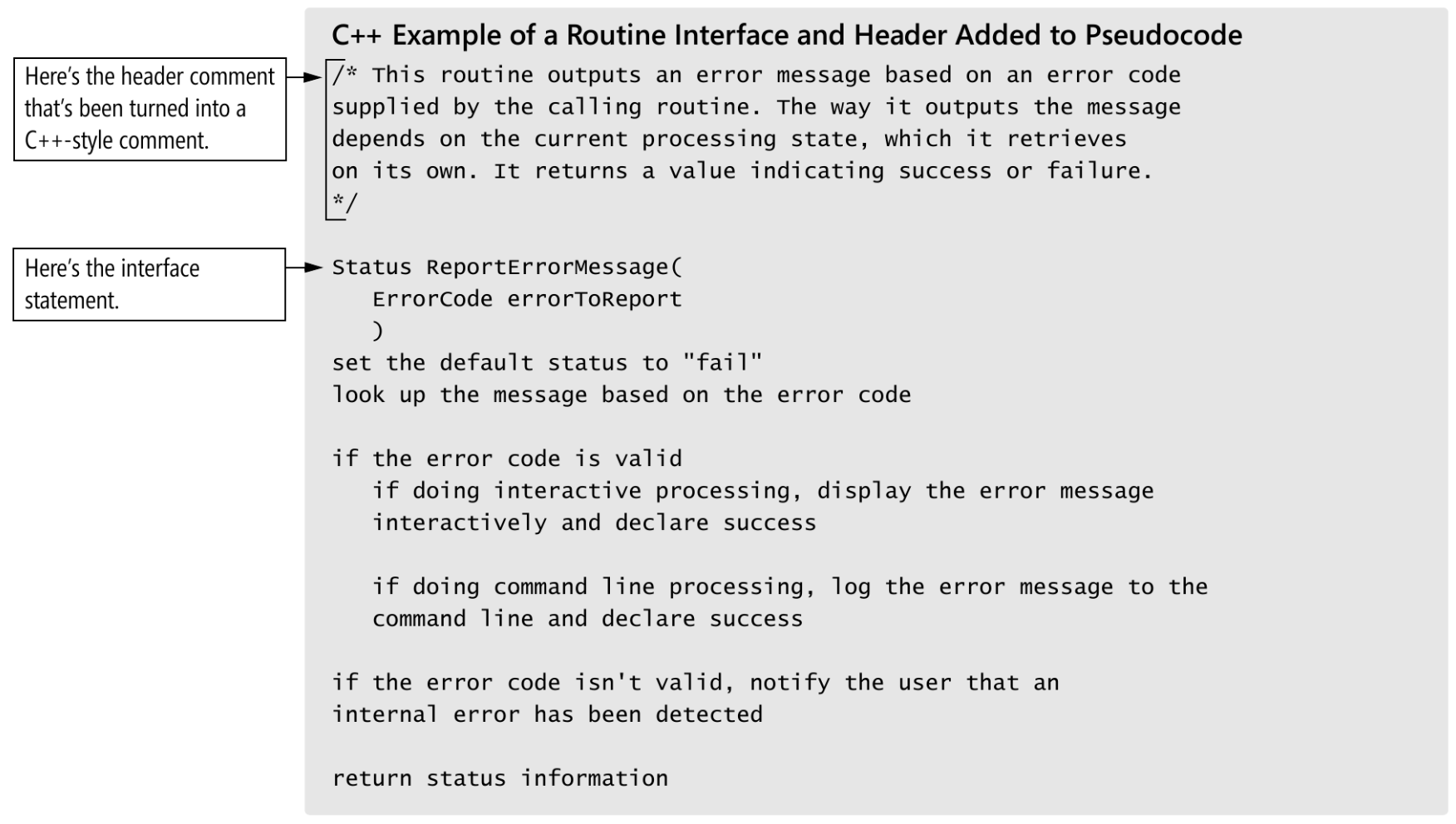

Write the routine interface statement-the function declaration in C++, method declaration in Java, function or sub procedure declaration in Microsoft Visual Basic, or whatever your language calls for. Turn the original header comment into a programming-language comment. Leave it in position above the pseudocode you've already written. Here are the example routine's interface statement and header in C++:

This is a good time to make notes about any interface assumptions. In this case, the interface variable errorToReport is straightforward and typed for its specific purpose, so it doesn't need to be documented.

Turn the pseudocode into high-level comments Keep the ball rolling by writing the first and last statements: $\{$ and $\}$ in C++. Then turn the pseudocode into comments. Here's how it would look in the example:

C++ Example of Writing the First and Last Statements Around Pseudocode

/* This routine outputs an error message based on an error code
supplied by the calling routine. The way it outputs the message
depends on the current processing state, which it retrieves
on its own. It returns a value indicating success or failure.
*/
Status ReportErrorMessage(
    ErrorCode errorToReport
    ) {
    // set the default status to "fail"
    // look up the message based on the error code
    // if the error code is valid
        // if doing interactive processing, display the error message
        // interactively and declare success
        // if doing command line processing, log the error message to the
        // command line and declare success
    // if the error code isn't valid, notify the user that an
    // internal error has been detected
    // return status information
}

At this point, the character of the routine is evident. The design work is complete, and you can sense how the routine works even without seeing any code. You should feel that converting the pseudocode to programming-language code will be mechanical, natural, and easy. If you don't, continue designing in pseudocode until the design feels solid.

Fill in the code below each comment

Fill in the code below each line of pseudocode comment. The process is a lot like writing a term paper. First you write an outline, and then you write a paragraph for each point in the outline. Each pseudocode comment describes a block or paragraph of code. Like the lengths of literary paragraphs, the lengths of code paragraphs vary according to the thought being expressed, and the quality of the paragraphs depends on the vividness and focus of the thoughts in them.

In this example, the first two pseudocode comments give rise to two lines of code:

C++ Example of Expressing Pseudocode Comments as Code

/* This routine outputs an error message based on an error code supplied by the calling routine. The way it outputs the message depends on the current processing state, which it retrieves on its own. It returns a value indicating success or failure. */

Status ReportErrorMessage(
	ErrorCode errorToReport
	) {
	// set the default status to "fail"
	Status errorMessageStatus = Status_Failure;

	// look up the message based on the error code
	Message errorMessage = LookupErrorMessage( errorToReport );

	// if the error code is valid
		// if doing interactive processing, display the error message
		// interactively and declare success

		// if doing command line processing, log the error message to the
		// command line and declare success

    // if the error code isn't valid, notify the user that an
    // internal error has been detected

    // return status information
}

This is a start on the code. The variable errorMessage is used, so it needs to be declared. If you were commenting after the fact, two lines of comments for two lines of code would nearly always be overkill. In this approach, however, it's the semantic content of the comments that's important, not how many lines of code they comment. The comments are already there, and they explain the intent of the code, so leave them in.

The code below each of the remaining comments needs to be filled in:

C++ Example of a Complete Routine Created with the Pseudocode Programming Process

/* This routine outputs an error message based on an error code supplied by the calling routine. The way it outputs the message depends on the current processing state, which it retrieves on its own. It returns a value indicating success or failure. */

Status ReportErrorMessage(
    ErrorCode errorToReport
    ) {
    // set the default status to "fail"
    Status errorMessageStatus = Status_Failure;

    // look up the message based on the error code
    Message errorMessage = LookupErrorMessage( errorToReport );

    // if the error code is valid
    if ( errorMessage.ValidCode() ) {
        // determine the processing method
        ProcessingMethod errorProcessingMethod = CurrentProcessingMethod();

        // if doing interactive processing, display the error message
        // interactively and declare success
        if ( errorProcessingMethod == ProcessingMethod_Interactive ) {
            DisplayInteractiveMessage( errorMessage.Text() );
            errorMessageStatus = Status_Success;
        }

        // if doing command line processing, log the error message to the
        // command line and declare success
        else if ( errorProcessingMethod == ProcessingMethod_CommandLine ) {
            CommandLine messageLog;
            if ( messageLog.Status() == CommandLineStatus_Ok ) {
                messageLog.AddToMessageQueue( errorMessage.Text() );
                messageLog.FlushMessageQueue();
                errorMessageStatus = Status_Success;
            }
        else {
                // can't do anything because the routine is already error processing
            }
        else {
            // can't do anything because the routine is already error processing
        }
    }

    // if the error code isn't valid, notify the user that an
    // internal error has been detected
    else {
        DisplayInteractiveMessage(
            "Internal Error: Invalid error code in ReportErrorMessage()"
        );
    }

    // return status information
    return errorMessageStatus;
}

Each comment has given rise to one or more lines of code. Each block of code forms a complete thought based on the comment. The comments have been retained to provide a higher-level explanation of the code. All variables have been declared and defined close to the point they're first used. Each comment should normally expand to about 2 to 10 lines of code. (Because this example is just for purposes of illustration, the code expansion is on the low side of what you should usually experience in practice.)

Now look again at the spec on page 221 and the initial pseudocode on page 224. The original five-sentence spec expanded to 15 lines of pseudocode (depending on how you count the lines), which in turn expanded into a page-long routine. Even though the spec was detailed, creation of the routine required substantial design work in pseudocode and code. That low-level design is one reason why "coding" is a nontrivial task and why the subject of this book is important.

Check whether code should be further factored

In some cases, you'll see an explosion of code below one of the initial lines of pseudocode. In this case, you should consider taking one of two courses of action:

• Factor the code below the comment into a new routine. If you find one line of pseudocode expanding into more code that than you expected, factor the code into its own routine. Write the code to call the routine, including the routine name. If you've used the PPP well, the name of the new routine should drop out easily from the pseudocode. Once you've completed the routine you were originally creating, you can dive into the new routine and apply the PPP again to that routine.
• Apply the PPP recursively. Rather than writing a couple dozen lines of code below one line of pseudocode, take the time to decompose the original line of pseudocode into several more lines of pseudocode. Then continue filling in the code below each of the new lines of pseudocode.

Check the Code

After designing and implementing the routine, the third big step in constructing it is checking to be sure that what you've constructed is correct. Any errors you miss at this stage won't be found until later testing. They're more expensive to find and correct then, so you should find all that you can at this stage.

A problem might not appear until the routine is fully coded for several reasons. An error in the pseudocode might become more apparent in the detailed implementation logic. A design that looks elegant in pseudocode might become clumsy in the implementation language. Working with the detailed implementation might disclose an error in the architecture, high-level design, or requirements. Finally, the code might have an old-fashioned, mongrel coding error-nobody's perfect! For all these reasons, review the code before you move on.

Mentally check the routine for errors

The first formal check of a routine is mental. The cleanup and informal checking steps mentioned earlier are two kinds of mental checks. Another is executing each path mentally. Mentally executing a routine is difficult, and that difficulty is one reason to keep your routines small. Make sure that you check nominal paths and endpoints and all exception conditions. Do this both by yourself, which is called "desk checking," and with one or more peers, which is called a "peer review," a "walk-through," or an "inspection," depending on how you do it.

One of the biggest differences between hobbyists and professional programmers is the difference that grows out of moving from superstition into understanding. The word "superstition" in this context doesn't refer to a program that gives you the creeps or generates extra errors when the moon is full. It means substituting feelings about the code for understanding. If you often find yourself suspecting that the compiler or the hardware made an error, you're still in the realm of superstition. A study conducted many years ago found that only about five percent of all errors are hardware, compiler, or operating-system errors (Ostrand and Weyuker 1984). Today, that percentage would probably be even lower. Programmers who have moved into the realm of understanding always suspect their own work first because they know that they cause 95 percent of errors. Understand the role of each line of code and why it's needed. Nothing is ever right just because it seems to work. If you don't know why it works, it probably doesn't-you just don't know it yet.

Bottom line: A working routine isn't enough. If you don't know why it works, study it, discuss it, and experiment with alternative designs until you do.

Compile the routine

After reviewing the routine, compile it. It might seem inefficient to wait this long to compile since the code was completed several pages ago. Admittedly, you might have saved some work by compiling the routine earlier and letting the computer check for undeclared variables, naming conflicts, and so on.

You'll benefit in several ways, however, by not compiling until late in the process. The main reason is that when you compile new code, an internal stopwatch starts ticking. After the first compile, you step up the pressure: "I'll get it right with just one more compile." The "Just One More Compile" syndrome leads to hasty, error-prone changes that take more time in the long run. Avoid the rush to completion by not compiling until you've convinced yourself that the routine is right.

The point of this book is to show how to rise above the cycle of hacking something together and running it to see if it works. Compiling before you're sure your program works is often a symptom of the hacker mindset. If you're not caught in the hacking-and-compiling cycle, compile when you feel it's appropriate. But be conscious of the tug most people feel toward "hacking, compiling, and fixing" their way to a working program.

Here are some guidelines for getting the most out of compiling your routine:

• Set the compiler's warning level to the pickiest level possible. You can catch an amazing number of subtle errors simply by allowing the compiler to detect them.
• Use validators. The compiler checking performed by languages like $C$ can be supplemented by use of tools like lint. Even code that isn't compiled, such as HTML and JavaScript, can be checked by validation tools.
• Eliminate the causes of all error messages and warnings. Pay attention to what the messages tell you about your code. A large number of warnings often indicates low-quality code, and you should try to understand each warning you get. In practice, warnings you've seen again and again have one of two possible effects: you ignore them and they camouflage other, more important, warnings, or they simply become annoying. It's usually safer and less painful to rewrite the code to solve the underlying problem and eliminate the warnings.

Step through the code in the debugger

Once the routine compiles, put it into the debugger and step through each line of code. Make sure each line executes as you expect it to. You can find many errors by following this simple practice.

Test the code

Test the code using the test cases you planned or created while you were developing the routine. You might have to develop scaffolding to support your test cases-that is, code that's used to support routines while they're tested and that isn't included in the final product. Scaffolding can be a test-harness routine that calls your routine with test data, or it can be stubs called by your routine.

Remove errors from the routine

Once an error has been detected, it has to be removed. If the routine you're developing is buggy at this point, chances are good that it will stay buggy. If you find that a routine is unusually buggy, start over. Don't hack around it-rewrite it. Hacks usually indicate incomplete understanding and guarantee errors both now and later. Creating an entirely new design for a buggy routine pays off. Few things are more satisfying than rewriting a problematic routine and never finding another error in it.

Clean Up Leftovers

When you've finished checking your code for problems, check it for the general characteristics described throughout this book. You can take several cleanup steps to make sure that the routine's quality is up to your standards:

• Check the routine's interface. Make sure that all input and output data is accounted for and that all parameters are used. For more details, see Section 7.5, "How to Use Routine Parameters."
• Check for general design quality. Make sure the routine does one thing and does it well, that it's loosely coupled to other routines, and that it's designed defensively. For details, see Chapter 7, "High-Quality Routines."
• Check the routine's variables. Check for inaccurate variable names, unused objects, undeclared variables, improperly initialized objects, and so on. For details, see the chapters on using variables, Chapters 10 through 13.
• Check the routine's statements and logic. Check for off-by-one errors, infinite loops, improper nesting, and resource leaks. For details, see the chapters on statements, Chapters 14 through 19.
• Check the routine's layout. Make sure you've used white space to clarify the logical structure of the routine, expressions, and parameter lists. For details, see Chapter 31, "Layout and Style."
• Check the routine's documentation. Make sure the pseudocode that was translated into comments is still accurate. Check for algorithm descriptions, for documentation on interface assumptions and nonobvious dependencies, for justification of unclear coding practices, and so on. For details, see Chapter 32, "Self-Documenting Code."
• Remove redundant comments. Sometimes a pseudocode comment turns out to be redundant with the code the comment describes, especially when the PPP has been applied recursively and the comment just precedes a call to a well-named routine.

Repeat Steps as Needed

If the quality of the routine is poor, back up to the pseudocode. High-quality programming is an iterative process, so don't hesitate to loop through the construction activities again.

9.4 Alternatives to the PPP

For my money, the PPP is the best method for creating classes and routines. Here are some different approaches recommended by other experts. You can use these approaches as alternatives or as supplements to the PPP.

Test-first development

Test-first is a popular development style in which test cases are written prior to writing any code. This approach is described in more detail in "Test First or Test Last?" in Section 22.2. A good book on test-first programming is Kent Beck's Test-Driven Development: By Example (Beck 2003).

Refactoring

Refactoring is a development approach in which you improve code through a series of semantic preserving transformations. Programmers use patterns of bad code or "smells" to identify sections of code that need to be improved. Chapter 24, "Refactoring," describes this approach in detail, and a good book on the topic is Martin Fowler's Refactoring: Improving the Design of Existing Code (Fowler 1999).

Design by contract

Design by contract is a development approach in which each routine is considered to have preconditions and postconditions. This approach is described in "Use assertions to document and verify preconditions and postconditions" in Section 8.2. The best source of information on design by contract is Bertrand Meyers's Object-Oriented Software Construction (Meyer 1997).

Hacking?

Some programmers try to hack their way toward working code rather than using a systematic approach like the PPP. If you've ever found that you've coded yourself into a corner in a routine and have to start over, that's an indication that the PPP might work better. If you find yourself losing your train of thought in the middle of coding a routine, that's another indication that the PPP would be beneficial. Have you ever simply forgotten to write part of a class or part of routine? That hardly ever happens if you're using the PPP. If you find yourself staring at the computer screen not knowing where to start, that's a surefire sign that the PPP would make your programming life easier.

Key Points

• Constructing classes and constructing routines tends to be an iterative process. Insights gained while constructing specific routines tend to ripple back through the class's design.
• Writing good pseudocode calls for using understandable English, avoiding features specific to a single programming language, and writing at the level of intent (describing what the design does rather than how it will do it).
• The Pseudocode Programming Process is a useful tool for detailed design and makes coding easy. Pseudocode translates directly into comments, ensuring that the comments are accurate and useful.
• Don't settle for the first design you think of. Iterate through multiple approaches in pseudocode and pick the best approach before you begin writing code.
• Check your work at each step, and encourage others to check it too. That way, you'll catch mistakes at the least expensive level, when you've invested the least amount of effort.
