02 - Logistic Regression For Binary Clasification

Class: CSCE-421

Notes:

Digits Data

• Numbers on an envelope that represent a zip code

Each digit is a 16 * 16 image.

[-1 -1 -1 -1 -1 -1 -1 -0.63 0.86 -0.17 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -0.99 0.3 1 0.31 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 ... -0.94 -1 -1 -1 -1 -1 -1 -1 -0.97 -0.42 0.30 0.82 1 0.48 -0.47 -0.99 -1 -1 -1 -1]

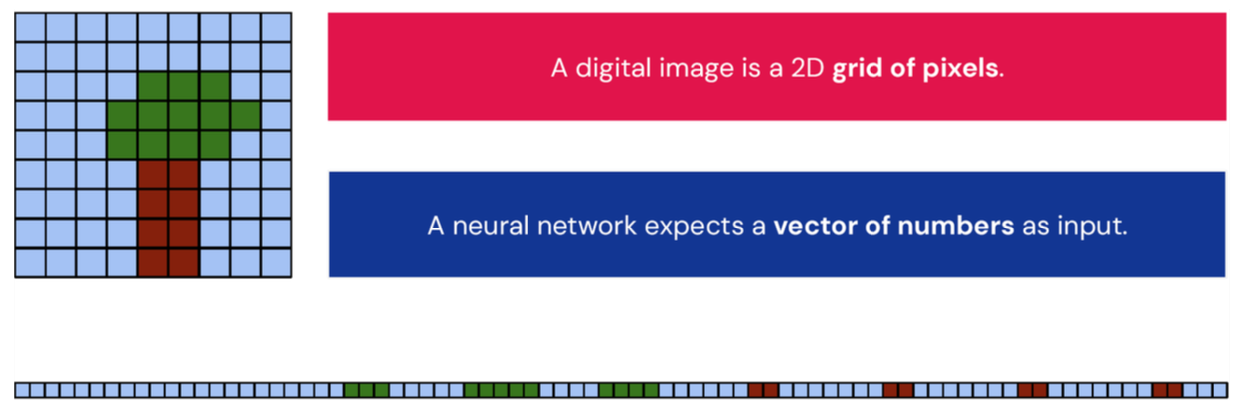

• Basically writing a 16 * 16 picture into a long vector

• We are trying to predict 0-9 numbers (10 classes)
  • Logistic Regression only works for two classes (binary data)
  • If you want to make this work for multiple other classes you have to somehow simulate a binary property

Image Representations

• For the computer this is a two dimensional number array

Transformations on Images

• Field of view changed, but object remains set, but the vector changes (moved a little bit)
• The predictions should remain the same but the result of the dot product will be different

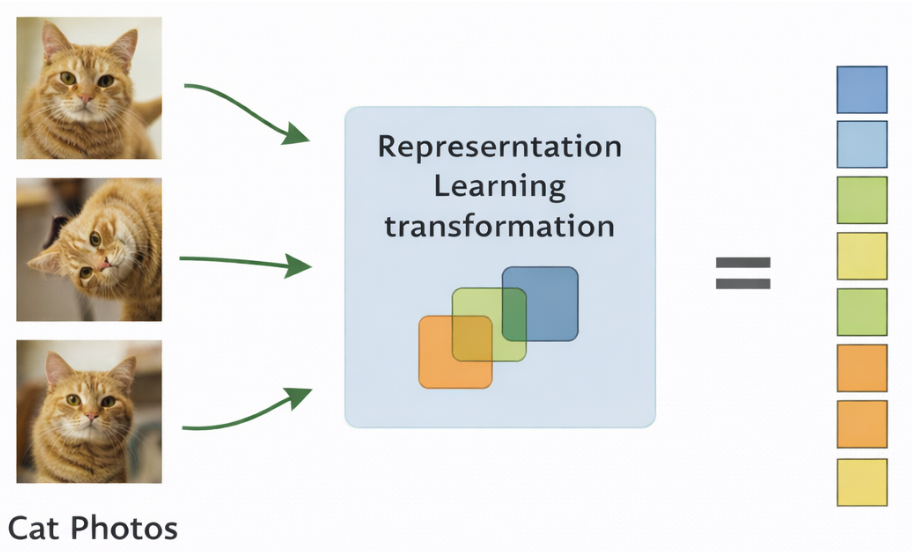

Learning Invariant Representations

• If you rotate an image by 90 degrees, or if you just change it a little bit, predictions must stay the same
• Your $x$ should somehow remain the same, but this is not easy to achieve, because any change in the input can change the operations performed to reach a prediction
• You have to design this property that if you rotate the image by some degrees it will return the same prediction.

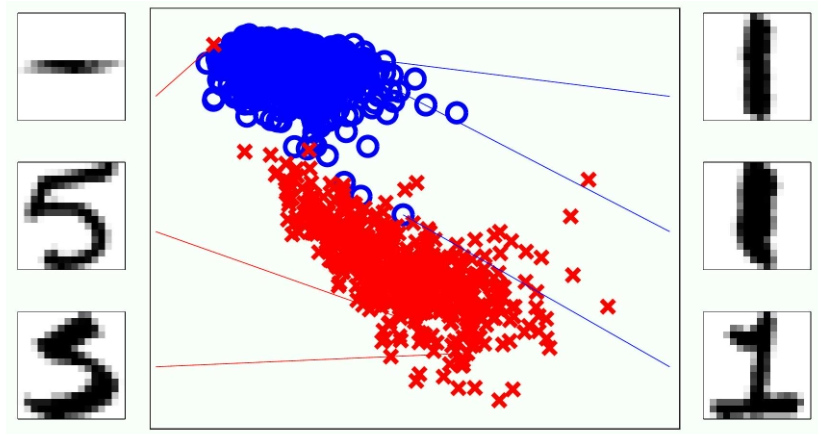

Intensity and Symmetry Features

Feature: an important property of the input that you think is useful for classification.

• This only works for 1s and 5s
• Intensity: represents more ink in the image

...

Logistic Regression: Predict Probabilities

Will someone have a heart attack over the next year?

Logistic Regression: Predict the probability of heart attack: $\equiv y\in [0,1]$

• Theta is the number of inputs/outputs

• Use y +- 1, Do not use y = 0,1.

• To make predictions on logistic regression is easy, $w$ is given, $x$ is given, all you need to do is compute transforms and they will just give a number

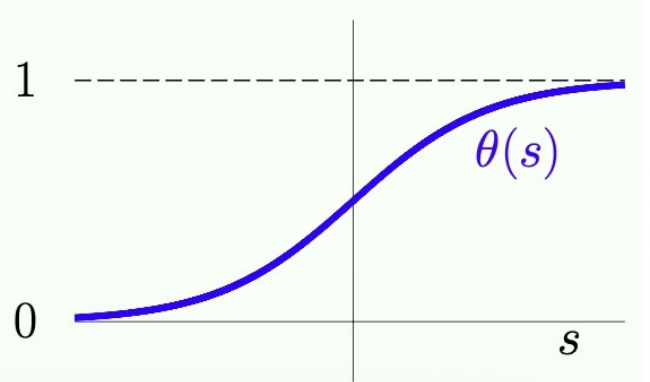

• Properties

  1. Probabilities are bounded by 0 and 1.
  2. $\theta (-s)=1-\theta (s)$$$\theta (-s)=\frac{1}{1+e^s}=\frac{e^{-s}}{e^{-s}+1}=\frac{1+e^{-s}-1}{e^{-s}+1}=1-\theta (s)$$
  3. $w^{T}x$ is the linear signal and in order to get a prediction we are just multiplying it by $\theta$ (threshold of the output)
     • Is logistic regression still a linear model?
       • This is a two class case (2 dimensional)
       • You are multiplying a "linear" signal to a non linear function ($\theta$). Does that change linearity?
       • The function of $\theta$ is monotonically increasing
         • Still each $x$ val is attached to a $y$ val, so using a threshold on $x$ would have an equivalent threshold on $y$
         • If the function was not monotonic we would have two or more thresholds for in $y$ for a single threshold in $x$
       • Conclusion: Logistic regression is still a linear model.

The Data is Still Binary, +-1

• We cannot measure a probability.
• We can only see the occurrence of an event and try to infer a probability.

Setting

We are trying to learn the target function

The data does not give us the value of f explicitly. Rather, it gives us samples generated by this probability:

To learn from such data, we need to define a proper error measure that gauges how close a given hypothesis h is to f in terms of these examples

What Makes an $h$ Good?

The Math

’fiting’ the data means finding a good h

h is good if:

A simple error measure that captures this:

• In linear regression we computed the derivative
• With logistic regression is similar, the only thing is that you cannot derive the root
  • We would have some initial case of $w$ You have to use an iterative procedure to compute $w$.
  • Suppose we have $(x_1+1)$. We need $\theta (w^{T}x)$ to be adjusted to fit this data.
    • The output is the probability that this input $x$ belongs to the +1 class
    • What should we do in order to do this?
      • We need the input to make $w^T$ as larger as necessary
      • If we added a $(x_2-1)$ we would need $w^T$ to be as smaller as possible.

The Cross Entropy Error Measure

The Math

• We want the law (the thing in parenthesis) to be minimized (be as as small as possible)
  • $\ln$ is a monotonic function, so it is minimized by it.
  • This is not the only way we can achieve minimization
• The last $x$ should be $x_n$

It looks complicated and ugly (ln, e^(·), ...),

But,

• it is based on an intuitive probabilistic interpretation of h.
• it is very convenient and mathematically friendly (’easy’ to minimize).

Verify:

• $y_n=+1$ encourages $w^T{x}_n\gg 0$, so $\theta (w^T{x}_n)\approx 1$
• $y_n=-1$ encourages $w^T{x}_n\ll 0$, so $\theta (w^T{x}_n)\approx 0$

The Probabilistic Interpretation

The Math

Suppose that $h(x)=\theta (w^{T}x)$ closely captures $\mathbb{P}[+1\mid x]$:

Given:

we have

So, more compactly,

• Note this is purely for notational purposes

The Likelihood

The Math

• "Probability of y given x written in the same formula"
• We will need to use this when we derive our maximum likelihood
• This is a probability (is between 0 and 1)
• If we plugin each of our data points, each output will be somewhere close to 1.
  • $y_i=+1$, we want $\theta (w^{T}x)$ as large as possible
  • $y_i=-1$, we want $\theta (w^{T}x)$ as small as possible
• Recall: $(x_1,y_1),\cdots ,(x_N,y_N)$ are independently generated

Likelihood:

• The probability of getting the $y_1,\cdots ,y_N$ in D from the corresponding $x_1,\cdots ,x_N$$$$$

\begin{aligned}
& \max \prod_{n=1}^N P\left(y_n \mid x_n\right) \
\Leftrightarrow & \max \ln \left(\prod_{n=1}^N P\left(y_n \mid x_n\right)\right) \
\end

\begin{aligned}
\equiv & \max \sum_{n=1}^N \ln P\left(y_n \mid x_n\right) \
\end

• We added a negative and changed max to min
• Note this became equivalent (not equal) because we are doing $1/N$. (we need to divide by the number of values)

• Note again because of log properties
• We basically just moved the negative inside, this affects the log

• We specialize to our "model" here
• We basically made $\theta$ to be explicit by rewriting likelihood

• Basically just use the definition of $\theta$.

View

• $(x,y=+-1)$, $q=[\theta (w^{T}x),1-\theta (w^{T}x)]$
• Look at the one hot vector?
  • If true label is +1, then $q=[1,0{]}^T$
  • If true label is -1, then $q=[0,1{]}^T$

Cross Entropy

• CE tries to maximize the log probability of the correct class
• $g_i$ is each of the elements
• $q_i$ is the probability
• Why does this make sense?
  • Only one term in the one hot vector is not zero
  • That term turns our model into the correct class
• Whenever we try about logs we have to minimize, that is the reason we put that negative there

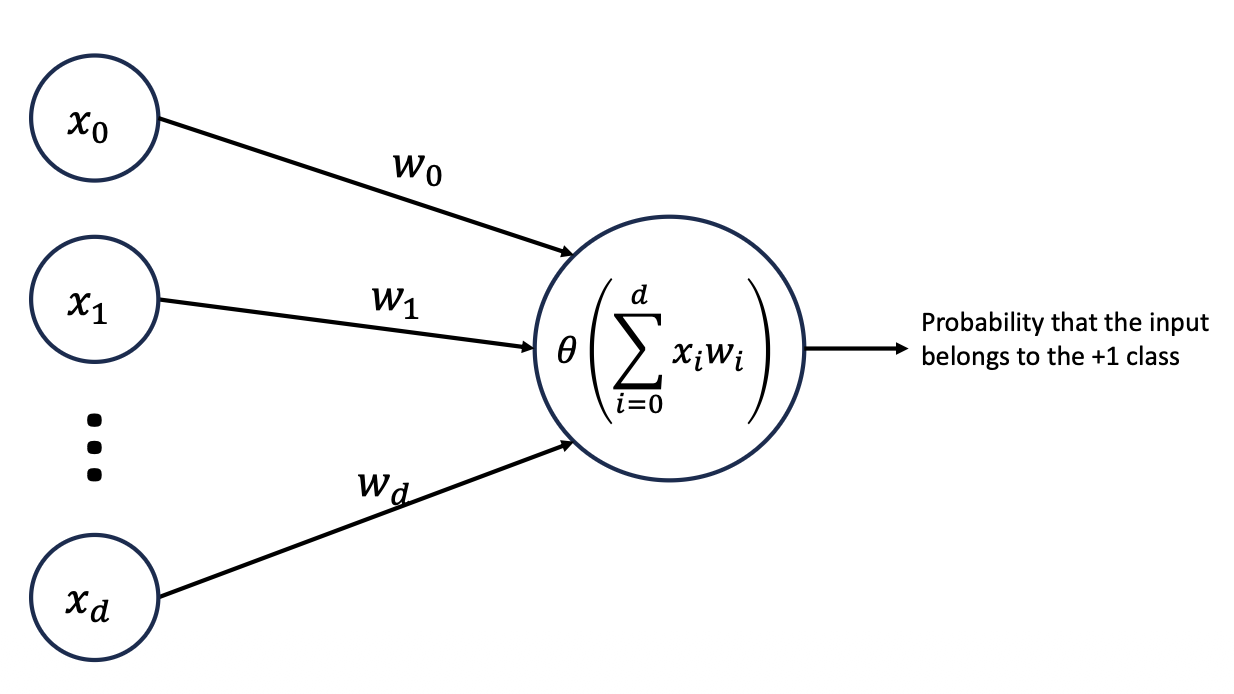

A Neural Network View

• When we try to make predictions $x_i$ will be multiplied with $w_i$
• The summation of all these multiplications yields a single number, which we then multiply by $\theta$ to get the final probability that the input belongs to the +1 class
• Note there is an input layer (the x vector), and there is an output layer (the summation), there is nothing i between, which later with a more complex neural network will.

How To Minimize $E_{\mathrm{in}}(w)$

Recall:

• The only difference from this and linear regression is that in linear regression we are minimizing $\frac{1}{N}\sum ({\hat{y}}_i-y_i{)}^2$
  • Linear regression is easy because we can just take the derivative of it (since it is a degree 2 polynomial) and will end up with the closest answer
  • But when we try to take the derivative of $E_{\mathrm{in}}(w)$ it is much harder because the derivative of $\ln$ and $e$ do not disappear completely
    • And of course the derivative will be a vector

Regression - pseudoinverse (analytic), from solving ${\mathrm{\nabla }}_{\mathrm{w}}{E}_{\mathrm{in}}(\mathrm{w})=0.$

Logistic Regression - analytic won’t work.

Numerically/iteratively set ${\mathrm{\nabla }}_{\mathrm{w}}{E}_{\mathrm{in}}(\mathrm{w})\to 0.$

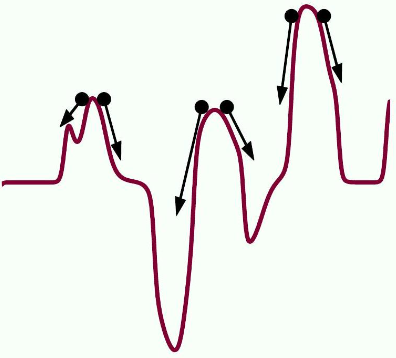

Finding The Best Weights - Hill Descent

Ball on a complicated hilly terrain rolls down to a local valley(a local minimum)

• This is a one dimensional problem (w vs. log)
• Note you can only reach the true minimum in a probabilistic sense, it is not a guarantee to be able to actually reach that point

Questions:

• How to get to the bottom of the deepest valey?
• How to do this when we don’t have gravity?

Our $E_{\mathrm{in}}$ Has Only One Valley

• Convex: just a function where you have a way to pick random two different points and the minimum will always be below that line

How to "Roll Down"?

The Math

Assume you are at weights $w(t)$ and you take a step of size $\eta$ in the direction $\hat{v}$.

1. $\eta$: A scalar of step size
2. $\hat{v}$: A unit vector of direction

We get to pick $\hat{v}$ ← what's the best direction to take the step?

Pick $\hat{v}$ to make $E_{\mathrm{in}}(\mathrm{w}(t+1))$ as small as possible.

• We are moving down the plane

The Meaning

• We write a loop, and then set a termination condition
• Note you are adding a vector times a scalar

The Gradient is the Fastest Way to Roll Down

The Taylor series expansion of a multivariate function $f(x)$ around a point a up to the second order is

Expanding $E_{\mathrm{in}}(\mathrm{w}(t+1))$ at $E_{\mathrm{in}}(\mathrm{w}(t))$ gives

The best (steepest) direction to move is the negative gradient:

• You only need to take the derivative once
• $w(t)$ is a fixed vector this time, next time is a new $w$ and so on.
• Given $E_{\mathrm{in}}$ a vector of input produces a vector of output.
• To make this clear: $E_{\mathrm{in}}$ takes a vector input, and outputs one vector. This $E_{\mathrm{in}}$ is the vector loss.

"Rolling Down ≡ Iterating the Negative Gradient"

The 'Goldilocks' Step Size

• Initially we use a larger step size, and every time you make it smaller and smaller
• Some people call this the 'learning rate'
• At the optimal point the gradient is 0, so you can use the current step to measure how close you are to this optimal point

Fixed Learning Rate Gradient Descent

• Initially we want ${\eta }_t$ to be large
  • ${\eta }_t=\eta$ $||\mathrm{\nabla }{E}_{\mathrm{in}}||$
• These two $||\mathrm{\nabla }{E}_{\text{in }}(\mathrm{w}(t))||$ will cancel and we will end up with:

Gradient descent can minimize any smooth function, for example

(logistic regression)

The Meaning

• How do we know

Stochastic Gradient Descent (SGD)

A variation of GD that considers only the error on one data point.

• Pick a random data point ($x_{\ast }$, $y_{\ast }$)
• Run an iteration of GCD on $e(w,x_{\ast },y_{\ast })$

Logistic Regression:

Advantages:

1. The ’average’ move is the same as GD;
2. Computation: fraction 1/N cheaper per step;
3. Stochastic: helps escape local minima;
4. Simple;

Comparison

• Batch Gradient Descent (BGD): Uses the entire dataset to compute the gradient of the loss function. Takes a single update step after processing all training samples.
  • If you pass through the whole data set exactly once, that is called "Epoch"
• Stochastic Gradient Descent (SGD): Updates model parameters after processing each individual training example. Does not wait for the entire dataset; updates are made immediately.
  • You computer the gradient of a single data point and then update and so on
  • It is a special case of MBGD
• Mini-Batch Gradient Descent (MBGD): A compromise between Batch GD and Stochastic GD. Divides the dataset into small batches and updates parameters after processing each batch.
  • Divide your training set in subsets and update parameters after processing each subset
