Spanning Tree Protocol Advanced
"different implementations start to work together, they are compatible and backwards compatible."
- IEEE 802.1d can take 50 sec to converge
- If there is a topology change, something happens, it can take up to 50 secs
- STP running across all your entire environment (one for all VLANS)
- 1 root for organization
- 802.1w converges faster
- "Wapid" spanning tree (faster)
- Depends on what caused the fault.
- Uses handshakes Instead of timers
- Responds to change within 6 sec
- Can reconverge in milliseconds of a physical link failure
- We have a backup path.
- An alternate path that speeds up convergence
- Cisco RPVST+
- 802.1w once per VLAN
- If you have 50 VLANs, you have 50 STP processes.
- Gives you the ability to create 50 different roots
- Proprietary
- MSTP is the standardized version.
- Multi-Instance Spanning Tree.
- 802.1w once per VLAN

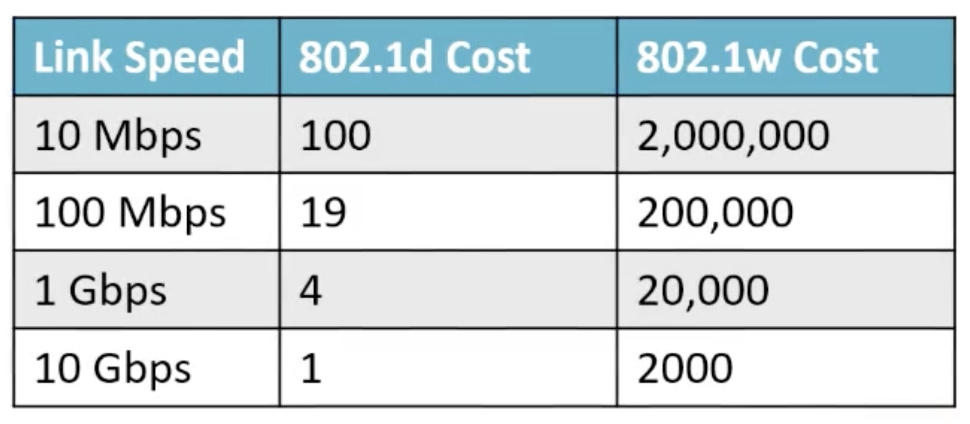

RTP Port Cost
/CAP/Network+/Visual%20Aids/Pasted%20image%2020250220160142.png)

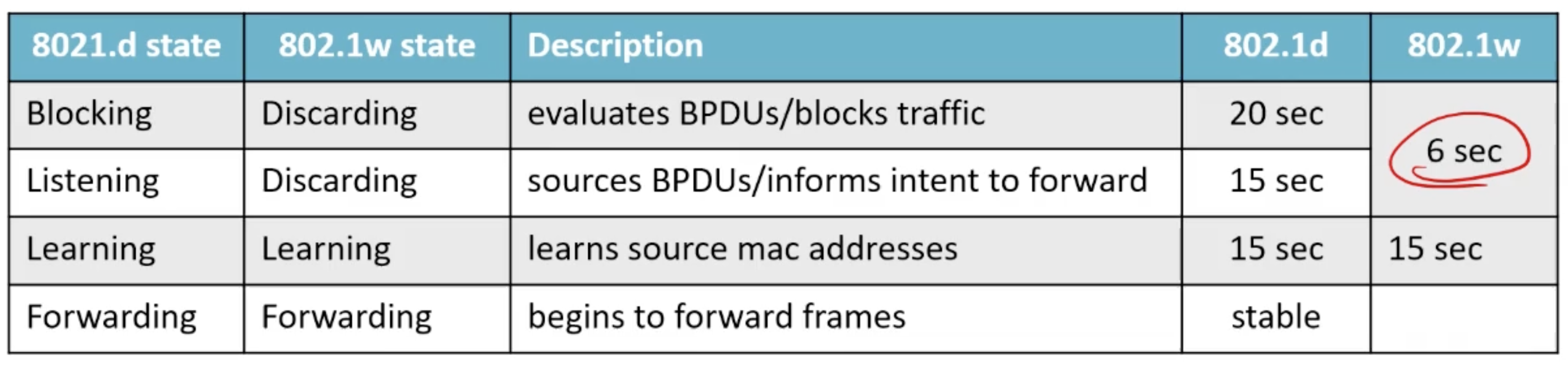

RTP Port States
/CAP/Network+/Visual%20Aids/Pasted%20image%2020250220160222.png)

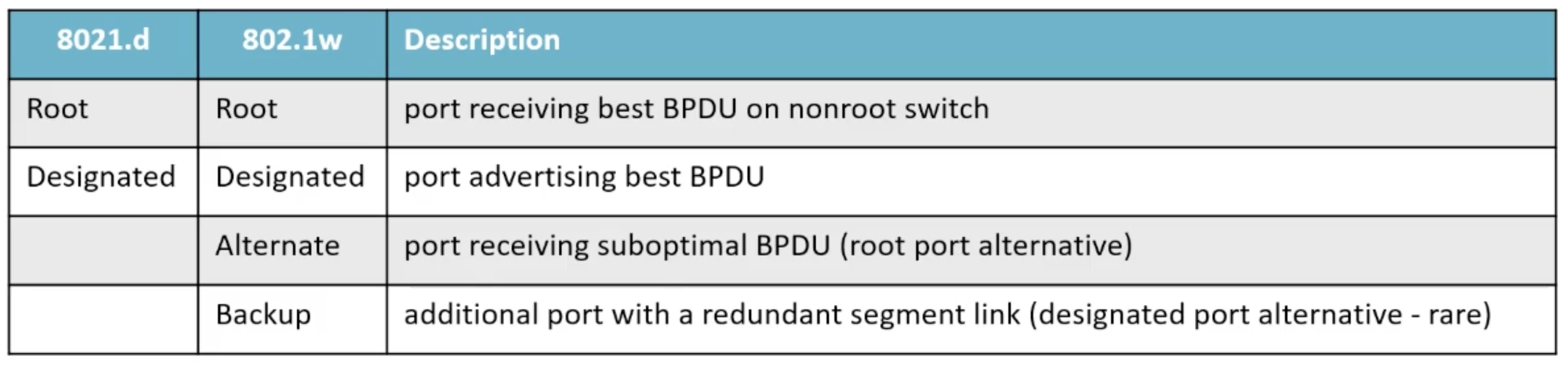

RSTP Port Roles
/CAP/Network+/Visual%20Aids/Pasted%20image%2020250220160240.png)
- A suboptimal BPDU is a 2nd place on the best path decision (The second best optimal forwarding path)

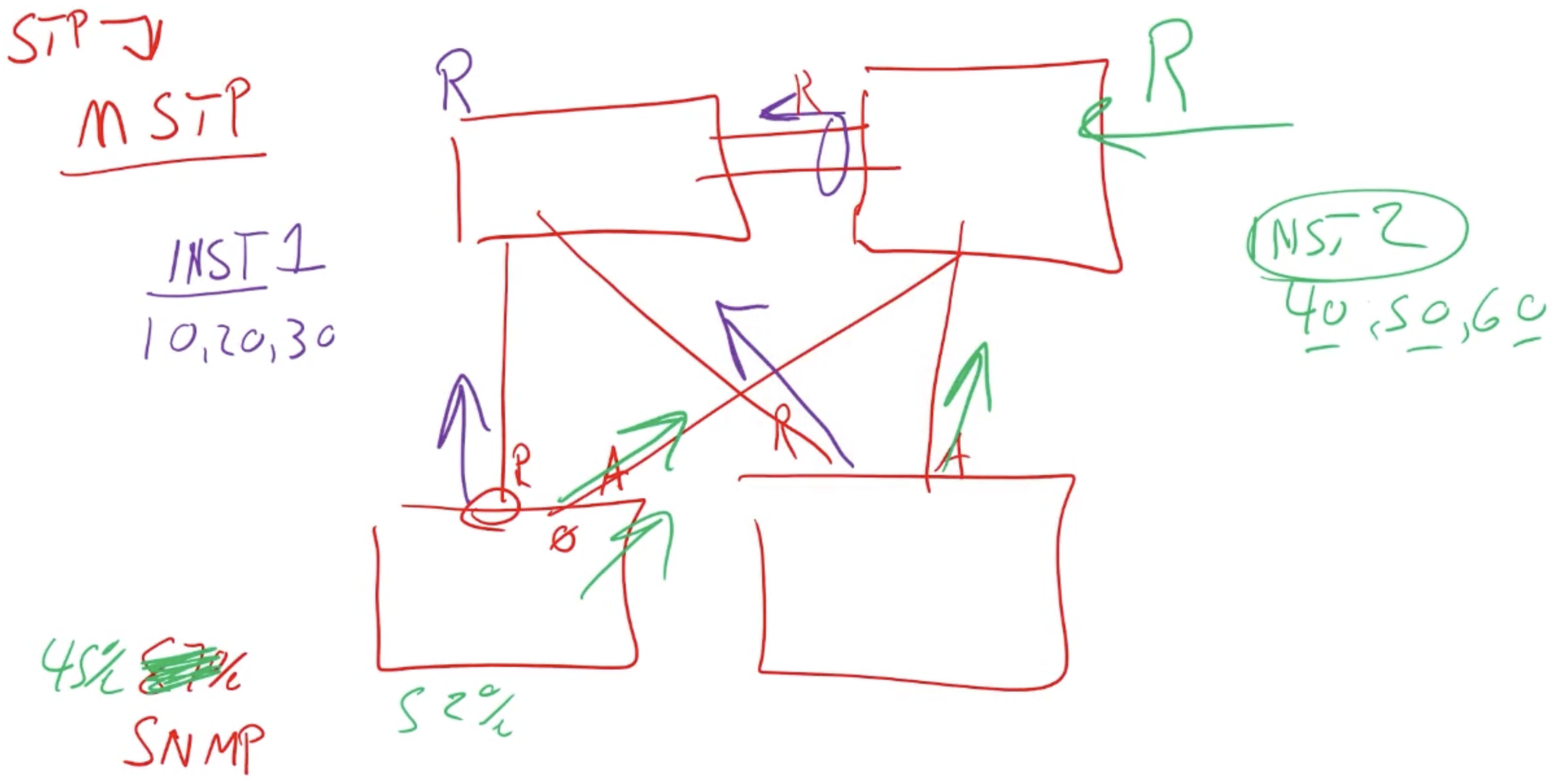

Multi-Instance Spanning Tree (MSTP)
- Open standard base successor to the original 802.1d
- Regular spanning tree may have aggregate links unused
- MSTP creates instances
- Example:
- INST1
- VLANs
- 10,20,30
- VLANs
- INST2
- VLANs
- 40,50,60
- VLANs
- INST1
- Attach VLANs to a different spanning tree process.
- For each instance tell the VLANs which is the root switch
/CAP/Network+/Visual%20Aids/Pasted%20image%2020250220161215.png)
