Wireless LAN Security

Security Set Identifier (SSID)

• Original from of network security
• Must known SSID to join the network
• Many manufacturers broadcast the SSID

Wired Equivalent Privacy (WEP)

• Hurried attempt to secure wireless communications
• Developed without cryptographic key review
• Key to join the network also used to protect data
  • Anytime you ever do something, you take that an encrypt it with the same key
  • The key was static, never changes, it was really easy to collect a lot of data, take many many packets, and analyze them in some way we can crack the key and break in.
• Key never changes
• Utilize the RC4 encryption protocol
• Numerous attacks
• No fix in sight

Wifi Protected Access (WPA)

• They were developing 802.11i
  • An attempt to enhance security
  • A specification to how to do secure wireless
• Pulled from working draft
• Temporary update while waiting for 802.11i
• Solved some of WEP's issues
• Still suffered from attacks early on
  • Temporary solution
• WPA still uses the RC4 cipher but adds a mechanism called Temporal Key Integrity Protocol (TKIP) to fix the issues with key generation.

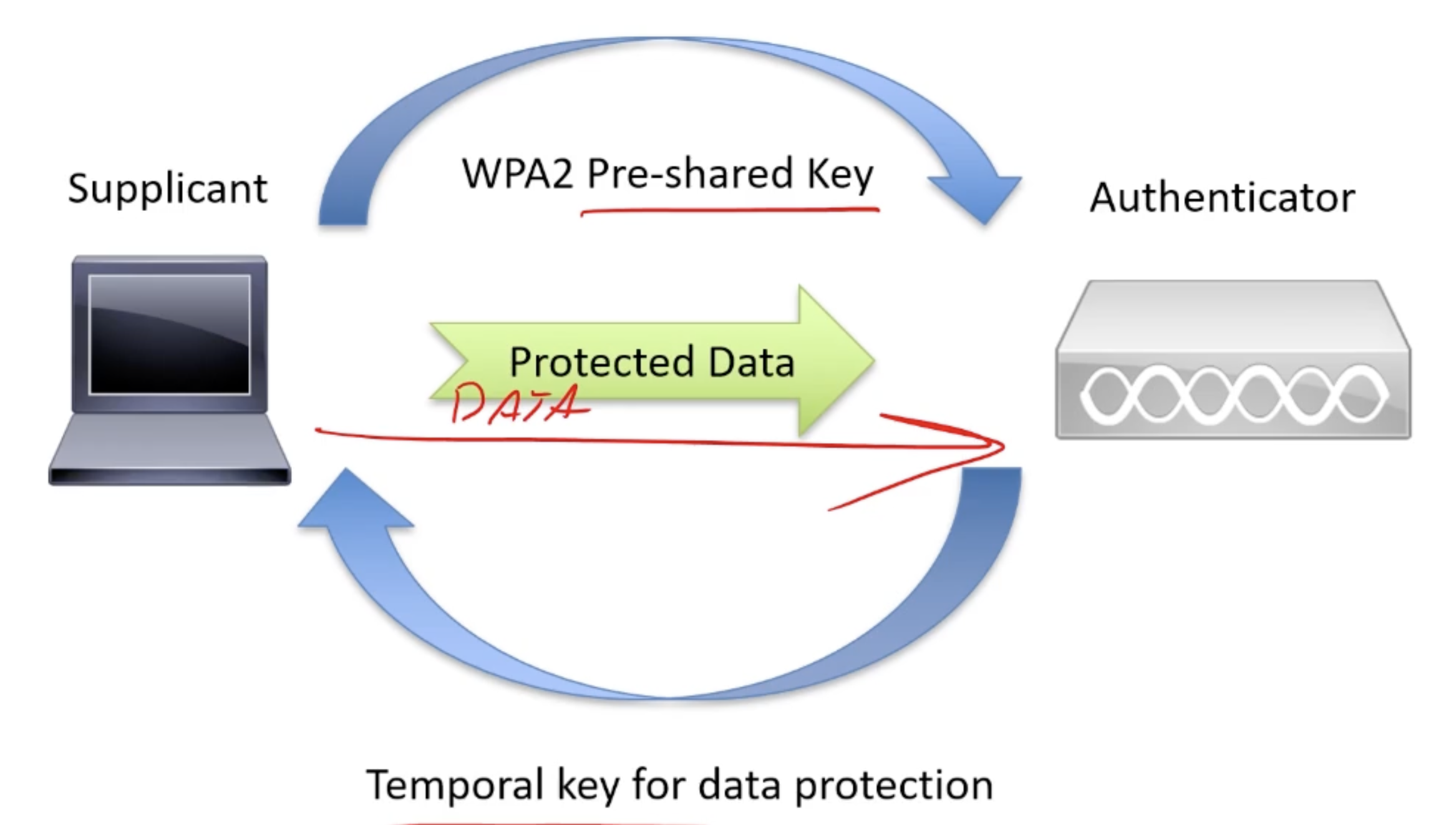

WPA2-PSK (personal) Order of operations

• WPA2-Pre-shared Keys
  • Data being encrypted
• Temporal key is gonna be used to protect our data.

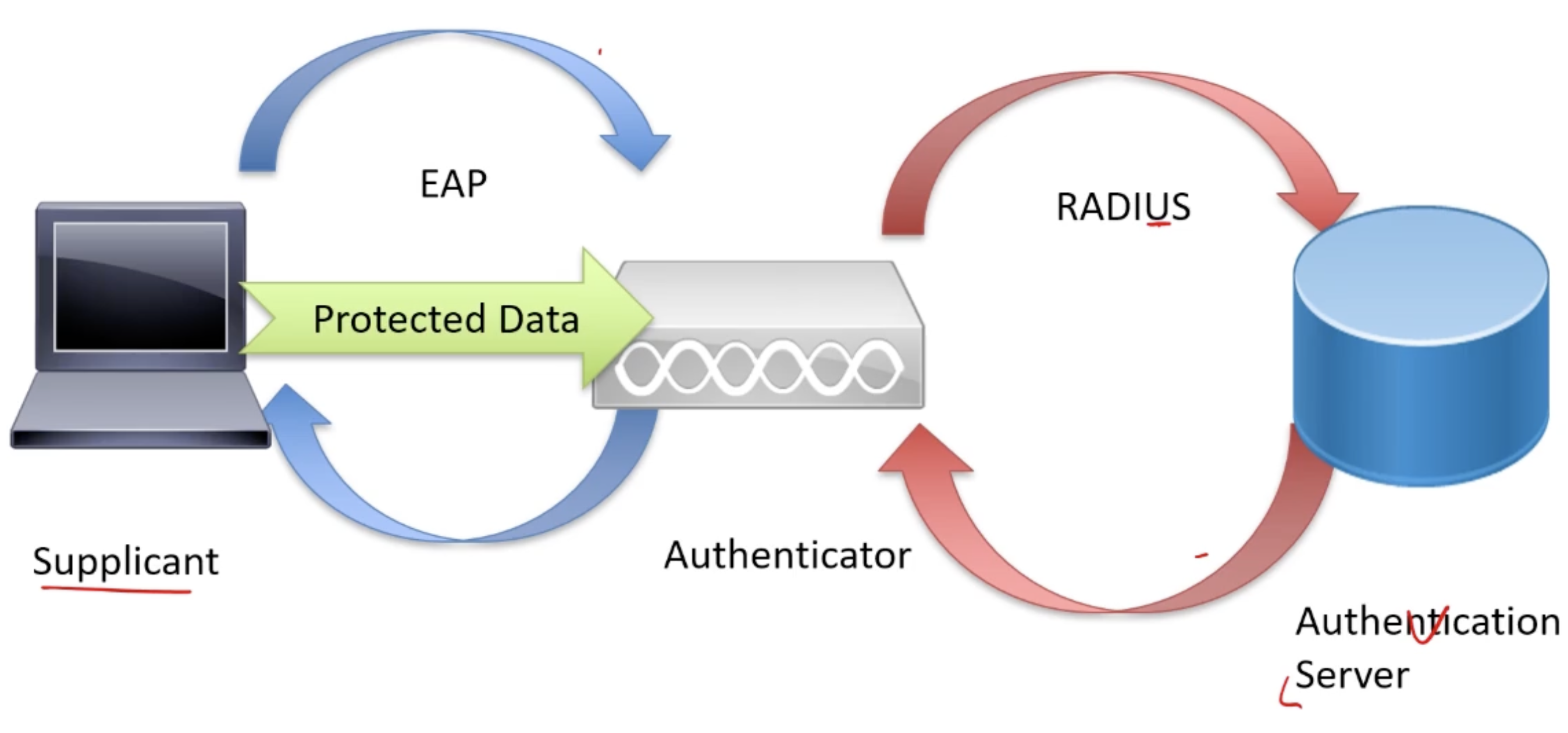

WPA2-Enterprise Order of Operations

• We got a device that wants to get on the network
  • Heres is my username and password
• We got an authenticator that the only thing that wants from the supplicant is 802.1x communication
  • Specifically the EAP, Extensional Authentication Protocol
• Then we got Active Directory
  • The Authenticator takes the EAP and sends it to AD using RADIUS.
  • If AD determines the user has the right username and password, then it will send additional Authorization information
    • Authorization is what you are allowed to do
      • It was what is called RADIUS AV (Attribute Value) pairs
      • It comes back with the appropriate profile of what you are allowed to do.
  • Then Accounting happens within the server (keeps track of logs)

Network Policy Server

• A feature pack that you can turn on on a Microsoft server
• NPS attaches a RADIUS process to Active Directory
  • If you want to get the network appliances to a users, you can put all of them into AD
  • This gives us Single-sing-On (SSO)
• RADIUS + Active Directory is the Network Policy server

Wifi Protected Access 2 (WPA2)

• 802.11i
  • Wireless Security Standard
• Pre-shared keys
  • Ubiquitous
  • Easy
• WPA2-PSK attacks
  • Capture Auth Handshake
  • You can also perform Brute Force Attacks using a GPU, guessing the password until it works
• Rainbow Tables
  • When we take passwords, we never stored them in cleartext, we always want to Hash the password
  • Take that password and hash it through a hashing algorithm (MD5, SHA1, SHA256), etc.
  • OS, Applications, databases, they should all store passwords using hashing.
  • You can take a dictionary, run it through SHA256, and creates an output
    • A rainbow table is basically like a spreadsheet of inputs with your passwords and a hash assigned to it.
  • You may do a Brute Force attack and look at this list and determine the hashes fro each.
  • How big is it?
    • Gigabytes
    • It depends on the hashing algorithms
  • You want to create a Rainbow table for every network that we connect to.
• WPA2 Enterprise mode

WPA2-CCMP vs. WPA2-TKIP

WPA2-CCMP and WPA2-TKIP are both encryption protocols used in WPA2 (Wi-Fi Protected Access 2) for securing wireless networks, but they differ in the encryption algorithms they use:

1. WPA2-CCMP (Counter Mode with Cipher Block Chaining Message Authentication Code Protocol):
   • Uses AES (Advanced Encryption Standard) for encryption, which is much stronger and more secure than TKIP.
   • Provides better data protection and is considered more secure, meeting modern security standards.
   • Commonly used in most newer Wi-Fi devices and recommended for secure networks.
2. WPA2-TKIP (Temporal Key Integrity Protocol):
   • Uses RC4 for encryption, which is weaker and has known vulnerabilities.
   • Was designed as a temporary solution to replace WEP (Wired Equivalent Privacy) but is now considered outdated.
   • Provides weaker security and is generally not recommended for modern networks.

In summary, WPA2-CCMP (AES) offers better security compared to WPA2-TKIP (RC4), and CCMP is the preferred option for secure wireless communication.

Wifi Protected Access 3 (WPA3)

• Latest and greatest
• 128 bit in Personal mode
• 192 bit in Enterprise
  • 256 bit supported
• Simultaneous Authentication of Equals
  • Similar to Diffie-Hellman exchange
  • Leverages PSK & MAC
• Hardware support limited at time of writing
  • Certification began June 2018
  • Required for WiFi 6 Certification
    • If a device has Wifi 6 capability, then it is capable of WPA3.
