Directed Broadcast

Subnet Review

10.1.1.0 /24

• Network 10.1.1.0
• First host 10.1.1.1
• Last host 10.1.1.254
• Directed Broadcast 10.1.1.255

You can send an ICMP request to 10.1.1.255 and say hey! who is awake in this network?

• This can output many many replies
• This is an amplification attack
• For a smurf attack its goal is amplification

Classic Smurf Attack

• DDoS can leverage amplification
• 1 ICMP echo request to 10.1.1.255 could generate 254 replies
• 254 : 1 return on investment
• 10.1.255.255 (65,000:1)
• 10.255.255.255 (16M:1)

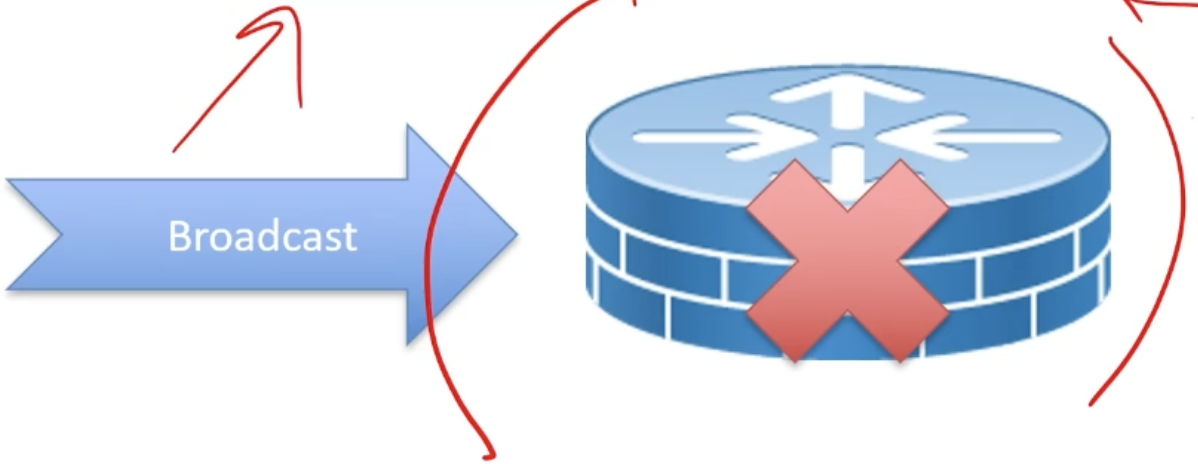

no IP directed broadcast

• Default behavior
  • Official mechanism to send a directed broadcast
  • Attackers where using it more than regular users so it was disabled.
• Directed broadcast 10.1.1.255
  • Directed, it can actually be routed
• Regular broadcast: 255.255.255.255
  • Never intended to be routed
• Alternatively could be filtered by ACL (Access Control List)
• DDoS prevention
  • Turn on and prohibit by using an extended ACL and only give access to particular users.
• Routers create separate broadcast domains
