Packet Captures

(OBJ 4.9)

Packet Capture

• Captures data going to or from a network
  • Gathers all data sent to or from a specific network device
• Can be set up on a span port to capture all data going to and from devices on the network
• Packet captures in exam are typically short snippets, not massive data dumps

Packet Capture Columns

• Number
  • Packet sequence number in the capture
• Time
  • Elapsed time since the capture started
  • Make sure to consolidate and correlate across all your devices
• Source/Destination IP Addresses
  • Show where the data is coming from and going to
• Protocol
  • Typically TCP or UDP (layer 3/4)
  • For layer 2 we usually see ARP
• Length
  • The size of the packet
• Info
  • Provides information from the packet header, including flags, sequence, window, length, MSS, source port, and destination port
  • Example:
    • [SYN] Seq=0 Win=1024 Len=0 MSS=1460 SPort=54321 DPort=80

Packet Capture Tips

• Look for patterns that indicate attack types, such as SYN floods or DDoS attacks
• Consider the relationship between source and destination IP addresses to identify the type of attack

Packet Capture Example

Example 1

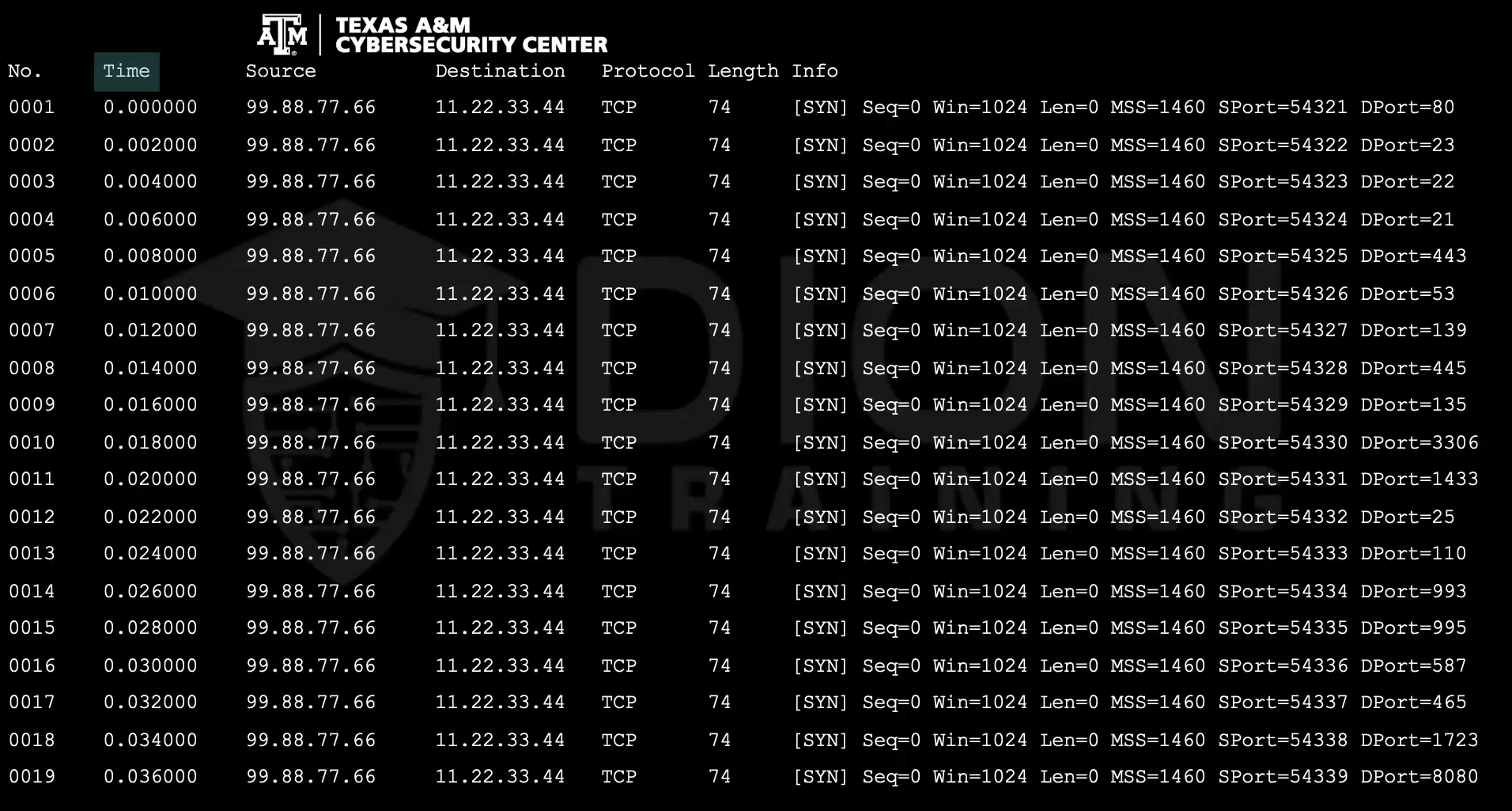

• This is actually a Port scan!
  • A port scan of the top 19 ports
    • 80, 23, 22, 21, 443, 53, 443, etc.

Example 2

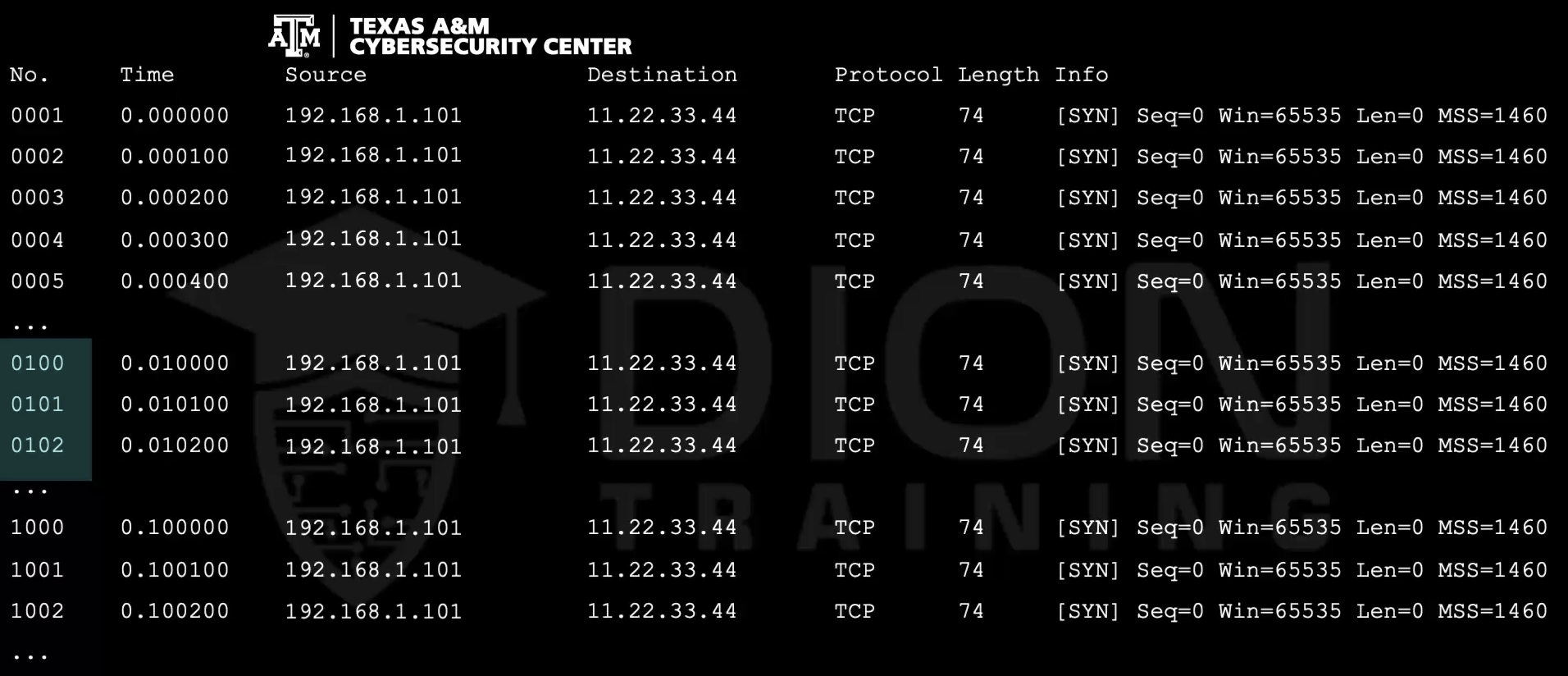

• The ... are saying that there are other packets happening but are not shown
• Whole packet captured happened within 0.1 seconds, pretty fast to get 1000 packets through
• Now we don not have ports associated with the SYN flags
• This is actually a type of DoS Attack that is called a SYN Flood
  • Note we are not seeing any acknowledgements coming back from that destination server to our source, and we're not seeing any SYN-ACKs going from our source back to our destination.
  • Attacker initiates a SYN packet for a half-open connection but does not complete the action
    • It eats up resources on destination server

Example 3

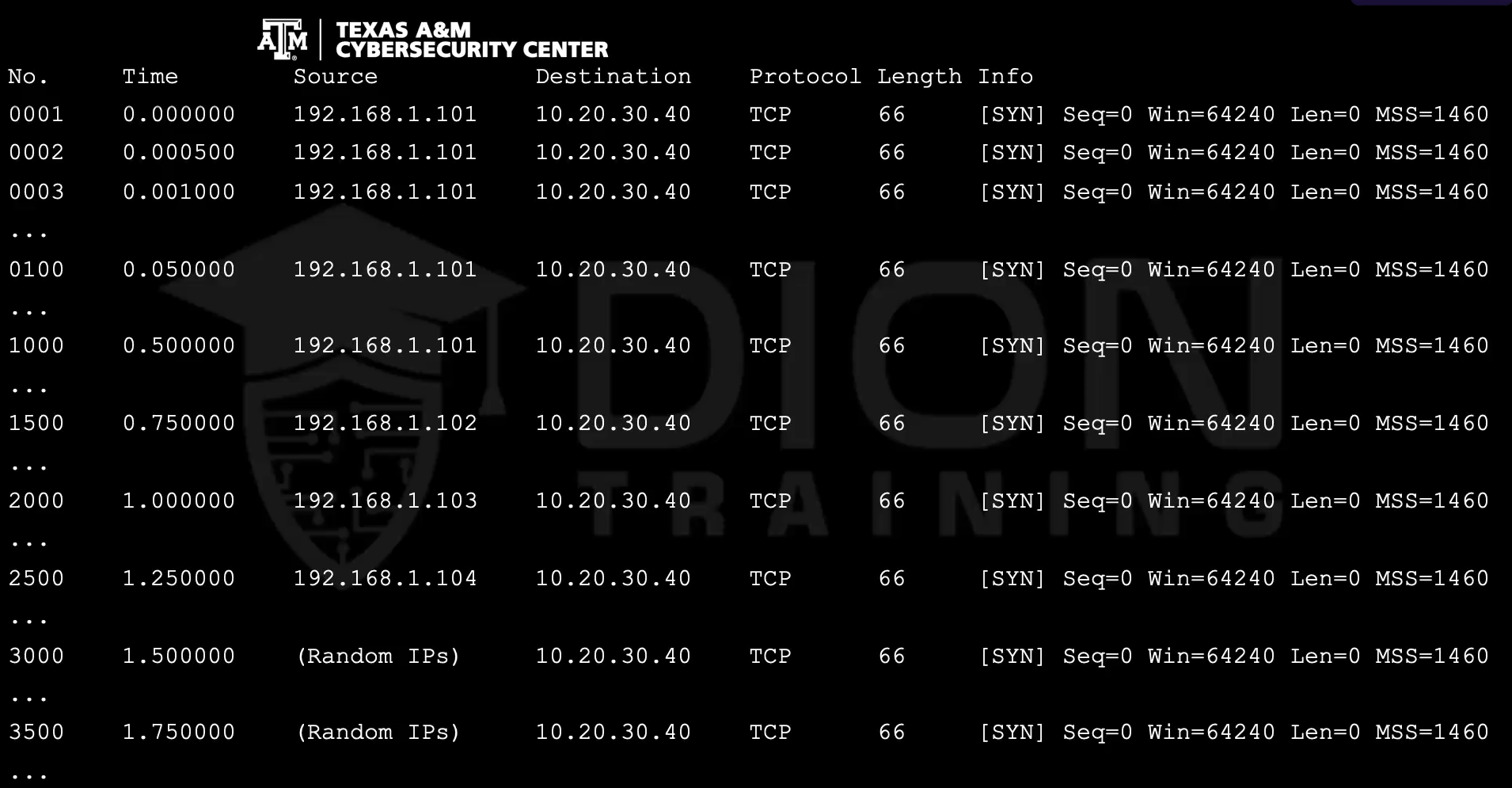

• Now we have different sources targeting the same destination IP
• Every 500 we are going to another system and using a different IP address
• This is showing us a DDoS Attack where we have multiple systems all going and attacking the same server
  • 3500 packets bing sent in about 1.75 seconds from across multiple different IP addresses
