Network Logs

(OBJ 4.9)

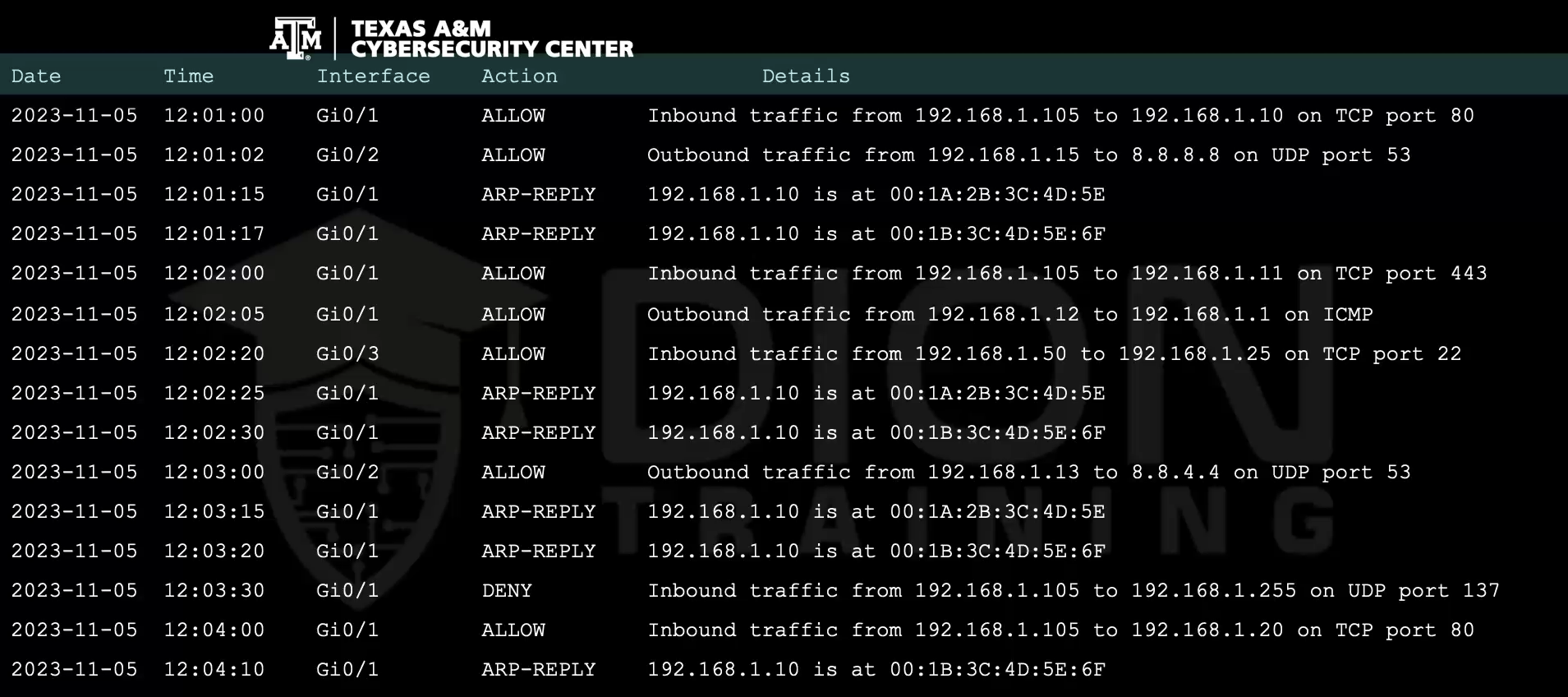

Network Log example

Network Log from a router

• Interface

  • Gi0/1, Gi0/2, or Gi0/3
    • Three ports on our router

• Action

  • ALLOW
  • DENY
  • ARP-REPLY

• Details

  • Where the traffic was coming from and going to

• The exam avoids using public IP addresses and uses private ones to prevent any misunderstandings

  • Still will be shown as public IP addresses

• Lines 3, 4, 8, 9, and 11, 12 are a little suspicious

  • Normally MAC address is hardcoded into your network adapter, and if it changes like this, somebody had to tell it to change.
  • The fact that it is changing within just a couple of seconds of each other tells us that they may be using a MAC changing software to be able to spoof their MAC address.

• Note 8.8.8.8 on UDP port 53 is totally okay since this is Google's DNS server

  • 8.8.4.4 is as Google's secondary DNS server

This is a possible ARP spoof event

• "Look for the same IP address linked to different MAC addresses"
