11 - Cloud Forensics and the Internet of Anything (IoT)

Class: CYBR-405

Notes:

Module Objectives

By the end of this module, you should be able to:

• Describe the main concepts of cloud computing
• Summarize the legal challenges in conducting cloud forensics- Explain the technical challenges associated with cloud forensics and how to acquire cloud data
• Explain how to conduct a cloud investigation and describe some of the commonly used tools
• Define the Internet of Anything
• Describe the five main categories of the Internet of Anything
• Explain the challenges of forensics in the Internet of Anything

Definition of "the Cloud"

"The Cloud is a term commonly used to describe a network of remote
servers hosted on the internet that store, manage, and process data, rather
than relying on a local server or personal computer. It allows users to
access files, applications, and services from anywhere with an internet
connection. Think of it as a virtual storage space and computing resource
that’s scalable and flexible"...Grok

An Overview of the Cloud

• Cloud computing offers many benefits to individuals and organizations
• It has introduced some unique challenges in connection with digital forensics investigations
• New standards are being developed to improve security practices and incident responses in cloud environments

Cloud Service Levels

• The National Institute of Standards and Technology (NIST) outlines three basic service levels for cloud computing:
  • Software as a service (SaaS) - applications are delivered via the Internet
    • Canvas
  • Platform as a service (PaaS) - an OS has been installed on a cloud server
    • Texas CyberRange
  • Infrastructure as a service (laaS) - customers can rent hardware and install whatever OSs and applications they need
    • Bluehost.com
• Deployment methods for a cloud include the following:
  • Public - accessible to anyone
  • Private - can be accessed only by people who have the necessary credentials
  • Community - a way to bring people together for a specific purpose
  • Hybrid - enables a company to keep some information private and designate other files as public or community information
    • Example: You have on-prem but when overload happens you automatically go to an EC2 machine

Cloud Vendors

• A cloud service provider (CSP) provides on-demand network access to a shared pool of resources
• The following are some CSPs and cloud applications:
  • Amazon Web Services (AWS)
  • Microsoft Azure
  • Google Cloud Storage
  • Citrix Hypervisor
  • Rackspace
  • Salesforce
  • Cisco Cloud Solutions

Service-Level Agreements

• A cloud service agreement (CSA) is a contract between a CSP and the cloud customer that describes what services are being provided and at what level
  • Also called a service-level agreement (SLA)
• CSAs should also specify:
  • Support options
  • Penalties for services not provided
  • Expected system performance and fees
  • Provided software or hardware
  • Customer Responsibility Matrix (CSM)
• CSP processes and procedures are detailed documents that define workflow and step-by-step instructions for CSP staff
  • They often include hardware configuration diagrams, network maps, and application processing flowcharts
  • Digital forensics examiners can use them to understand how data is stored, manipulated, secured, backed up, restored, and accessed by CSP staff and customers
• Additional documents of interest are the CSP's business continuity and disaster recovery plans

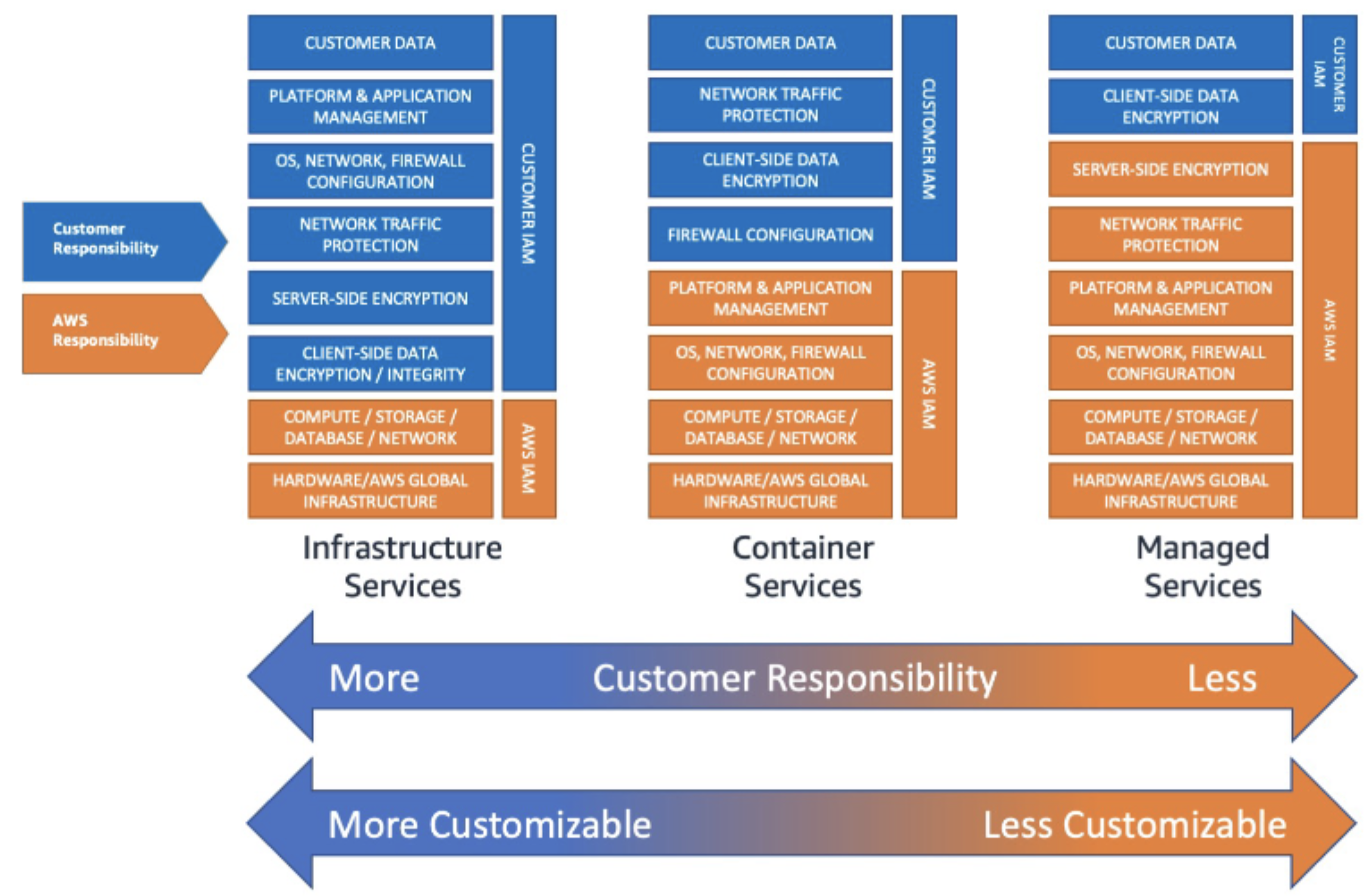

Customer Responsibility Matrix

Basic Concepts of Cloud Forensics

• Forensic tools should have the following capabilities to handle acquiring data from a cloud:
  • Forensic data collection - must be able to identify, label, record, and acquire data from the cloud
  • Elastic, static, and live forensics - must be able to expand and contract their storage capabilities
  • Evidence segregation - different businesses and users share the same applications and storage space
  • Investigations in virtualized environments - should have the capability to examine virtual systems

Notes:

• If you just need data from one user that's easy
• But when you need a whole server, there is others people data there so they won't let you see that

Jurisdiction Issues

• No law ensures uniform access or required handling procedures for the cloud
• Investigators should be concerned about cases involving data commingled with other customers' data
• Often, figuring out what law controls data stored in the cloud is a challenge
• How privacy rights are defined in different jurisdictions is a major factor in problems with the right to access data

Accessing Evidence in the Cloud

• The Electronic Communications Privacy Act (ECPA) describes five mechanisms the government can use to get electronic information from a provider:

  • Search warrants
  • Subpoenas
    • With or without prior notice to the customer
  • Court orders
    • With or without prior notice to the customer

• Search Warrant:

  • A search warrant can be used only in criminal cases and must be requested by a law enforcement officer who has evidence of probable cause that a crime was committed
  • The law requires that search warrants contain specific descriptions of what's to be seized
  • Search warrants must also describe the location of items to seize
  • It must establish how it will be carried out

• Subpoenas and Court Orders

  • Government agency subpoenas - customer communications and records can't be knowingly divulged to any person or entity
    • Used to get information when it's believed there's a danger of death or serious physical injury
  • Non-government and civil litigation subpoenas - used to produce information from private parties for litigation
  • Court orders - written by judges to compel someone to do or not do something

Technical Challenges in Cloud Forensics

• Challenges in conducting cloud forensics include the following:
  • Architecture
  • Data collection
  • Analysis of cloud forensic data
  • Anti-forensics
  • Incident first responders
  • Role management
  • Legal issues
  • Standards and training

Architecture

• No two CSPs are configured exactly the same way
• Depending on the type of cloud architecture and the SLA, customer's data could be commingled
• Most CSPs keep data storage locations confidential for security reasons
• Differences in recording procedures or log keeping can make it difficult to determine the data's origin
  • This may complicate an investigation's chain of evidence

Analysis of Cloud Forensic Data

• Analyzing digital evidence from a cloud requires verifying the data with other data and log records
• Data may need to be reconstructed to determine what actually occurred during an incident
• Examining logs can be useful to compare the modified, last access, and create (MAC) dates and times for files
• Metadata from affected files should be examined to validate file accesses

Anti-Forensics

• Destroying ESI that may be potential evidence is called "anti-forensics"
• Hackers may use specialized malware for defeating evidence collection
• Additional methods for anti-forensics:
  • Inserting malware programs in other files
  • Using encryption to obfuscate malware programs activated through other malware programs
  • Using data-hiding utilities that append malware to existing files
• Other techniques affect file metadata by changing the modify and last access times
• Changing timestamps (timestomping) can make it difficult to develop a timeline of a hacker's activities
• Calculating hash values of files and comparing the results with known good files' hash values can help identify files that might have been altered

Incident First Responders

• CSPs have personnel trained to respond to network incidents
  • They become first responders when a network intrusion occurs
• When CSPs do not have an internal first responder team, the forensics examiner should organize CSP staff to handle these tasks

Notes:

• You can now what team is running your server and ask for the credentials for that team

Standards and Training

• The Cloud Security Alliance (CSA) has developed resource documentation for CSPs and their staff
  • It provides guidance for privacy agreements, security measures, questionnaires, and more
• Cloud investigators should have an understanding of cloud architecture in addition to basic digital and network forensic skills

Acquisition in the Cloud

• Methods used to collect evidence in cloud investigations depend on the nature of the case

• Recovering deleted data from cloud storage is limited (if not impossible) depending on the type of file system the CSP uses

• With cloud systems running in a virtual environment, snapshots can give you valuable information before, during, and after an incident

  • Forensic examiners should re-create separate cloud servers from each snapshot, acquire an image of each server, and calculate a hash for all files

• Many CSPs and third parties offer encryption services for cloud users as a security measure

  • Expect to find encrypted files in cloud investigations

• You need assistance from the data owner or the CSP to decrypt data with the right encryption key

• Encrypted data in the cloud is in two states:

  • Data at rest - data that has been written to disk
  • Data in motion - data being transmitted over a network

Conducting a Cloud Investigation

• When investigating cloud incidents use the same methodical approach covered throughout this book
• The type of incident determines how to proceed with planning the investigation
• If the investigation involves searching for and recovering data from cloud storage or cloud customers
  • See modules "Data Acquisition" and "The Investigator's Laboratory and Digital Forensics Tools"

Investigating CSPs

• If a CSP has no team or limited staff, investigators should ask the following questions to understand how the CSP is set up:
  • Does the investigator have the authority to use cloud staff and resources to conduct an investigation?
  • Is detailed knowledge of the cloud's topology, policies, data storage methods, and devices available?
  • Are there any restrictions on collecting digital evidence from remote cloud storage?
• If a CSP has no team or limited staff, investigators should ask the following questions to understand how the CSP is set up (continued):
  • For e-discovery demands on multitenant cloud systems, is the data to collect commingled with other cloud customers' unrelated data? Is there a way to separate the data to prevent violating privacy rights or confidentiality agreements?
  • Is the data of interest to the investigation local or remote? If it's in a remote location, can the CSP provide a forensically sound connection to it?

Investigating Cloud Customers

• If a cloud customer doesn't have the CSP's application installed;
  • You might find cloud-related evidence in a Web browser's cache file
• If the CSP's application is installed:
  • You can find evidence of file transfers in the application's folder
  • This is usually found under the user's account folder

Understanding Prefetch Files and Artifacts

• Prefetch files contain the DLL pathnames and metadata used by an application
• The OS reads the associated prefetch file and loads its information into the computer's memory
• The OS can handle other tasks instead of waiting for an application to load needed libraries
• Example:
  • Metadata in a prefetch file contains an application's MAC times in UTC format and a counter of how many times the app has run

Examining Stored Cloud Data on a PC

• Dropbox offers third-party applications, such as e-mail, chat, Cisco WebEx, and other collaboration tools

• Since 2012, Dropbox has used base-64 format to store content

  • Reading them requires specialized software that can read and interpret the Dropbox filecache.dbx file

• Gmail users have access to Google Drive for cloud data storage and applications

• Google Drive is installed in: C:\Program Files $(x86)\mathrm{\setminus }$ Google\Drive

• Each user has a configuration file stored in C:IUsers\username\AppDatalLocallGooglelDrive

• If Google Drive has been installed, it creates a folder in the path C:IUsers\username|Google Drive

• Important Google Drive files include the following:

  • sync_config.db - an SQL database file with Google Drive upgrade number, highest application version number, and local synchronization root path
  • snapshot.db - contains information about each file accessed, the URL pathname, the modified and created dates and times in UNIX timestamp format, and the file's MD5 value and size
  • sync_log.log - has a detailed list of a user's cloud transactions

• OneDrive was created by Microsoft and was originally called SkyDrive

  • Available with Windows 8 and later
  • It is similar to Dropbox and Google Drive and offers subscription services for Microsoft software

• OneDrive stores user profiles in the user's account path

• Log files and synchronized files are kept in various places under the user's account (depending on the Windows version)

Using Cloud Forensics Tools

• The following vendors offer integrated tools that can be applied to cloud forensics:
  • OpenText EnCase Endpoint Security
  • Exterro Incident and Relief Management
• Other tools include the following:
  • Forensic Open-Stack Tools (FROST)
  • F-Response for the Cloud
  • Magnet AXIOM Cloud

Takeaway:

• Cloud is not your computer
• Commingled info
• Look at the service level agreement
• Servers can be in Russia
• You do not know who has physical access to the server or what OS they us
• Do you understand why it is so hard to do cloud forensics?
