07 - MacOS File Systems

Class: CYBR-405

Notes:

Objectives

• Describe Macintosh history and file structures
• Describe Linux file
• Use Linux forensics tools

Early days of MacOS

• They started when IBM had a monopoly
• Prof. went to K-mart and bought its first commodore to pirate and play games
• In 1990
• New Maccintouch for $28,000 (1990 dollars)
• New apple laser printer for $5,000 (1990 dollars)
• NEXT had a UNIX-based OS
• When NEXT incorporated with Apple (as Steve Jobs cambe back to Apple) the UNIX-based OS came to Mac.
• We are still using a variant of that today!

Understanding Mac Files Structures

Hierarchical File System (HFS) - Launched in 1985

• Files stored in nested directories (folders)

Hierarchical File System (HFS+) - Launched in 1998

• Introduced with Mac OS 8.1
• also called MacOS Extended
• Supports smaller file sizes on larger volumes, resulting in more efficient disk use

Apple File System (APFS) - Launched in 2017

• Introduced in macOS High Sierra
• Works on the concept of Containers and Volumes (like partitions).
• When data is written to a device, metadata is also copied to help with crash protection

Why do you think they went from HFS to HFS+?

• All of a sudden disks started getting larger and OSs couldn't handle it.

An Overview of Mac File Structures

• In Mac, a file consists of two parts:

  • Data fork and resource fork

• Data fork typically contains data the user creates, such as text or spreadsheets

  • Applications also read and write to the data fork

• Resource fork contains additional information

  • Such as menus and dialog boxes
  • Identified as ._ filename, if copied to Windows

• Resource forks are largely legacy

• Still visible when copied to Windows as ._filename

• Conceptually similar to NTFS alternate data streams

Notes:

• If you find an old Mac in a case what are you going to do? CALL AN EXPERT
• This is not how the new filesystem works on Macs anymore

Common Evidence Sources

Here are a few differences between Window and macOS file systems

Forensics Procedures 1

For forensics procedures in macOS:

• You must know where file system components are located and how both files and file components are stored

Application settings are in three formats:

• Plaintext, plist files, and the SQLite database
• Plist files are preference files for installed applications on a system
  • Kind of like registries on windows and uses SQL or SQLite databases

FileVault is used to encrypt and decrypt a user's directory

• Like BitLocker on Windows -> an encryption mechanism

Forensics Procedures 2

Keychains

• Files used to manage passwords for applications, Web sites, and other system files
• The Mac application Keychain Access enables you to restore passwords
• There is some evidence there you can try to find

Deleted files are in the Trashes folder

• If a file is deleted at the command line, however, it doesn't show up in the trash

Where stored...

• Plist files commonly stored in /Users/username/Library/Preferences
• Keychains stored in ~/Library/Keychains
• Safari history stored in SQLite databases

Forensics Procedures 3

• Acquisition Methods in macOS
• Make a forensic image of the drive
  • Tools for working with a raw format image
    • BlackBag Technologies Macintosh Forensic Software
    • SubRosaSoft MacForensicsLab
    • Guidance Software EnCase
    • Sumari Recon Mac OS X Forensics
    • X-Ways Forensics
• If all else fails...
  • Mac's Time Machine Backup can be used to create a snapshot in time of logical files.

APFS (Modern Macs)

APFS Architecture Overview

• APFS is designed for SSDs and modern storage devices
• Introduced in macOS High Sierra
• Replaces HFS+
• Built around containers and dynamically sized volumes
• Uses copy on write instead of overwriting data
• Supports snapshots and cloning
• Encryption native at the file system level

Notes:

• They came out with this to enable Solid State Drives (SSDs)
• You cannot back to an older filesystem after your files have touched APFS
• The ZED filesystem on Linux does this:
  • Makes a container and makes a container filesystem architecture
  • Inside that container you have filesystems
  • You could have different volumes, and these volumes are dynamic
  • Copy on Write (Cow) instead of overwriting data.

APFS Containers and Dynamic Volumes

• One physical disk contains an APFS container
• The container holds multiple volumes
• Volumes share a common free space pool
• Volumes grow and shrink dynamically
• No rigid partition boundaries between volumes
• Common default volumes include System, Data, Preboot, and Recovery

In NTFS, partitions are rigid. In APFS, volumes flex. They all pull space from the same container pool.

Notes:

• If you are using a volume and is not very big, there is going to be a lot of free disk space on the back of your container, that volume will shrink and deform to account for this size.
• There are set volumes on a Mac that you cannot touch.

Copy on Write (CoW) in APFS

• APFS does not overwrite existing blocks
• When data changes, new blocks are written
• Metadata is updated to reference the new blocks
• Old blocks remain until reclaimed
• Old blocks may persist until garbage collection (this can preserve historical file remnants)
• Improves crash protection and consistency
• Optimized for SSD performance

Instead of erasing old "homework", APFS writes a new version and just updates the pointer.

Notes:

• Old-blocs remain until they are released (just moves pointer)
• This requires a garbage collector architecture
• This is important for forensics

APFS Metadata Structure

• APFS uses B-trees for metadata storage
• Object map tracks block references
• No single Master File Table like NTFS
• Metadata itself uses copy-on-write
• Structure designed for crash consistency

Notes:

• Metadata also uses CoW

APFS Snapshots

• Point-in-time read-only state
• Created using copy-on-write
• Used by Time Machine and system updates
• Deleted files may persist in snapshots
• Investigators must examine snapshots

Notes:

• Time Machine is deprecated now
  • Plugin an external hard drive and go back in time, it was amazing
• If you are a MacOS expert you can make a lot of money because there is ways to get data

APFS File Cloning

• Cloning creates a new file without duplicating data blocks
• Both files initially reference the same blocks
• New blocks are written only when one file is modified
• Reduces storage duplication
• Speeds up file duplication operations

Forensics note:

• Two files may appear separate, but originally shared identical block references.
• AKA: they have the same pointer

APFS Encryption Model

• Encryption is built directly into the file system
• Supports single-key or multi-key encryption
• FileVault integrates with APFS
• Modern Macs use hardware-backed encryption
• Physical acquisition can be extremely difficult without credentials
• On Apple Silicon, encryption keys are stored in the Secure Enclave Physical imaging often impossible without credentials

Encryption is not an add-on. It is built into the architecture.

Note:

• On modern macs (apple silicon), encryption keys are stored in a special location (Secure Enclave Physical)

NTFS vs APFS vs Ext4

Notes:

• There is software to move partitions in all filesystems
• On Linux files use inodes to identify themselves

Forensic Impact of APFS Features

• Dynamic volumes complicate space analysis
• APFS separates System and Data volumes in modern macOS
• Copy on write may preserve historical data blocks
• Snapshots may contain deleted evidence
• Clones can share underlying data blocks
• Encryption often prevents physical acquisition
• Logical acquisition may be required

Notes:

• CoW have historical data blocks until garbage collection comes along

This is how the File Structure looks like in MacOS

> df -h
Filesystem        Size    Used   Avail Capacity iused ifree %iused  Mounted on
/dev/disk3s1s1   460Gi    15Gi   170Gi     9%    453k  1.8G    0%   /
devfs            201Ki   201Ki     0Bi   100%     696     0  100%   /dev
/dev/disk3s6     460Gi    20Ki   170Gi     1%       0  1.8G    0%   /System/Volumes/VM
/dev/disk3s2     460Gi    15Gi   170Gi     9%    1.9k  1.8G    0%   /System/Volumes/Preboot
/dev/disk3s4     460Gi   782Mi   170Gi     1%     547  1.8G    0%   /System/Volumes/Update
/dev/disk1s2     500Mi   6.0Mi   481Mi     2%       1  4.9M    0%   /System/Volumes/xarts
/dev/disk1s1     500Mi   6.0Mi   481Mi     2%      35  4.9M    0%   /System/Volumes/iSCPreboot
/dev/disk1s3     500Mi   2.4Mi   481Mi     1%      93  4.9M    0%   /System/Volumes/Hardware
/dev/disk3s5     460Gi   257Gi   170Gi    61%    1.8M  1.8G    0%   /System/Volumes/Data
map auto_home      0Bi     0Bi     0Bi   100%       0     0     -   /System/Volumes/Data/home
/dev/disk3s1     460Gi    15Gi   170Gi     9%    453k  1.8G    0%   /System/Volumes/Update/mnt1

Linux OS

Linux File System Philosophy

• Linux is built on UNIX design principles
• Multiuser and permission-driven
• File systems revolve around inodes
• File names are directory references to inode numbers
• Metadata stored separately from file names

Evolution of Linux File Systems

• Ext2 introduced simple inode-based design
• No journaling
• Ext3 added journaling (https://www.youtube.com/watch?v=Dchyt8cW3QI)
• Ext4 introduced extents and large partition support
• Ext4 is the modern standard

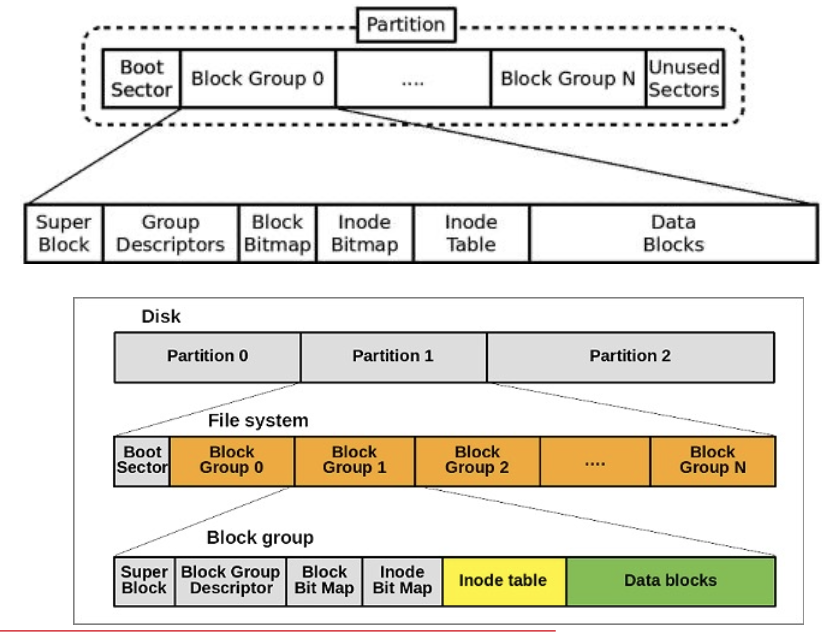

Ext4 Architecture Overview

• Boot block
• Superblock
• Inode tables
• Journaling area
• Data blocks

Notes:

• Linux uses hard partitions, it is not like macOS volumes
• If a superbock is corrupted, there is a potential that the disk does not move

The Superblock

• Contains file system size and geometry
• Tracks free blocks and inodes
• Critical for mounting the file system
• Backup superblocks exist across the disk
• Multiple backup superblocks are distributed across the file system

Forensic note:
Corrupted superblock can prevent mounting but recovery may still be possible using backups.

Notes:

• Knows how many blocks are free
• If it gets corrupted it is going to be a problem
• There are some backup superblocks

inodes - the Heart of Linux

• Every file has an inode
• Stores metadata: permissions, owner, timestamps, size
• Contains pointers to data blocks
• Does not store file name
• Inodes are pre-allocated when the file system is created

Important concept:

• Directories map names to inode numbers.

Notes:

• This is the heart of Linux
• These are pointers to data blocks
• inode is fix-length
• Stores 16 different addresses (pointers)
  • 12 Direct pointers
  • x2 Indirect
  • x3 Indirect

Ext4 Extents

• Extents replace older block mapping system
• More efficient for large files
• Reduces fragmentation
• Improves performance
• Extents describe contiguous ranges of blocks instead of individual block pointers

Journaling in Ext3 and Ext4

• Journaling records intended metadata changes
  • Ext4 journals metadata, not necessarily full file data
• Helps recover after crash
• Does not necessarily preserve old data blocks
• Journal is temporary

Forensics angle:
Journal may contain remnants of recent metadata activity.

Notes:

• Remember journals contain data as well, this is key for digital forensics people
• There are ctf challenges that have flags on journaling

Deleted File Behavior in Linux

• Deleting a file removes directory entry
• Inode may remain until reused
• Data blocks may persist until overwritten
• File carving possible

NOTE: If inode and data blocks are not overwritten, recovery is possible

Notes:

• File carving is possible
• Data blocks stay there until overwritten

Linux vs NTFS vs APFS

NTFS → Centrailized MFT-based
APFS → Container-based and Copy-On-Write (COW)
Ext4 → Inode based + journaling

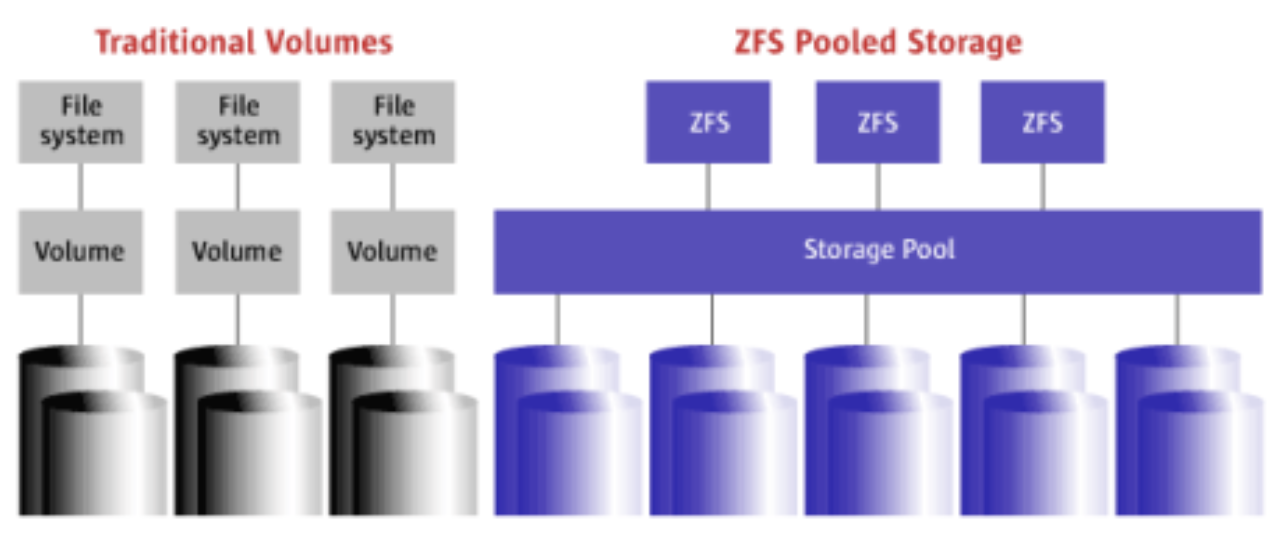

Introduction to ZFS

ZFS is not the default Linux file system.
Ext4 still dominates most Linux distributions.

However:
ZFS is widely used in

• Enterprise storage
• Forensic labs
• NAS systems (including TrueNAS)
• FreeBSD
• Proxmox
• Some Ubuntu deployments

And architecturally, it is very similar to APFS in some ways.

Notes:

• This is basically just like Mac's APFS
• It is used mostly on servers or NAS systems
• FreeBS uses as well (it is a flavor of linux)
• Proxmox uses ZFS
  • Open source version is XCP
  • Proxmox is not stable but it is small, fast, etc.
    • Runs containers and VMs at the same time on the same network
  • XCP does not run containers natively, you need to run them on a VM
  • If you run a container that uses your system resources

ZFS

• ZFS is a modern advanced file system and volume manager
• Originally developed by Sun Microsystems
• Common in FreeBSD, TrueNAS, enterprise Linux
• Uses copy-on-write architecture
• Designed for data integrity and reliability

Notes:

• Sun Microsystems:
  • Stanford University Networking Microsystems
  • Java came from Sun!

ZFS Storage Model

• Uses storage pools instead of partitions
• Pools (zpools) contain datasets
• Datasets can have independent properties
• Space dynamically allocated within the pool

• This mirrors APFS containers conceptually

ZFS Copy-on-Write

• Never overwrites live data
• Writes new blocks and updates pointers
• Snapshots are lightweight and fast
• Prevents corruption during crashes

ZFS Data Integrity Model

• Every block is checksummed
• Checksums are stored separately from data
• Detects silent corruption (bit rot)
• Can self-heal when redundancy exists

Notes:

• It can self-heal itself if a file is corrupted
• Uses checksum to verify data

ZFS vs Ext4

• Ext4 uses journaling
• ZFS uses copy-on-write
• Ext4 does not checksum all data blocks
• ZFS provides end-to-end data integrity

IMPORTANT:

• Ext4 is default in most Linux distributions.
• ZFS is powerful but not default.

Summary

• UNIX was created to be a multiuser, multithreaded, secure OS

• The Linux kernel is usually packaged with other software components, such as a GUI and applications

• Linux supports a wide range of file systems

• UNIX and Linux have four components defining the file system: boot block, superblock, inode block, and data block

• Linux forensic tools are often freeware

• Before macOS, the file systems HFS and HFS+ were used

• In older version of macOS, a file consists of two parts: a data fork and a resource fork

• A volume is any storage medium used to store files

• Plist files are preference files for installed applications on a macOS system

• The biggest challenge in acquiring images from macOS systems is often physical access to the drive
